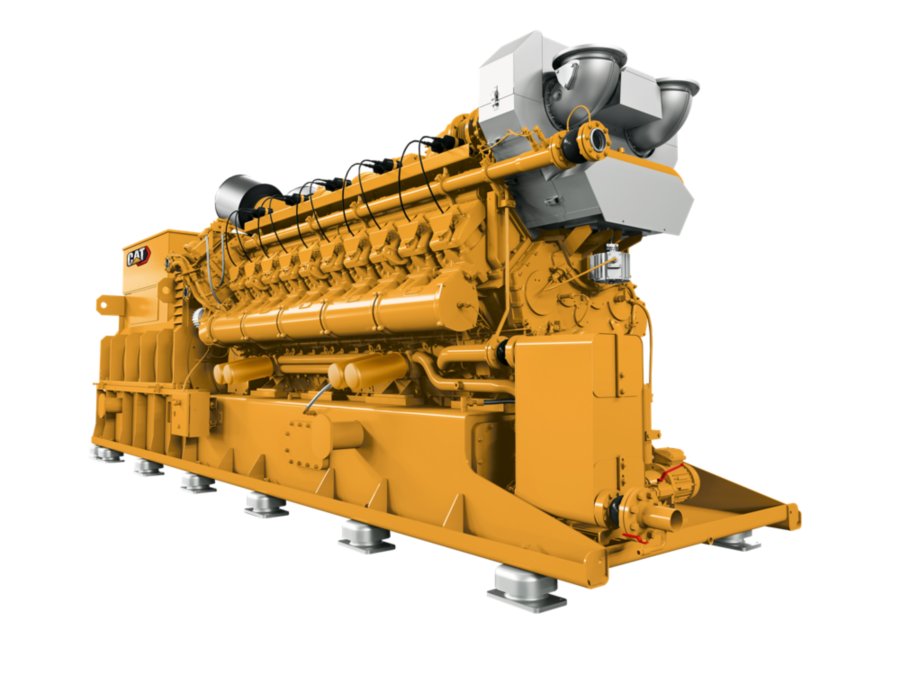

CG170B-20, Computer Rendered Image
CG170B-20, Rear Right View
CG170B-20, Rear Left View
CG170B-20, Front Right View
CG170B-20, Front Left View
Gas generator sets

CG170B-20

State-of-the-art components providing more power: the compact design, a focus on a wide range of applications and highest efficiency values of its class make sure of that. Managed by a smart and secure control system, the new CG170B series offers the optimal balance between profitability and reliability.

  • Frequency50/60 Hz
Have questions about this product?
Request a Quote
800.768.4200
Generator Set Specifications
Continuous Rating 2300 ekW @1.0pf
Fuel Type Natural Gas, Biogas, Coal Gas, Hydrogen Blend (up to 25%)
Maximum Electrical Efficiency 45.00%
Maximum Standby Rating 2300
Frequency 50/60 Hz
RPM 1500 rpm
Engine Specifications
Engine Model CG170B-20
Aspiration TA
Bore 6.7 in
Stroke 7.7 in
Generator Set Dimensions
Length 258 in
Width 67 in
Height 89 in
Dry Weight - Genset 47377 lb

Air Inlet

  • One-element single-stage air cleaner with enclosure and sevice indicator
  • Turbocharger with a water-cooled bearing case for all cylinder

Control Panels

  • TPEM (Total Plant & Energy Management System)

Cooling

  • Jacket water and SCAC thermostats
  • flange connections for JW inlet and outlet
  • ANSI/DN customer flange connections for JW inlet and outlet
  • Electrical jacket water and aftercooler coolant pump

Exhaust

  • PEARL/Low resistence exhaust system
  • Exhaust waste gate for the CG170B-20
  • Closed crankcase ventilation system

Fuel system

  • Pre-chamber spark plugs
  • Electronic fuel metering valve
  • Independently controlled cylinder monitoring and ignition system

Generator

  • Busbar connections
  • Winding temperature detectors
  • grid code generator
  • Reactive droop
  • 3-phase sensing and KVAR/PF control
  • Anti-condensation space heater
  • closed-coupled generator result in no torque transmission to the base frame

Starting/Charging

  • 24V starting motors
  • Battery disconnect switch

General

  • Crankshaft vibration damper and guard
  • CG170B Model Series Brochure
    application/pdf
    Download ↓
  • Electric Power Rating Guide
    application/pdf
    Download ↓
  • Gas Generator Set 50 and 60 Hz Ratings Guide
    application/pdf
    Download ↓
Need installed dimensions with enclosure and tank? See Model Configurations
