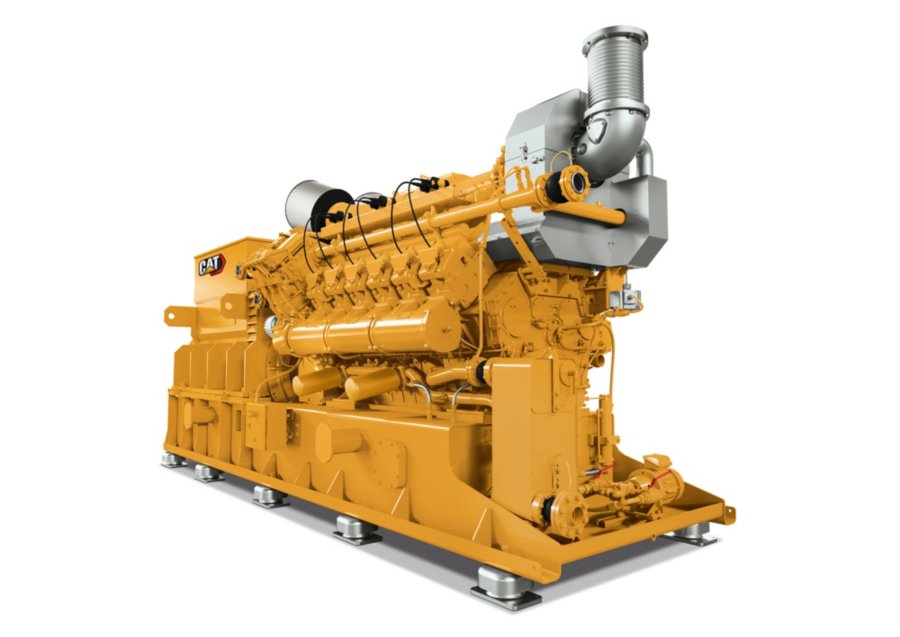

CG170B-12
CG170B-12 Front Right View
CG170B-12 Rear Right View
CG170B-12 Rear Left View
CG170B-12 Front Left View
CG170B_V12
Gas generator sets

CG170B-12

State-of-the-art components providing more power: the compact design, a focus on a wide range of applications and highest efficiency values of its class make sure of that. Managed by a smart and secure control system, the new CG170B series offers the optimal balance between profitability and reliability.

  • Frequency50 Hz
Have questions about this product?
Request a Quote
800.768.4200
Generator Set Specifications
Continuous Rating 1380 ekW @1.0pf
Fuel Type Natural Gas, Biogas, Coal Gas, Hydrogen Blend (up to 25%)
Maximum Electrical Efficiency 45.00%
Maximum Standby Rating 1380
Frequency 50 Hz
RPM 1500 rpm
Engine Specifications
Engine Model CG170B-12
Aspiration TA
Bore 6.7 in
Stroke 7.7 in
Generator Set Dimensions
Length 200 in
Width 67 in
Height 86 in
Dry Weight - Genset 28440 lb

Air Inlet

  • One-element single-stage air cleaner with enclosure and sevice indicator
  • Turbocharger with a water-cooled bearing case for all cylinder

Control Panels

  • TPEM (Total Plant & Energy Management System)

Cooling

  • Jacket water and SCAC thermostats
  • ANSI/DN customer flange connections for JW inlet and outlet
  • Electrical jacket water and aftercooler coolant pump
  • flange connections for JW inlet and outlet

Exhaust

  • Exhaust waste gate for the CG170B-12
  • PEARL/Low resistence exhaust system
  • Closed crankcase ventilation system

Fuel system

  • Pre-chamber spark plugs
  • Electronic fuel metering valve
  • Independently controlled cylinder monitoring and ignition system

Generator

  • Reactive droop
  • closed-coupled generator result in no torque transmission to the base frame
  • Winding temperature detectors
  • Busbar connections
  • grid code generator
  • Anti-condensation space heater
  • 3-phase sensing and KVAR/PF control

Starting/Charging

  • 24V starting motors
  • Battery disconnect switch

General

  • Crankshaft vibration damper and guard
