Gas generator sets

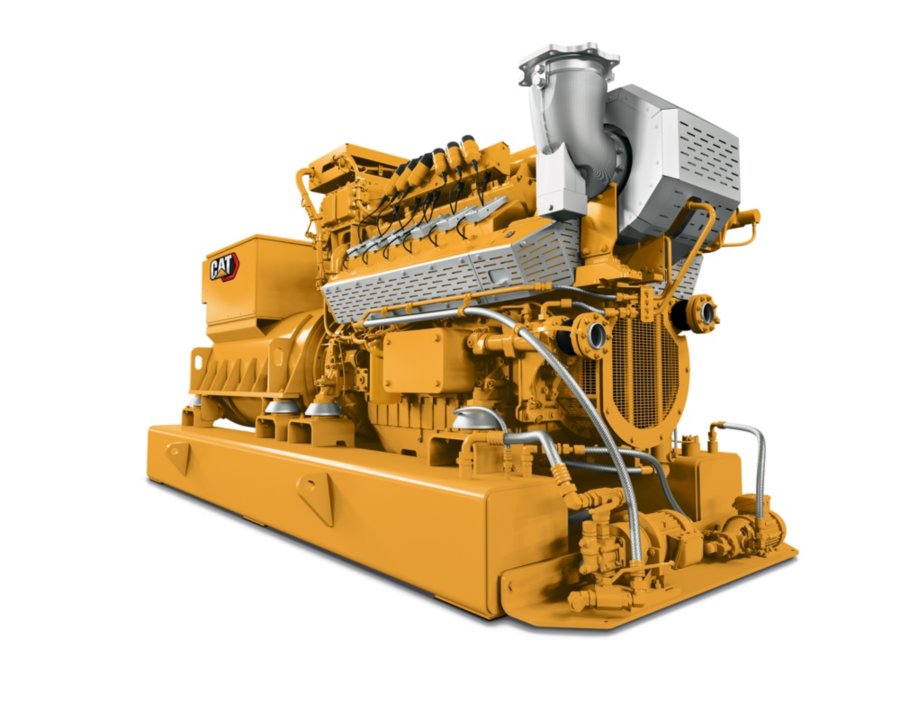

CG132B-12
The Cat CG132B family of gas engines are perfectly tailored to the challenges of the power plant in an age of global value chains.
- Frequency50 / 60 Hz
| Continuous Rating | 600 kW @1.0pf |
|---|---|
| Fuel Type | Natural Gas, Biogas, Hydrogen Blend (up to 25%) |
| Maximum Electrical Efficiency | 43.3% / 42.4% |
| Maximum Standby Rating | 600 kW |
| Frequency | 50 / 60 Hz |
| RPM | 1500 / 1800 rpm |
| Engine Model | CG132 |
|---|---|
| Displacement | 1604.9 in³ |
| Aspiration | TA |
| Bore | 5.2 in |
| Stroke | 6.3 in |
| Length | 151 in |
|---|---|
| Width | 70 in |
| Height | 85 in |
| Dry Weight - Genset | 15432 lb |
Air Inlet
- One-element single-stage air cleaner with enclosure and sevice indicator
- Turbocharger with a water-cooled bearing case for all cylinder
Control Panels
- TPEM (Total Plant & Energy Management System)
Cooling
- ANSI/DN customer flange connections for JW inlet and outlet
- flange connections for JW inlet and outlet
- Jacket water and SCAC thermostats
- Electrical jacket water and aftercooler coolant pump
Exhaust
- Exhaust waste gate for the CG132B-16
- Closed crankcase ventilation system
- PEARL/Low resistence exhaust system
Fuel system
- Independently controlled cylinder monitoring and ignition system
- Electronic fuel metering valve
- Pre-chamber spark plugs
Generator
- Reactive droop
- grid code generator
- closed-coupled generator result in no torque transmission to the base frame
- Busbar connections
- Winding temperature detectors
- Anti-condensation space heater
- 3-phase sensing and KVAR/PF control
Starting/Charging
- 24V starting motors
- Battery disconnect switch
General
- Crankshaft vibration damper and guard
-
Download ↓Electric Power Ratings Guide
-
Download ↓Gas Generator Set Ratings Guide
-
Download ↓Download CG132B Model Series Brochure
Need installed dimensions with enclosure and tank? See Model Configurations
