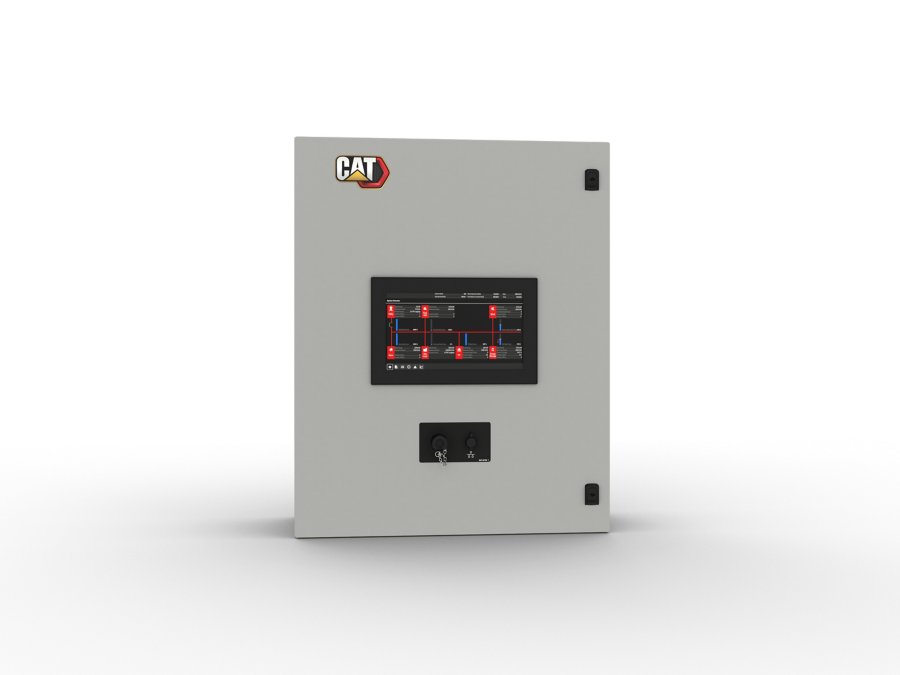

Cat® Energy Control System (ECS) 400

The Cat® ECS 400 integrates advanced site controls for both traditional and hybrid microgrid systems. The Cat ECS ensures precise management of generation assets with operational reliability and optimized cost effectiveness. The system features a user-friendly and intuitive 396 mm (15.6”) color touchscreen interface.

Have questions about this product?
Request a Quote
800.768.4200
Technical Summary
Application The Cat ECS 400 is used in a variety of microgrids where the Cat ECS 400 is configurable to meet applicable site-specific asset requirements.
Module Type Monitoring / control and asset optimization may be configured with up to 32 Distributed Energy Resources (DER's).
Environmental Parameters
Enclosure Rating NEMA 1 wall mountable

Applicable Codes and Standards

  • UL 508A; Note codes may not be available in all model configurations. Please consult your local Cat dealer for availability.
  • NEMA Type 1
  • SunSpec® Compliant

Standard Components

  • Best Battery Diode (BBD) for backup power supply.
  • Managed switch that offers configurable site communication and enhanced security provision to assure network integrity. One ethernet (4-Wire) port connection for customer networking of DER's.
  • Telematics PLE702 (See LEHE22212) allows data logging of 300 channels for 1.5 days (requires subscription for visualization).

Input/Output Ethernet Modules

  • Supports expanded Inputs/Outputs (IO) capability of the Cat ECS 400 control: - Analog & digital I/O - Temperature sensing (RTD).
  • Configure I/O for any event (read & write function).
  • Interface with a single ATS and other relays that allows load shed/load add with up to eight (8) load breakers.
  • Package mounted and/or ship loose options (See LEHE22466).

Control Modes | Auto | Grid Connected - Sub-modes (16):

  • Unplanned Islanding or Emergency standby - Closed transition (with soft unload) or Open transition
  • Planned Islanding or Intentional islanding
  • Load sense/load demand - Based on asset priority or engine-hour balancing - Automatically matches on-line asset capacity to the loads
  • Load shed/load add - Automatic or manual load shed up to eight (8) stages
  • Utility parallel, import power from grid - Minimum import kW setpoint is maintained
  • Utility parallel, export power to grid -Target export setpoint is maintained
  • Utility parallel, base load operations
  • Economy mode - All Gensets and non-renewable "fuel consuming" assets OFF
  • Reliability mode - At least one high priority "fuel consuming" asset ON
  • Scheduling - 5 schedules and 6 segments - BESS dispatch scheduling based on year, month, time, day and segment of day - 5 schedules and 6 segments - Import and export scheduling for active and reactive power based on time, day and segment of day
  • Load smoothing mode - Non-stable load dispatch using available assets for specified durations of time
  • 3 Flexible efficiency modes 1, 2 and 3 that may be set up based on asset group priorities
  • Pro-active add and drop - Ability to manually bring additional gensets online in anticipation of bringing on large loads. - Manually turning off gensets instead of waiting for LSLD drop when the customer knows large loads are being taken offline
  • Grid Reactive Control mode - There are 4 available reactive power control settings - Constant VAr, Constant PF, Volt-VAr curve, Watt-VAr curve.

Control Modes | Auto | Off-Grid (Island) - Sub-modes (7):

  • Pro-active add and drop - Ability to manually bring additional gensets online in anticipation of bringing on large loads - Manually turning off gensets instead of waiting for LSLD drop when the customer knows large loads are being taken offline

Control Modes | Manual |

  • Communications, power allocation test mode for site commissioning. Manually control assets and the microgrid system.

Control Modes | Idle |

  • Monitoring only - Cat ECS 400 relinquish control to another site controller.

Control Modes | Off |

  • Off

Cat Remote Breaker Control

  • Utility Protection Functions - American National Standards Institute (ANSI) - Over / Under Voltage (59 / 27) - Over / Under Frequency (81O / U) - Rate of Change of Frequency (ROCOF) (81R) - Sync check (25).
