Electric power controls

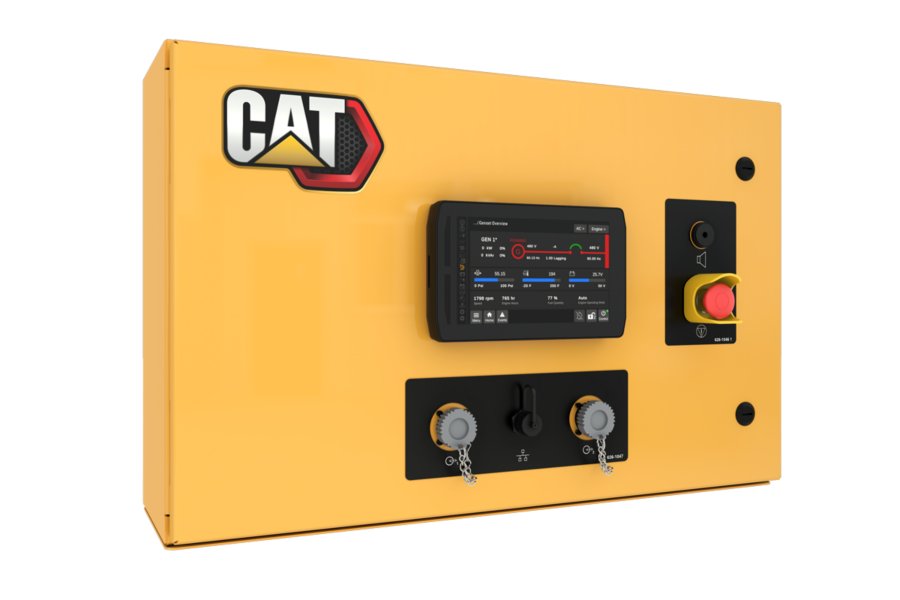

Cat® Energy Control System (ECS) 100
The Cat® ECS 100 control panel provides all of the controls and system indicators in one easy to access interface.
Control
- Auto/Start/Stop
- Emergency stop
- Engine cooldown timer
- Engine cycle crank
- Programmable cycle timer
- Speed and voltage adjust
Generator Monitoring
- Generator AC voltage monitoring (+/- 0.25% accuracy)
- Utility AC voltage monitoring (+/- 0.25% accuracy)
- 3 phase/4 wire (L-L & L-N) sensing
- Generator current sensing (3 phase/6 wire) (+/- 0.25% accuracy)
- Generator AC current (per phase and average)
- Generator frequency
- kWh, kVArh and import and export kVAh (total and trip)
- Generator stator and bearing temperature (with optional RTD module)
- kW load histogram
Generator Protection
- Generator phase sequence (47G)
- Over/Under voltage (27/59)
- Over/Under frequency (81 O/U)
- Overcurrent timed and inverse (50/51)
- Overcurrent (thermal damage curve) (51)
- Reverse power real (kW) (32)
- Reverse power reactive (kVAr) (32RV)
- Current balance (46)
- Overload (49)
Engine Monitoring
- Engine oil pressure (psi or kPa)
- Engine oil temperature (°C or °F)
- Engine coolant temperature (°C or °F)
- Engine speed (RPM)
- Battery voltage
- Crank attempt and successful start counter
- Run hour meter
- Real time clock
Engine Protection
- Control switch not in auto (alarm)
- Low oil pressure
- High coolant temperature (alarm and shutdown)
- Low coolant temp (alarm)
- Low coolant level (alarm and shutdown)
- High engine oil temp (alarm and shutdown)
- Low/High/Weak battery voltage
- Fail to start
- Overspeed
- Overcrank
- Low gas pressure (alarm and shutdown)
Communications
- Primary and accessory CAN data link
- Remote annunciator data link
- Cat Data Link - with optional PLE702
- Ethernet (Modbus TCP/IP) - 100 baseT
- USB touchscreen display
- 4x 4-wire ports/managed switch (for internal and customer use)
- 2x 2-wire ports: internal device network
Inputs & Outputs
- Digital Inputs: Emergency stop
- Digital Inputs: Remote start
- Digital Inputs: 16 programmable inputs (generator set configuration may affect available features)
- Digital Outputs: 12 programmable outputs (total)
- Digital Outputs: Up to 2 programmable outputs for functional safety
- Analog Outputs: 2 analog outputs
- PWM Outputs: 3 total (1 for IVR - standard)
- Analog Inputs: 3 programmable inputs 0-5V or resistive (generator set configuration may affect available features)
Language Support
- Multi-Language support
Environmental
- Control Module Box
- Operating Temp: -40°C to +85°C (Storage Temp: -55°C to +85°C)
- Ingress Protection: IP66 (HMI Touchscreen from the front)
-
Download ↓Cat ECS 100 Control Panel
Need installed dimensions with enclosure and tank? See Model Configurations
