Electric power controls

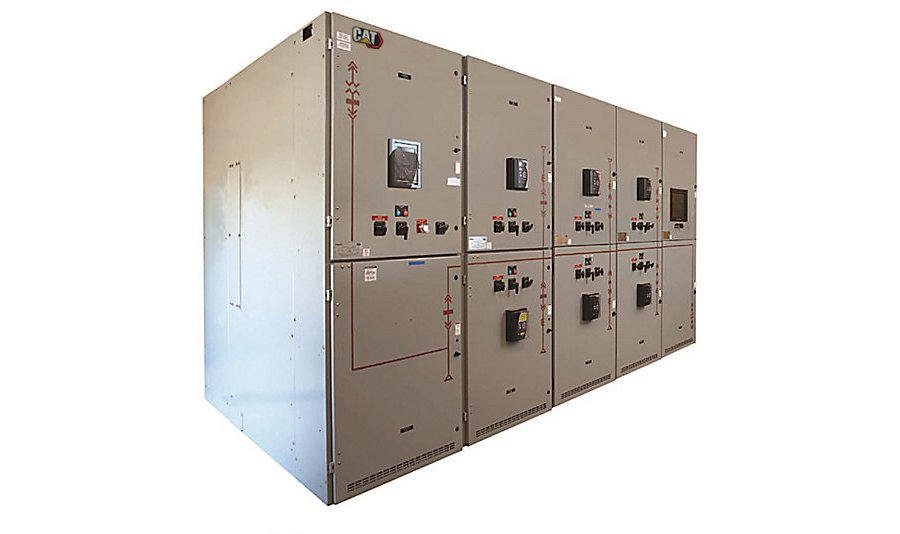

Cat Customizable Switchgear and Controls
Custom Switchgear and controls are design to provide a power generation, automation and distribution system specific to electrical needs.
| Configuration | Application-specific switchgear with control logic designed to meet any customer's sequence of operations. Examples are 3+ Utilities, CHP applications, complex load shed schemes, etc |
|---|---|
| Modes of Operation | All modes of paralleling generator sets to each other and to other sources (utility, alternative fuels, wind, etc) can be supported. Caterpillar generation and control experts can design and program the most complex power schemes to meet your critical power needs |
| Application | LV and MV ( 208V - 38 kV) 50 / 60 Hz |
| ANSI Protective Devices | Per customer specification |
|---|
| ANSI Protective Devices | Per customer specification |
|---|
| Certifications | Per customer specification |
|---|---|
| Control Panel Enclosure | Per customer specification |
| Operating Temperature | Per customer specification |
| Storage Temperature | Per customer specification |
| Low Voltage Standards | Per customer specification |
| Medium Voltage Standards | Per customer specification |
Generator Demand Priority Control
- Per customer specifications
-
Download ↓Cat XLM Switchgear
-
Download ↓Cat® Extended Service Coverage (ESC)
-
Download ↓Tech-Link Switchgear Remote Access System Service Tool
-
Download ↓Paralleling Switchgear Application & Installation Guide
-
Download ↓Cat® Switchgear Advanced GUI / HMI Operator Interface
Need installed dimensions with enclosure and tank? See Model Configurations
