Diesel generator sets

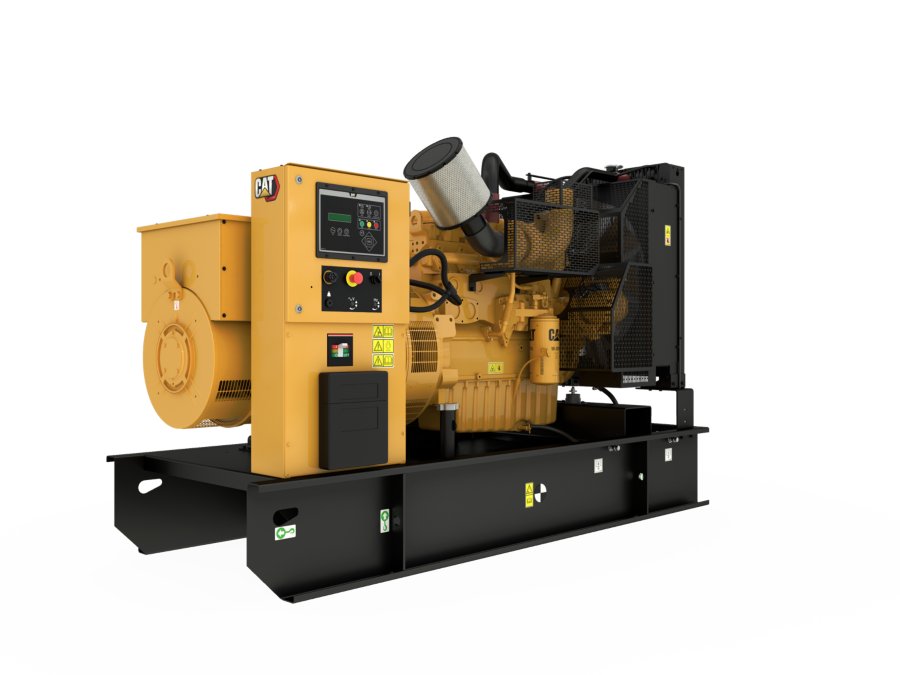

C9 | DE275E0
Producing reliable power of 275 kVA at 50 Hz, our DE250E0 diesel generator set designed to ISO 8528-5 transient response requirements.
- Maximum Rating275 kVA
- Minimum Rating250 kVA
- Emissions/Fuel StrategyNon-Certified
- Voltage200 to 400 Volts
- Frequency50 Hz
- Duty CycleStandby, Prime
| Maximum Rating | 275 kVA |
|---|---|
| Minimum Rating | 250 kVA |
| Emissions/Fuel Strategy | Non-Certified |
| Voltage | 200 to 400 Volts |
| Frequency | 50 Hz |
| Speed | 1500 rpm |
| Duty Cycle | Standby, Prime |
| Engine Model | C9 ATAAC, I-6, 4-Stroke Water-Cooled Diesel |
|---|---|
| Bore | 4.41 in |
| Stroke | 5.87 in |
| Displacement | 537.01 in³ |
| Compression Ratio | 16.1:1 |
| Aspiration | Air to Air Aftercooled |
| Fuel System | Hydraulic electronic unit injection |
| Governor Type | Adem™A4 |
| Length - Maximum | 157 in |
|---|---|
| Width - Maximum | 47.5 in |
| Height - Maximum | 73.5 in |
Air Inlet System
- Air cleaner, light duty with disposable paper filter
Control Panels
- GCCP 1.3
Cooling System
- Fan drive, battery charging alternator drive
- Coolant drain line with valve
- Radiator and cooling fan with guard
- Caterpillar extended life coolant
Exhaust System
- Stainless steel exhaust flex, gaskets, rain cap & SAE exhaust flange for customer use - shipped loose
Fuel System
- Standard open set fuel tank/base supplied
- Base, formed steel with single wall integral 8-hour fuel tank
Generators and Generator Attachments
- IP23 Protection
- Mandatory option circuit breaker, IEC, 3 pole mounted in power centre
- Power centre, IP22
- 12 Leads
- Segregated low voltage (AC/DC) wiring panel
- Voltage regulator (single phase sensing)
Governing System
- Cat electronic governor (ADEM A4)
Lube System
- Oil drain valves
- Lubricating oil
- Oil cooler
Mounting System
- Includes lifting provisions and termination points for coolant and lube oil drain lines
- Captive linear vibration isolators between base and engine-generator
Starting / Charging System
- 24V battery with rack and cables
General
- Engine and alternator re-paint, Caterpillar yellow
-
Download ↓Electric Power Ratings Guide
-
Download ↓DE275E0 50Hz NON CERTIFIED EMISSIONS Spec Sheet
Need installed dimensions with enclosure and tank? See Model Configurations
