Power Rating
| Power Range |
200 - 300 ekW |
|---|
Generator Set Specifications
| Frequency |
50 / 60 |
|---|
| Emissions/Fuel Strategy |
IMO II, IMO III, U.S. EPA Tier 3, China II |
|---|
| Speed |
200 ekW - 300 ekW |
|---|
Engine Specifications
| Aspiration |
Turbocharged - Aftercooled |
|---|
| Bore |
4.5 in |
|---|
| Stroke |
5.8 in |
|---|
| Rated Engine Speed |
1500 / 1800 rpm |
|---|
| Cooling |
Heat exchanger and separate or combined keel cooled options |
|---|
| Displacement |
567.5 in |
|---|
| Oil Change Interval |
500 hrs |
|---|
| Configuration |
Inline 6, 4-Stroke Cycle diesel |
|---|
| Refill Capacity |
Lube Oil System w/oil filter change: 24.5 L (6.5 gal) |
|---|
| Governor |
Electronic |
|---|
| Rotation from Flywheel End |
Counterclockwise |
|---|
Generator Set Dimensions
| Width |
38.5 in / 978 mm |
|---|
| Length |
57.2 in / 1,452 mm |
|---|
| Engine Dry Weight |
2083 - 2474 lb / 945 - 1122 kg |
|---|
| Height |
43.0 in |
|---|
Standard Equipment
- Water-cooled turbocharger and exhaust manifold
- Electronic control system
- Thermostats and housing
- Gear-driven Sea water pump (self-priming)
- Common rail fuel system
- Shell and tube jacket water heat exchanger
- Corrosion-resistant Sea water aftercooler
- Engine oil cooler
- Vibration damper and guard
- Primary fuel filters
-

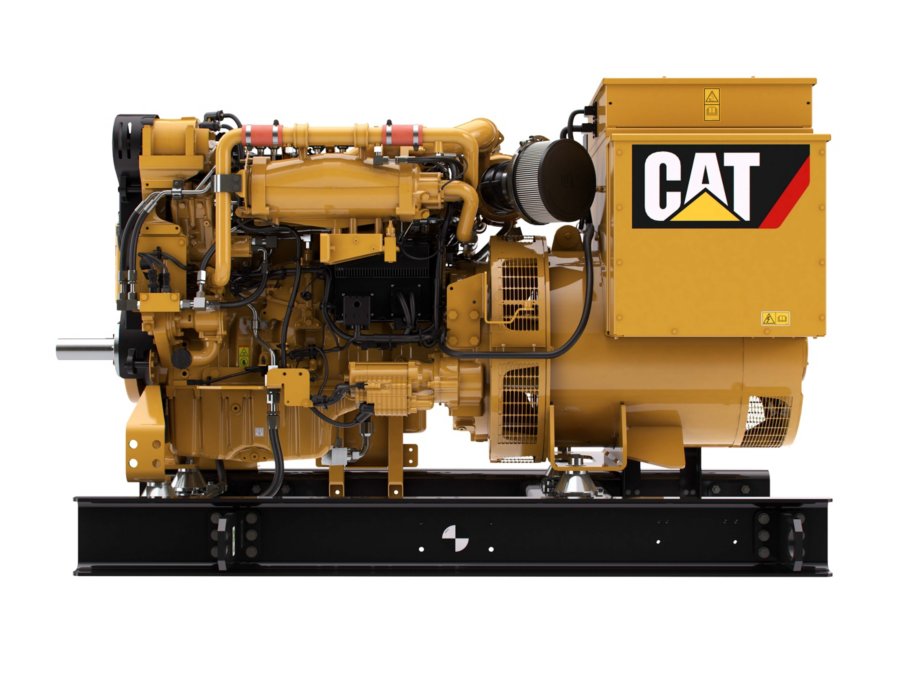

C9.3 Marine Generator Set Spec Sheet (200 ekW - 300 ekW)
