Industrial engines

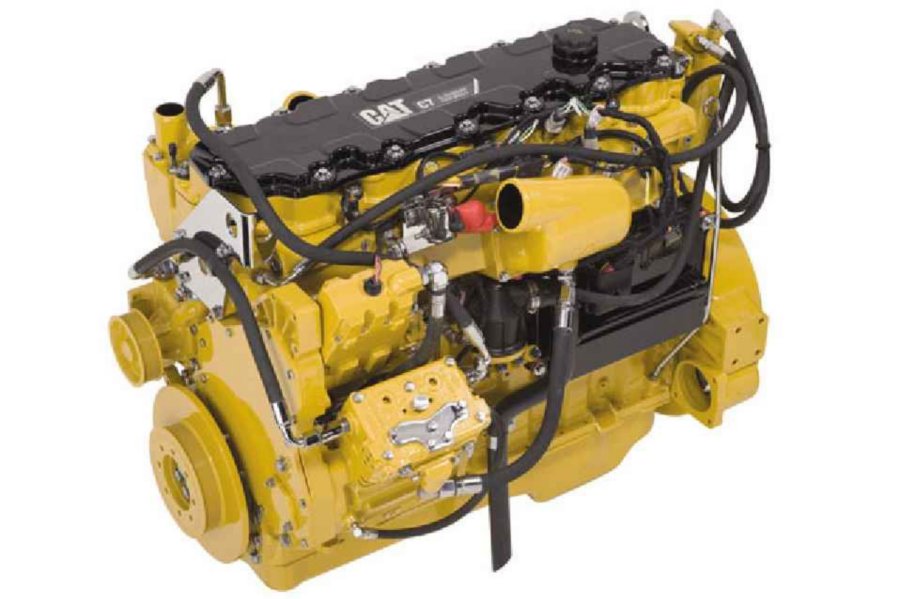

C7

Demanding conditions, applications and environments make Cat® C7 Industrial Diesel Engines the perfect solution for your severe duty equipment. With decades of diesel engine innovation and expertise behind these engines, they deliver the low operating costs and legendary Cat reliability and durability that give you a powerful advantage. More importantly, they're backed by the world-class Cat dealer network ready to service and support every Cat industrial engine. Industries and applications powered by C7 engines include Agriculture, Ag Tractors, Aircraft Ground Support, Bore/Drill Rigs, Chippers/Grinders, Combines/Harvesters, Compactors/Rollers, Compressors, Construction, Cranes, Crushers, Feller Bunchers, Forestry, Forklifts, General Industrial, Hydraulic Power Units, Irrigation Equipment, Loaders/Forwarders, Material Handling, Mining, Mobile Earthmoving Equipment, Mobile Sweepers, Paving Equipment, Pumps, Skidders, Specialty Ag Equipment, Sprayers, Trenchers and Underground Mining Equipment. The C7 engines, with ratings: 168-224 bkW (225-300 bhp) @ 1800-2200 rpm, meet China Stage II, EPA Tier 3 equivalent, EU Stage IIIA equivalent emission standards. They are available using U.S. EPA and EU Flexibility, and for other regulated and non-regulated areas.

Have questions about this product?
Request a Quote
Power Rating
Maximum Power 300 hp
Rated Speed 1800-2200 rpm
Minimum Power 225 hp
Emission Standards
Emissions China Stage II, U.S. EPA Tier 3 Equivalent, EU Stage IIIA Equivalent
General
Engine Configuration Inline 6, 4-Stroke-Cycle Diesel
Bore 4.3 in
Stroke 5 in
Displacement 442 in³
Compression Ratio 16.2:1
Aspiration Turbocharged Aftercooled (TA)
Combustion System Direct Injection
Rotation from Flywheel End Counterclockwise
Aftertreatment -
Engine Dimensions - Approximate
Length 41.5 in
Width 29.8 in
Height 40.6 in
Weight - Net Dry - Basic Operating Engine Without Optional Attachments 1296 lb

Air Inlet System

  • Turbocharged
  • Air-to-Air Aftercooled

Control System

  • Electronic governing, PTO speed control
  • Programmable ratings
  • Automatic altitude compensation
  • Power compensation for fuel temperature
  • Programmable low and high idle and total engine limit
  • Electronic diagnostics and fault logging
  • Engine monitoring system SAE J1939 broadcast and control
  • ADEM™ A4 Electronic Control Unit (ECU)

Cooling System

  • Thermostats and housing, vertical outlet
  • Jacket water pump, centrifugal
  • Water pump, inlet

Exhaust System

  • Exhaust manifold, dry
  • Optional exhaust outlet

Flywheels and Flywheel Housing

  • SAE No. 1 flywheel housing

Fuel System

  • HEUI™ injection
  • Fuel filter, secondary (2 micron)
  • ACERT™ Technology
  • Fuel transfer pump
  • Fuel priming pump

Lube System

  • Crankcase breather
  • Oil cooler
  • Oil filler
  • Lube oil filter
  • Front sump oil pan
  • Oil dipstick
  • Gear driven oil pump

General

  • Vibration damper
  • Lifting eyes
  • Cold start capability to -20° C (-4° F)
  • Paint: Caterpillar yellow, with optional colors available at request
Need installed dimensions with enclosure and tank? See Model Configurations
