Diesel generator sets

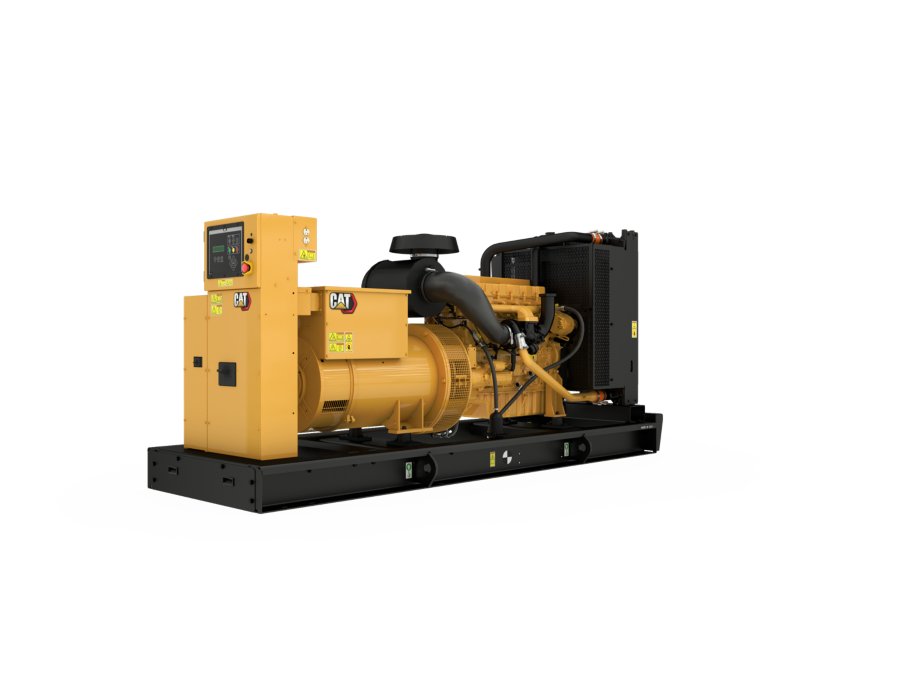

C7.1 | D175-4
Producing 175 ekW reliable power at 60 Hz, our D175-4 diesel generator set powerd by C7.1 designed to ISO 8528-5 transient response requirements. D175-4 generator set meet EPA Stationary Emergency (Tier 3) emissions standards.
- Minimum Rating158 ekW
- Maximum Rating175 ekW
- Emissions/Fuel StrategyU.S. EPA Cert., Tier 3
- Voltage208 to 600 Volts
- Frequency60 Hz
- Duty CycleStandby, Prime
| Minimum Rating | 158 ekW |
|---|---|
| Maximum Rating | 175 ekW |
| Emissions/Fuel Strategy | U.S. EPA Cert., Tier 3 |
| Voltage | 208 to 600 Volts |
| Frequency | 60 Hz |
| Speed | 1800 rpm |
| Duty Cycle | Standby, Prime |
| Engine Model | C7.1 I-6, 4-Cycle Diesel |
|---|---|
| Bore | 4.1 in |
| Stroke | 5.3 in |
| Displacement | 428 in³ |
| Compression Ratio | 16.7:1 |
| Aspiration | Turbocharged, Air to Air Aftercooled |
| Fuel System | Common Rail |
| Governor Type | ADEM™A4 |
| Length - Maximum | 120 in |
|---|---|
| Width - Maximum | 44 in |
| Height - Maximum | 58 in |
| Dry Weight - Genset (maximum) | 3307 lb |
Control panel
- EMCP 4.2B Control panel
Alternator and Alternator attachments
- LC Frame alternator
- Drip proof generator air intake (NEMA 2, IP23)
- Integrated voltage regulator (IVR)
- Insulation system, Class H
- Electrical stub-up area directly below circuit breaker
Governing system
- Electrical governing system
Cooling system
- Radiator and cooling fan with protective guards
- 50% Coolant antifreeze/corrosion inhibitor
- Low coolant level alarm
Exhaust system
- Stub-up pipe ready for connection to silencer pipework
Fuel system
- Skid Base with fuel tank
- Low and high fuel level alarm and shutdown
Lube system
- Lubricating oil
Mounting system
- Heavy duty fabricated steel base with lifting points
- Vibration isolators
- Flexible fuel lines to base with NPT connections
Starting/charging system
- 12V Premium high output battery with rack & cables, 1000 CCA, 90 Amp
General
- Engine and alternator pre-paint, Caterpillar yellow
- Warranty
- Engine and alternator pre-paint, Caterpillar yellow
Starting / Charging System
- 24V battery with rack and cables
-
Download ↓Electric Power Rating Guide
-
Download ↓175 ekW, 60 Hz, EPA Tier III Compliant Spec Sheet
-
Download ↓Weather Protective and Sound Attenuated Enclosures
Need installed dimensions with enclosure and tank? See Model Configurations
