Propulsion engines

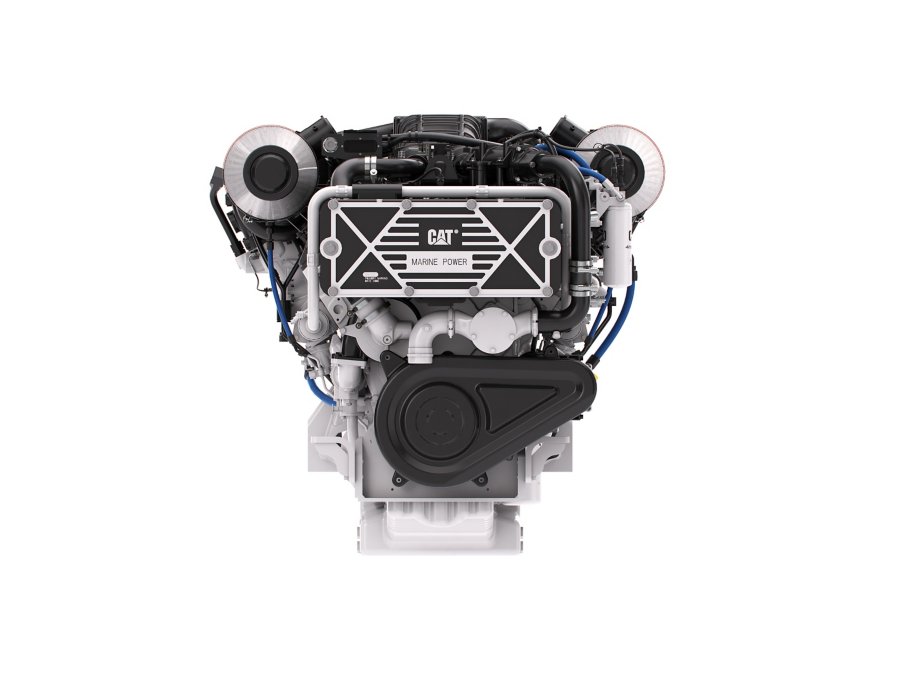

C32B Twin Turbo
All new from the block up and built on the proven C32 platform, the C32B marine engine delivers more power, more speed, more time on the water and more peace of mind. All that comes in a quieter package with only a 2% increase in weight compared to the previous model — making the C32B the right choice for new builds and repowers. Rated at 2025 mhp (2000 bhp) / 1491 bkW @ 2300 rpm, the C32B meets U.S. EPA Marine Tier 3 and IMO II emissions standards. With an E Tier rating, it can run at the full 2000hp up to 8% of the time.
| Power Range | 2000 bhp (1491 bkW) |
|---|
| Speed Range | 2300 rpm |
|---|---|
| Emissions | IMO II, U.S. EPA Tier 3 Recreational, RCD, China Stage II |
| Aspiration | TTA |
| Bore | 5.71 in |
| Stroke | 6.38 in |
| Displacement | 1959 in³ |
| Rotation from Flywheel End | Counterclockwise |
| Configuration | Vee 12, 4-Stroke-Cycle Diesel |
| Width | 57.8 in |
|---|---|
| Dry Weight | 6934 lb |
| Length | 82.9 in |
| Height | 56.9 in |
| Stroke | 6.38 in |
|---|
Standard Equipment
- ADEM VI Electronic Control Module
- Air Cleaner / Fumes Disposal
- Electronic Diagnostics and Fault Logging
- Engine and Transmission Monitoring
- Sea Water Aftercooler
- Titanium Plate Heat Exchanger with Expansion Tank
- Gear-driven JW and SW pumps
- Water-cooled Exhaust Manifolds and Turbochargers
- MEUI-C Fuel System
- Fuel Priming and Transfer Pump
- 250-hr Oil Pan (Shallow Sump)
- RH or LH Service Side Options
-
Download ↓C32B High Performance (1491 bkW) Spec Sheet
Need installed dimensions with enclosure and tank? See Model Configurations
