Diesel generator sets

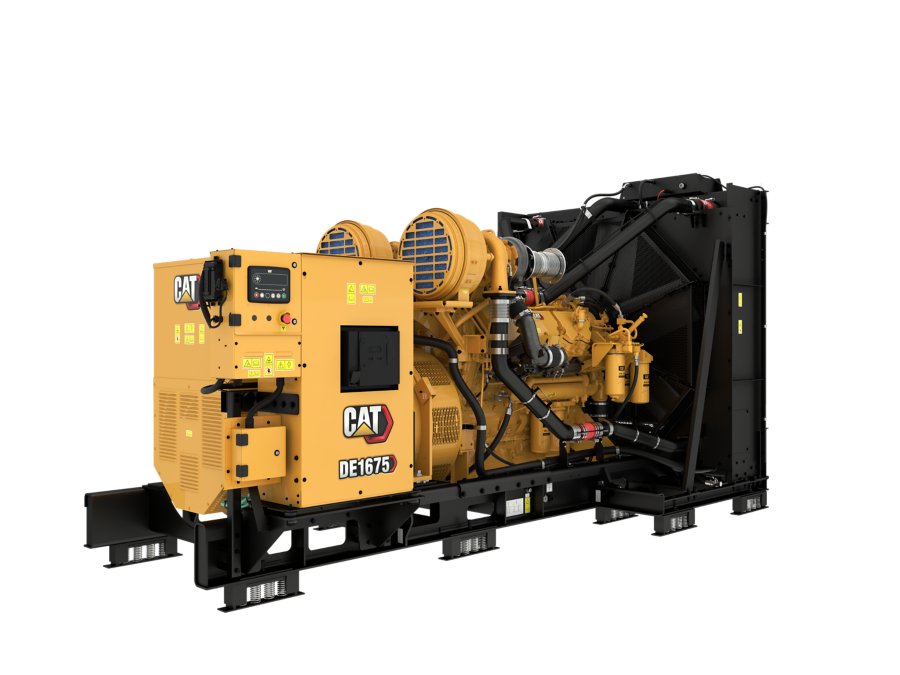

C32B DE1675
Producing reliable power at 1675 kVA at 50 Hz, the Caterpillar DE1675 diesel generator set is made to meet the needs of your standby and mission critical applications with the new C32B engine with best-in-class power density combining a compact and lighter design.
- Emissions/Fuel StrategyLow BSFC
- Voltage400 to 415 Volts
- Frequency50 Hz
- Duty CycleStandby, Mission Critical
- Maximum Rating1675 kVA
- Minimum Rating1675 kVA
| Standby Rating | 1675 kVA |
|---|---|
| Emissions/Fuel Strategy | Low BSFC |
| Voltage | 400 to 415 Volts |
| Frequency | 50 Hz |
| Speed | 1500 rpm |
| Duty Cycle | Standby, Mission Critical |
| Maximum Rating | 1675 kVA |
| Minimum Rating | 1675 kVA |
| Engine Model | C32B TA, V12, 4-Stroke Diesel |
|---|---|
| Bore | 5.7 in |
| Stroke | 6.4 in |
| Displacement | 1959 in³ |
| Compression Ratio | 14:1 |
| Aspiration | TA |
| Fuel System | EUI |
| Governor Type | ADEM™ A5 |
| Length - Minimum | 185.43 in |
|---|---|
| Length - Maximum | 185.43 in |
| Width - Minimum | 89.72 in |
| Width - Maximum | 89.72 in |
| Height - Minimum | 100.43 in |
| Height - Maximum | 105.71 in |
| Dry Weight - Genset (minimum) | 18832 lb |
| Dry Weight - Genset (maximum) | 20155 lb |
Air Cleaner
- Single Element
Starting
- Standard Batteries and Electric Starter
Cooling System
- Standard Radiator
Alternator
- 400 V
- 415 V
Alternator Temperature Rise
- 105°C
- 125°C
- 150°C
Excitation
- PM
- IE
Control Panel
- GCCP 1.3
Connectivity
- Cat® Product Link™ PL444 cellular
-
Download ↓Electric Power Ratings Guide
-
Download ↓C32B DE1675, 50 Hz, Standby/Mission Critical 1675 kVA , Low BSFC Spec Sheet
Need installed dimensions with enclosure and tank? See Model Configurations
