Diesel generator sets

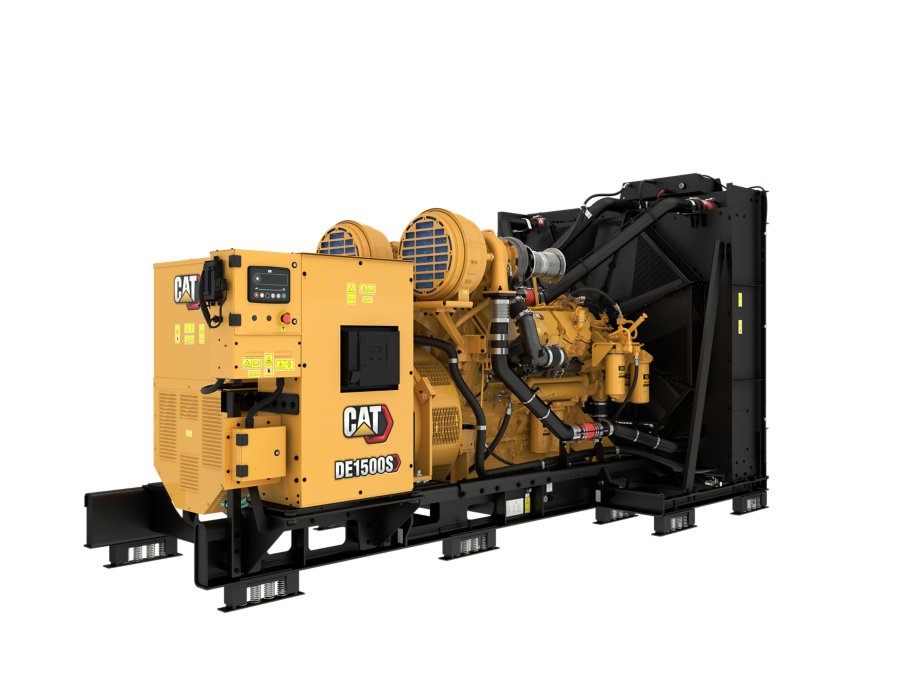

C32B DE1500S
Producing reliable power at 1500 ekW at 60 Hz, the Caterpillar DE1500S diesel generator set is made to meet the needs of your standby and mission critical applications with the new C32B engine with best-in-class power density combining a compact and lighter design.
- Emissions/Fuel StrategyLow BSFC
- Voltage400 to 415 Volts
- Frequency60 Hz
- Duty CycleStandby, Mission Critical
- Maximum Rating1500 ekW
- Minimum Rating1500 ekW
| Standby Rating | 1500 ekW |
|---|---|
| Emissions/Fuel Strategy | Low BSFC |
| Voltage | 400 to 415 Volts |
| Frequency | 60 Hz |
| Speed | 1800 rpm |
| Duty Cycle | Standby, Mission Critical |
| Maximum Rating | 1500 ekW |
| Minimum Rating | 1500 ekW |
| Mission Critical | 1500 ekW |
|---|
| Engine Model | C32B TA, V12, 4-Stroke Diesel |
|---|---|
| Bore | 5.7 in |
| Stroke | 6.4 in |
| Displacement | 1959 in³ |
| Compression Ratio | 14:1 |
| Aspiration | TA |
| Fuel System | EUI |
| Governor Type | ADEM™ A5 |
| Length - Minimum | 185.43 in |
|---|---|
| Length - Maximum | 185.43 in |
| Width - Minimum | 89.72 in |
| Width - Maximum | 89.72 in |
| Height - Minimum | 100.43 in |
| Height - Maximum | 105.71 in |
| Dry Weight - Genset (minimum) | 18832 lb |
| Dry Weight - Genset (maximum) | 20155 lb |
Air Cleaner
- Single Element
Starting
- Standard Batteries and Electric Starter
Cooling System
- Standard Radiator
Alternator
- 380 V
- 480 V
Alternator Temperature Rise
- 80°C
- 105°C
- 125°C
- 150°C
Excitation
- PM
- IE
Control Panel
- GCCP 1.3
Connectivity
- Cat® Product Link™ PL444 cellular
-
Download ↓Electric Power Ratings Guide
-
Download ↓C32B, DE1500S,1500 ekW, 60Hz, Low BSFC Spec Sheet
Need installed dimensions with enclosure and tank? See Model Configurations
