Diesel generator sets

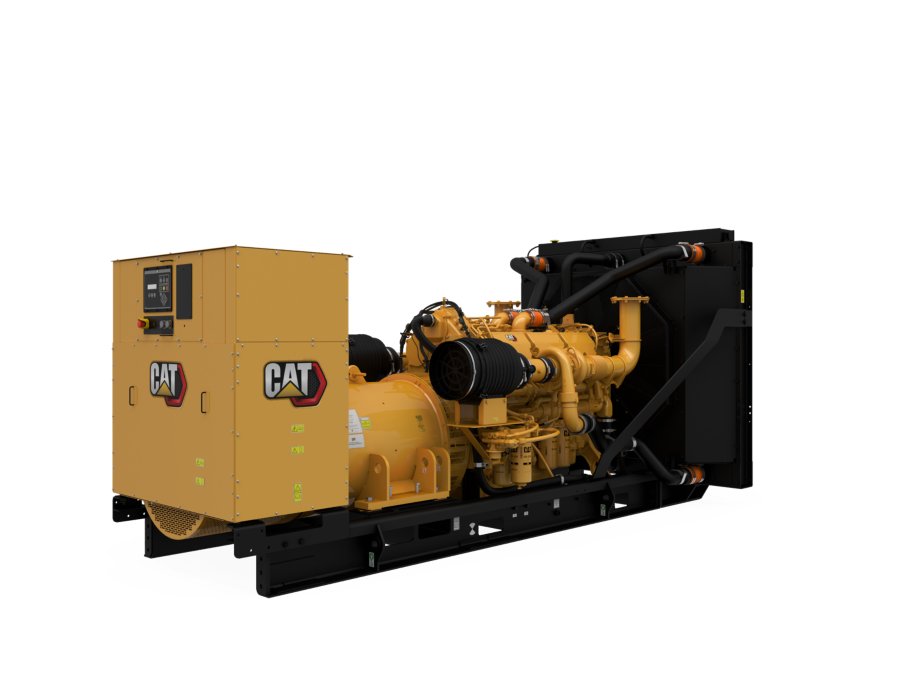

C32B | 1500 kVA
Producing reliable power from 910 kVA to 1500 kVA at 50 Hz, our C32B diesel generator sets are made to meet your mission critical, continuous, standby and prime applications. We've designed each to ISO 8528-5 transient response requirements and to accept 100 percent rated load in one step. Our C32B generator sets are made for demands, so you can make yours.
- Maximum Rating1500 kVA
- Minimum Rating910 kVA
- Emissions/Fuel StrategyLow Fuel, Low Emissions
- Voltage400 to 3300 Volts
- Frequency50 Hz
- Duty CycleStandby, Mission Critical, Prime, Continuous
| Maximum Rating | 1500 kVA |
|---|---|
| Minimum Rating | 910 kVA |
| Emissions/Fuel Strategy | Low Fuel, Low Emissions |
| Voltage | 400 to 3300 Volts |
| Frequency | 50 Hz |
| Speed | 1500 rpm |
| Duty Cycle | Standby, Mission Critical, Prime, Continuous |
| Engine Model | C32B TA, V-12, 4-Stroke Water-Cooled Diesel |
|---|---|
| Bore | 5.71 in |
| Stroke | 6.38 in |
| Displacement | 1958.86 in³ |
| Compression Ratio | 15.0:1 |
| Aspiration | Turbocharged, Air to Air Aftercooled |
| Fuel System | MEUI |
| Governor Type | Adem™A4 |
| Length - Minimum | 164 in |
|---|---|
| Length - Maximum | 176.6 in |
| Width - Minimum | 66.3 in |
| Width - Maximum | 87.8 in |
| Height - Minimum | 85.1 in |
| Height - Maximum | 86.4 in |
| Dry Weight - Genset (minimum) | 14700 lb |
| Dry Weight - Genset (maximum) | 17855 lb |
Air Inlet System
- Single element canister type with service indicator
Control Panel
- GCCP 1.2
- GCCP 1.3
- Control features
- Programmable protective relaying functions
- Digital indicators
- Warning shutdowns
- Communications
Cooling System
- Fan and belt guards
- Radiator fan and fan drive
- ATAAC
- Coolant drain line with valve
- Caterpillar extended life coolant
- Low coolant level sensor
Exhaust
- Exhaust manifold - dry
- 203 mm (8 in) ID round flanged outlet
Fuel System
- Primary fuel filter with water separator
- Fuel priming pump
- Secondary fuel filters
- Fuel cooler
Generators and Attachments
- Integrated voltage regulator (IVR)
- Permanent magnet excitation (PMG)
- 3 Phase brushless
- Reactive droop
- Internal excitation (IE)
- NEMA Class H insulation
- Class H temperature rise at 40C ambient
- Salient pole
- Winding temperature detectors
- 6 Lead
- IEC standard hole pattern
- Busbar connections, top center mounted, top cable entry
Governing System
- ADEM(tm) A4
Mounting System
- Rails - engine/generator/radiator mounting
- Rubber anti-vibration mounts
Lube System
- Oil drain lines and valve
- Integral lube Oil cooler
- Fumes disposal
- Lubricating oil
- Oil filter, filler and dipstick
- Gear type lube oil pump
Power Termination
- Busbar
Starting / Charging System
- 24 Volt electric starting motor
- Battery, rack and cables
- Battery disconnect switch
- 45 Amp Charging alternator
General
- Caterpillar yellow with high gloss black rails & radiator
- RH service
- Flywheel and flywheel housing-SAE
- SAE standard rotation
-
Download ↓Electric Power Ratings Guide
-
Download ↓C32B, 50 Hz, 1250 kVA Standby 1100 ekW Prime, 910 kVA Cont., Low Fuel Consumption or Low Emissions Spec Sheet
-
Download ↓C32B, 50 Hz, 1500 kVA Standby 1375 ekW Prime, Low Fuel Consumption Spec Sheet
Need installed dimensions with enclosure and tank? See Model Configurations
