Marine generator sets

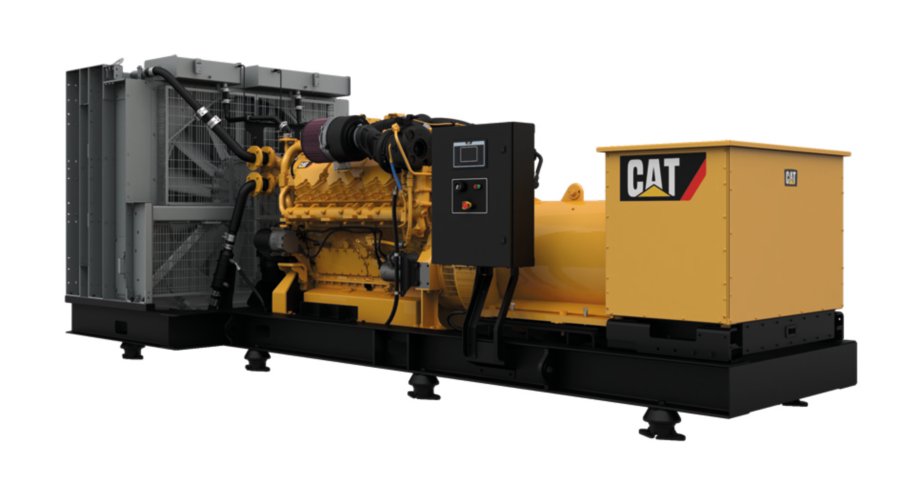

C32
C32 generator sets incorporate a separate circuit aftercooling system (SCAC) for all configurations. The primary advantage of the SCAC systsem is reduced aftercooler corrosion since no sea water circulates through the aftercooler. Many other improvements on these engines contribute to minimizing owning and operating costs. The EPA Tier 4, IMO II/IMO III switchable and EU Stage 5 compliant ratings are available with heat exchanger or keel cooled options. Heat exchanger configurations have an optional front mounted sea water pump.
- Frequency50 / 60
- Maximum Rating940 ekW (1175 kVA)
- Minimum Rating500 ekW (913 kVA)
- Emissions/Fuel StrategyEPA Tier 4, IMO II/IMO III Switchable, EU Stage V
| Power Range | 550 - 940 ekW |
|---|
| Frequency | 50 / 60 |
|---|---|
| Speed | 1500 / 1800 rpm |
| Maximum Rating | 940 ekW (1175 kVA) |
| Minimum Rating | 500 ekW (913 kVA) |
| Emissions/Fuel Strategy | EPA Tier 4, IMO II/IMO III Switchable, EU Stage V |
| Aspiration | Turbocharged and aftercooled |
|---|---|
| Bore | 5.7 in |
| Stroke | 6.38 in |
| Displacement | 1959.0 in³ |
| Governor Type | Electronic |
| Fuel System | MEUI |
| Engine Model | V 12, 4-stroke-Cycle-Diesel |
| Width | 60.2 in |
|---|---|
| Height | 65.6 in |
| Weight - Estimated | 15721.0 lb |
| Length | 162.8 in/4271 mm (minimum), 175.3 in/4452 mm (maximum) |
| Excitation | Permanent magnet |
|---|---|
| Number of Poles | 4 |
| Number of Bearings | 2 roller bearings |
| Number of Leads | 6 |
| Insulation | Class H |
| IP Rating | 23 |
| Voltage Regulator | CDVR |
AIR INLET SYSTEM
- Separate circuit after-cooled (SCAC)
- Turbocharger, jacket water cooled
- Turbocharger inlet, 152 mm (6 in) OD straight connection
CONTROL SYSTEM
- If an EMCP panel or MGCP option is not chosen as optional equipment, then start/stop controls must be provided by the customer
- Electronic diagnostics and fault logging
- Engine Protection Mode for extended ambient conditions
- Electronic fuel/air ratio control
COOLING SYSTEM
- Separate Circuit After-Cooling (SCAC) for Heat Exchanged (HEX) & Keel cooled engines
- Jacket Water (JW) and SCAC Heat Exchangers Shell & Tube for HEX cooled engines
- SCAC pump, gear driven
- Jacket water pump, gear driven
- Sea water pump, bronze impeller, gear driven, for HEX cooled engines only
- Jacket water HEX with Sea water pump Connections: 76.2 mm (3in) ID Standard
- 4 Bolt ANSI Flange Connection
- Jacket water HEX without Sea water pump Connection: 2.5" hose barb connection (inlet), 76.2 mm (3in) ID Standard 4 Bolt ANSI Flange (outlet)
- Keel Connections: 76.2 mm (3in) ID Standard 4 Bolt ANSI Flange Connection
- SCAC and JW shunt tanks for maintaining proper Pump inlet pressures
EXHAUST SYSTEM
- Water-cooled exhaust manifold & turbocharger
- 4 Bolt 130 mm (5.12 in) diameter flanged outlet
FLYWHEELS & FLYWHEEL HOUSINGS
- Flywheel Housing, SAE No. 0
- Flywheel, 18 inch, 136 teeth
- SAE standard rotation
FUEL SYSTEM
- Duplex Fuel Filters, Spin-on, RH service
- Fuel connections size: Supply JIC 37 Deg -10 (7/8-14), Return JIC 37 Deg -8 (3/4-16)
- Plate-type fuel cooler installed behind Aftercooler Shunt Tank
- Fuel transfer pump, gear driven
- Manual fuel priming pump
GENERATORS AND GENERATOR ATTACHMENTS
- SR5 form wound
- 2 roller bearings
- Permanent magnet excitation
- 4 pole, 6 leads, Series Star connected
- Caterpillar's Digital Voltage Regulator (CDVR)
- Marine Class H insulation, Class F temperature rise
- Surface mounted platinum (PT100) 3-wire RTDs, 2 per phase on stator and one each on support bearings
- Anti-condensation space heaters (2 elements - 240 VAC, 1000 Watts
- IP23 Protection suitable for use with Fixed Water Based Local Application Fire Fighting Systems (FWBLAFFS)
- System IV insulation for harsh environment protection
LUBE SYSTEM
- Simplex oil filters, RH service
- Deep sump oil pan
- RH service oil filler locations
- RH service dipstick
- Oil pump, gear driven
MOUNTING SYSTEM
- Formed C-channel rails, 300mm (11.81in) height
- Six shipped loose combined helical spring/rubber
- isolators for installation below package base
GENERAL
- Front Damper guard
- Common electrical bondng point on HEX and KEEL cooled engines
-
Download ↓C32 Marine Generator Set Spec Sheet (590 bkW - 874 bkW)
-
Download ↓C32 Marine Generator Set Spec Sheet (781 bkW - 994 bkW)
-
Download ↓C32 Marine Generator Set Spec Sheet (830 ekW)
-
Download ↓C32 Marine Generator Set Spec Sheet (940 ekW)
Need installed dimensions with enclosure and tank? See Model Configurations
