Propulsion engines

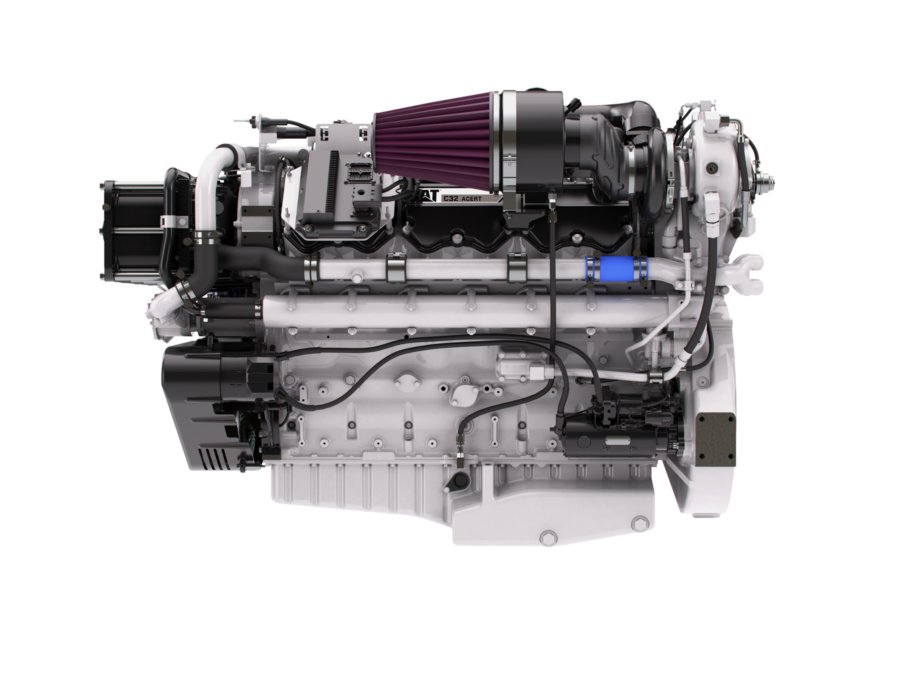

C32
C32 propulsion engine ratings of 1925 mhp (1900 bhp) 1417 bkW, 1825 mhp (1800 bhp) 1342 bkW, and 1622 mhp (1600 bhp) 1193 bkW are available with heat exchanger cooling. These ratings are compliant for U.S. EPA Tier 3 Recreational, EU Stage IIIA, and IMO II. The 1600 and 1800 bhp ratings are also meet US EPA Tier 3 Commercial Standards. The engine configuration includes an air cleaner and CCV system as well as jacket water aftercooling. Additional features include a “plug-in PTO”, an MECP I control panel, and hybrid fuel lines. The MECP I panel has a monochrome display for engine parameters, external outputs for customer installed visible and audible alarms, Start/Stop buttons, and an Off/Local/Remote switch.
| Power Range | 1600-1900 bhp (1193-1417 bkW) |
|---|
| Speed Range | 2300 rpm |
|---|---|
| Emissions | IMO II, U.S. EPA Tier 3 Recreational, RCD, China Stage II |
| Aspiration | Twin Turbocharged-aftercooled |
| Bore | 5.71 in |
| Stroke | 6.38 in |
| Displacement | 1959 in³ |
| Rotation from Flywheel End | Counterclockwise |
| Configuration | Vee 12, 4-Stroke Cycle diesel |
| Length | 82.9 in |
|---|---|
| Width | 58.3 in |
| Height | 56.9 in |
| Dry Weight | 6780 lb |
Control System
- ADEM IV Electronic Control Module
- Electronic Diagnostics and Fault Logging
- Engine and Transmission Monitoring
- Programmable Low Idle
- 70-Pin Customer Connector
Air Inlet System
- Air Cleaner / Fumes Disposal
Cooling System
- Sea Water Aftercooler
- Titanium Plate Heat Exchanger with Expansion Tank
- Gear-driven Jacket Water and Sea Water pumps
Exhaust System
- Water-cooled Exhaust Manifolds and Turbochargers
Fuel System
- MEUI Fuel System
- Fuel Priming and Transfer Pump
- Simplex Fuel Filters
STANDARD EQUIPMENT
- Engine and Transmission Monitoring
- Fuel Priming and Transfer Pump
Lube System
- 250-hr Oil Pan (Shallow Sump)
- Simplex Oil Filters
- Gear Driven Oil pump
General
- RH or LH Service Side Options
Control system
- Throttle Inputs
Flywheel Housing
- Flywheel Housing SAE 0
-
Download ↓C32 Marine High Performance Engine Spec Sheet (1193 bkW -1417 bkW)
Need installed dimensions with enclosure and tank? See Model Configurations
