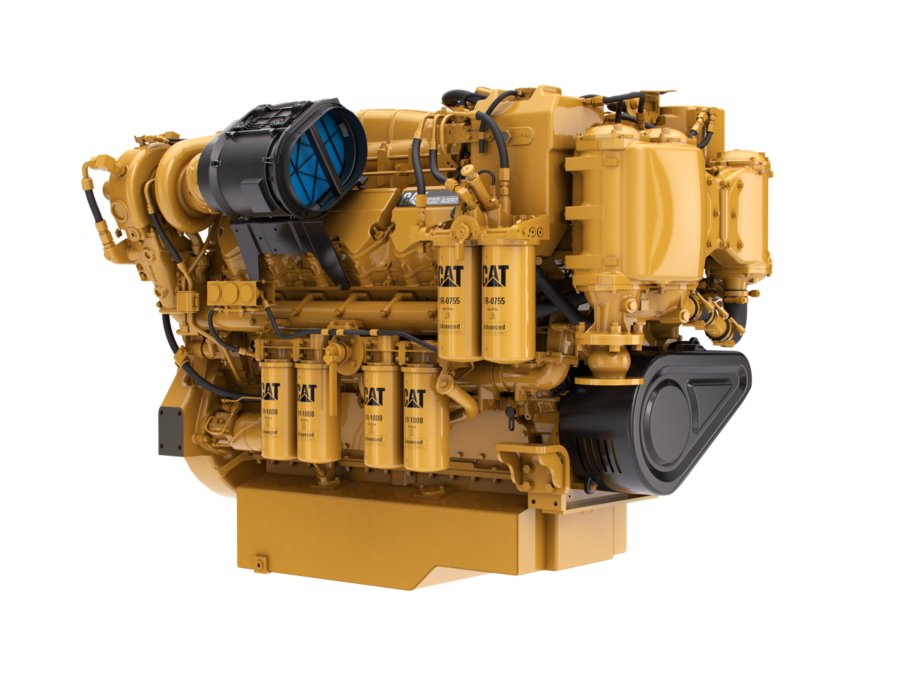

C32
The C32 marine propulsion engine is available at ratings that meet EPA Tier 3, EPA Tier 4, and IMO II/III, and EU Stage 5 emissions regulations. It has a separate circuit aftercooling system (SCAC) for A through C ratings and a seawater aftercooling system (SWAC) for D and E ratings. The C32 has several ratings with Wide Operating Speed Range (WOSR) and extended oil change intervals. Other benefits include proven engine operating history and performance iron with thousands of validation testing hours for quality and durability. The C32 marine engine is supported by the extensive Cat global dealer network and standard warranty.
| Power Range | 660 - 1600 bhp (492 - 1193 bkW) |
|---|
| Speed Range | 1600 - 2300 rpm |
|---|---|
| Emissions | U.S. EPA Tier 3/ Tier 4, IMO II/III, EU Stage V |
| Aspiration | Twin Turbocharged Aspiration |
| Bore | 5.71 in |
| Stroke | 6.38 in |
| Displacement | 1959.0 in³ |
| Rotation from Flywheel End | Counterclockwise |
| Configuration | V 12, 4-Stroke-Cycle Diesel |
| Maximum Height | 62.5 in |
|---|---|
| Minimum Length | 77.8 in |
| Minimum Height | 60.9 in |
| Maximum Width | 60.17 in |
| Maximum Length | 83.5 in |
| Minimum Width | 60.17 in |
AIR INLET SYSTEM
- Separate Circuit After-Cooled (SCAC)
- Seawater After-Cooling (SWAC) System
- Air cleaner
- Turbochargers, jacket water cooled
- Turbochargers inlet, 152 mm (6 in) OD straight connection
CONTROL SYSTEM
- Programmable Low Idle (550 - 750 rpm)
- WOSR (Wide Operating Speed Range) available for - A, B, & C Ratings
- Programmable High Idle Limit for WOSR Ratings
- Electronic diagnostics and fault logging
- Engine and transmission monitoring (speed, temperature, pressure)
- Electronic fuel/air ratio control
- Engine Protection Mode for extended ambient conditions
- Torque Limiting functionality for WOSR ratings only
- 70-pin customer connector
- Throttle Input signal options
COOLING SYSTEM
- Separate Circuit After-Cooling (SCAC) for Heat Exchanged (HEX) & Keel cooled engines
- Jacket Water (JW) and SCAC Heat Exchangers Shell & Tube for HEX cooled engines
- SCAC pump, gear driven
- Jacket water pump, gear driven
- Sea water pump, bronze impeller, gear driven, for HEX cooled engines only
- Sea water Pump & JW Heat Exchanger Connection: 76.2 mm (3in) ID Standard
- Keel Connections: 76.2 mm (3in) ID Standard 4 Bolt ANSI Flange Connection
- SCAC and JW shunt tanks for maintaining proper pump inlet pressures
- Seawater After-Cooling (SWAC) System
EXHAUST SYSTEM
- 4 Bolt 130 mm (5.12 in) diameter flanged outlet
- Water-cooled exhaust manifold & turbocharger
FLYWHEELS & FLYWHEEL HOUSINGS
- SAE standard rotation (CCW facing exciter end)
- Flywheel Housing: SAE No. 0, Flywheel: 18 inch, 136 teeth
FUEL SYSTEM
- Duplex Fuel Filters, Spin-on, RH & LH service
- Fuel connections size:Supply JIC 37 Deg -10 (7/8-14), Return JIC 37 Deg -8 (3/4-16)
- Plate Type Fuel Cooler installed behind Aftercooler Shunt Tank
- Fuel transfer pump, gear driven
- Manual fuel priming pump
- Hybrid fuel line design
LUBE SYSTEM
- Simplex Oil Filters, RH or LH service
- Deep sump oil pan
- RH or LH service oil filler locations
- RH or LH service dipstick
- Oil pump, gear driven
MOUNTING SYSTEM
- Front support - adjustable
POWER TAKE-OFFS
- Front Poly-V groove pulley (Quantity 1) for auxiliary drives
GENERAL
- Common electrical bonding point
- Engine does not ship with zinc components
-
