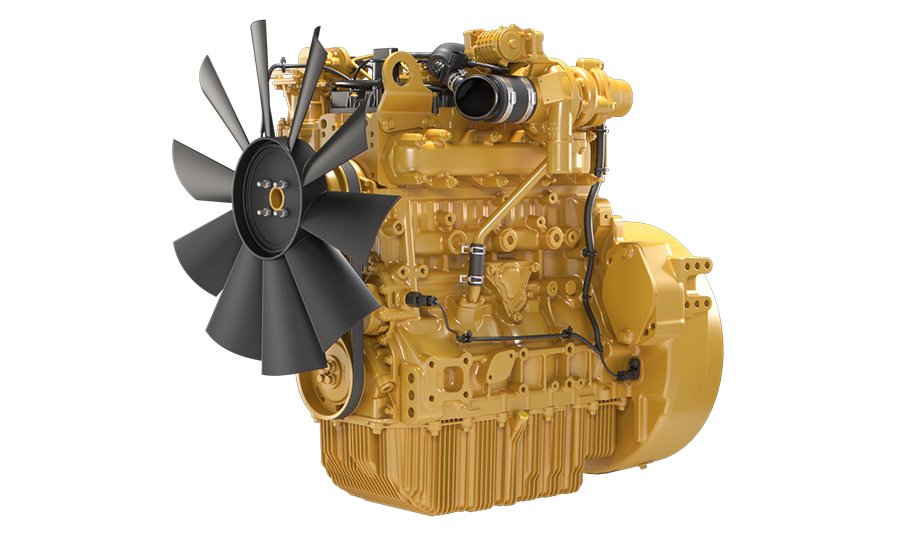

C3.6
The Cat® C3.6 industrial diesel engine balances compact size, reliability, and performance. This engine is offered in ratings ranging up to 106 kW (142 hp) @ 2200 rpm. The C3.6 is designed to meet the needs of many industries and applications including; agricultural tractors, bore/drill rigs, compactors/rollers, compressors, forestry, material handling, mining, earthmoving equipment, fruit harvesters and more.
| Maximum Power | 142 hp |
|---|---|
| Maximum Torque | 417 lb-ft @ 1500 rpm |
| Rated Speed | 2000-2400 rpm |
| Minimum Power | 74 hp |
| Emissions | U.S. EPA Tier 4 Final, EU Stage V, Japan 2014 |
|---|
| Number of Cylinders | 4 |
|---|---|
| Displacement | 220.9 in³ |
| Aspiration | Turbocharged-aftercooled (TA) |
| Bore | 3.86 in |
| Stroke | 4.72 in |
| Combustion System | Direct injection |
| Compression Ratio | 17.0:1 |
| Aftertreatment | DOC+DPF or DOC+DPF+SCR |
| Total Lubricating Oil Capacity | 3.06 gal (US) |
| Rotation from Flywheel End | Anti-clockwise |
| Cooling System | Liquid |
| Length | 26.3 in |
|---|---|
| Width | 22.2 in |
| Height | 31.0 in |
| Dry Weight | 840 lb |
| Wet Weight | 928 lb |
| Note 1 | *Final dimensions dependent on selected options |
|---|
-
