Auxiliary engines
C280

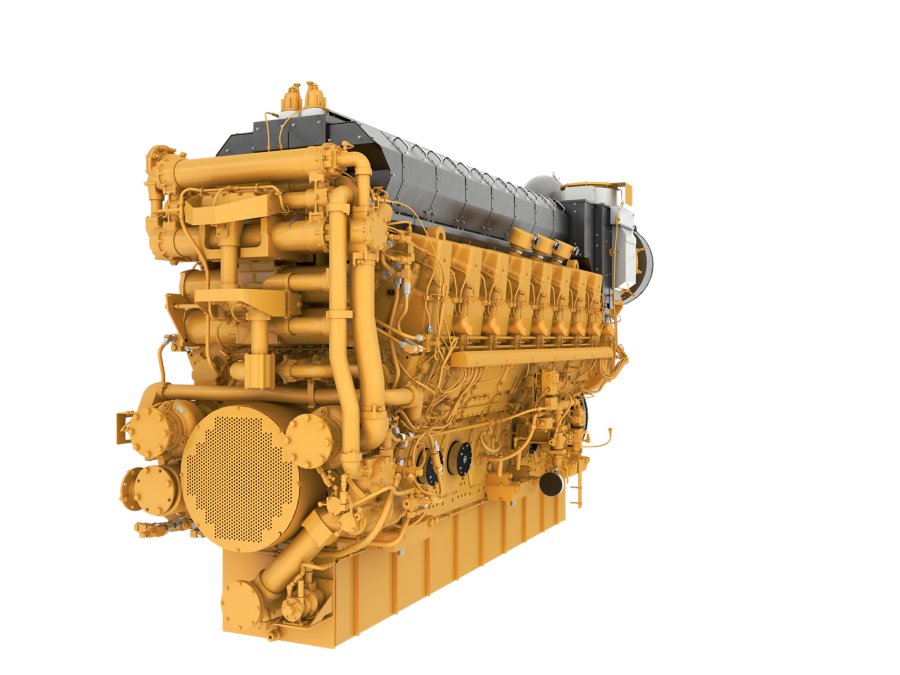

Cat C280 Marine Auxiliary Engines
- Frequency50 / 60
| Power Range | 1730 - 5420 bkW |
|---|---|
| Minimum Rating | 2320.0 BHP |
| Maximum Rating | 7268 BHP |
| Frequency | 50 / 60 |
|---|
| Emissions | U.S. EPA Tier 4 |
|---|---|
| Aspiration | Turbocharged - Aspirator |
| Bore | 11.0 in |
| Stroke | 11.8 in |
| Configuration | In-Line 6, V 8, V 12, V 16, 4-Stroke-Cycle Diesel |
| Maximum Width | 69.0 in |
|---|---|
| Minimum Height | 108.0 in |
| Minimum Dry Weight | 34496.0 lb |
| Maximum Height | 140.0 in |
| Minimum Width | 67.0 in |
| Minimum Length | 145 in |
| Maximum Length | 197 in |
| Maximum Dry Weight | 62832.0 lb |
General
- LH and RH service availability
Air Inlet System
- Aftercooler, fresh water, corrosion resistant coated (air side)
- Dual turbochargers, rear-mounted, engine oil lubricated
- Crankcase breathers, top mounted
- Air inlet adapter - Straight / 90 degree / 35 degree
Control System
- Dual Caterpillar ADEM A4 Electronic Engine Control Modules
- Rigid Wiring Harness
Cooling System
- Aftercooler/Oil cooler and jacket water gear driven pumps
- Engine coolant water drains
- Engine coolant water drains
- Engine coolant water drains
- Single Circuit / Separate Circuit Aftercooler
Exhaust System
- Dry exhaust manifold
- Turbo speed sensors - Overspeed protection
Fuel System
- Fuel transfer pump, gear driven
- Electronically Controlled Unit Injectors
- Duplex Fuel filters
Instrumentation
- Cat Alarm & Protection System
Lube System
- Oil pump, gear driven
- Duplex centrifugal oil filter, engine mounted
- Wet sump
- Prelube pump - air / electric
Protection System
- Crankcase explosion relief valves
-
Download ↓C280-12 Auxiliary / DEP (3460, 3800 bkW) Tier 4 Spec Sheet
-
Download ↓C280-8 Auxiliary / DEP (2530, 2300 bkW) Tier 4 Spec Sheet
Need installed dimensions with enclosure and tank? See Model Configurations
