Marine generator sets
C280-8

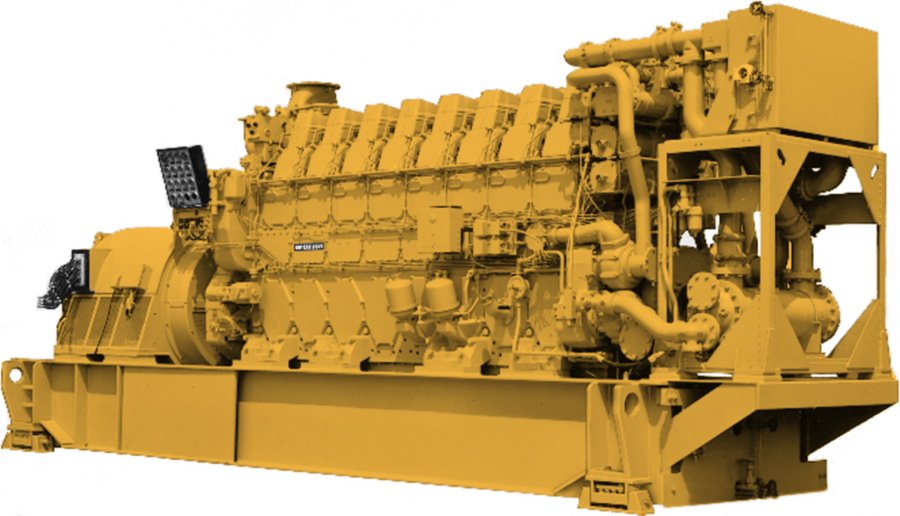

Cat C280-8 Marine Generator Set
- Frequency50 / 60
- Minimum Rating2200 ekW (2938 kVA)
- Maximum Rating2600 ekW (3025 kVA)
- Emissions/Fuel StrategyEPA Tier 2, IMO II
| Power Range | 2200 - 2600 ekW |
|---|
| Frequency | 50 / 60 |
|---|---|
| Speed | 1000 rpm (50 hz) or 900 rpm (60 hz) |
| Minimum Rating | 2200 ekW (2938 kVA) |
| Maximum Rating | 2600 ekW (3025 kVA) |
| Emissions/Fuel Strategy | EPA Tier 2, IMO II |
| Aspiration | Turbocharged-Aftercooled |
|---|---|
| Bore | 11.0 in |
| Stroke | 11.8 in |
| Displacement | 9031.0 in³ |
| Governor Type | Electronic |
| Fuel System | EUI |
| Compression Ratio 50 Hz | 13.1 |
| Compression Ratio 60 Hz | 13:1 |
| Engine Model | In-line 8, 4-Stroke-Cycle Diesel |
| Length | 316.5 in |
|---|---|
| Width | 77.2 in |
| Height | 155.0 in |
| Weight - Estimated | 25000.0 lb |
General
- LH and RH service availability
Air Inlet System
- Aftercooler, fresh water, corrosion resistant coated (air side)
- Air inlet adapter - Straight / 90 degree / 35 degree
Ain Inlet System
- Crankcase breathers, top mounted
- Single turbocharger, rear-mounted, engine oil lubricated
Control System
- Dual Caterpillar ADEM A4 Electronic Engine Control Modules
- Rigid Wiring Harness
Cooling System
- Aftercooler/oil cooler and jacket water pumps (gear driven)
- Engine coolant water drains
- Single Circuit / Separate Circuit Aftercooler
Exhaust System
- Dry, gas tight, exhaust manifold
- Turbo speed sensors - overspeed protection
Fuel System
- Fuel transfer pump, gear driven
- Duplex Fuel filters
- Electronically Controlled Unit Injectors
- Electronically Controlled Unit Injectors
Insturmental
- CAT Alarm & Protection System
Lube System
- Oil pump, gear driven
- 2 element oil cooler, engine mounted
- Duplex centrifugal oil filter - engine mounted
- Prelube pump - air / electric
Protection System
- Crankcase explosion relief valves
-
Download ↓C280-8 Auxiliary / DEP (2530, 2300 bkW) Tier 4 Spec Sheet
Need installed dimensions with enclosure and tank? See Model Configurations
