Power Rating
| Power Range |
4700 - 4840 ekW |
|---|
Generator Set Specifications
| Frequency |
50 / 60 |
|---|
| Speed |
1000 rpm (50 hz) or 900 rpm (60 hz) |
|---|
| Minimum Rating |
4700 ekW (5875 kVA) |
|---|
| Maximum Rating |
4840 ekW (6050 kVA) |
|---|
Engine Specifications
| Emissions |
EPA Tier 2, IMO II |
|---|
| Aspiration |
Turbocharged-Aftercooled |
|---|
| Bore |
11.0 in |
|---|
| Stroke |
11.8 in |
|---|
| Displacement |
18062.0 in³ |
|---|
| Governor Type |
Electronic |
|---|
| Fuel System |
EUI |
|---|
| Compression Ratio 50 Hz |
13.1 |
|---|
| Compression Ratio 60 Hz |
13:1 |
|---|
| Engine Model |
Vee 16, 4-Stroke-Cycle Diesel |
|---|
Generator Set Dimensions
| Length |
366.7 in |
|---|
| Width |
78.3 in |
|---|
| Height |
164.1 in |
|---|
| Weight |
31000 kg/ 68343 lb (engine dry weight), 18145 kg/ 40000 lb (generator weight) |
|---|
General
- LH and RH service availability
Air Inlet System
- Aftercooler, fresh water, corrosion resistant coated (air side)
- Dual turbochargers, rear-mounted, engine oil lubricated
- Crankcase breathers, top mounted
- Air inlet adapter - Straight / 90 degree / 35 degree
Control System
- Dual Caterpillar ADEM A4 Electronic Engine Control Modules
- Rigid Wiring Harness
Cooling System
- Aftercooler / Oil cooler and jacket water gear driven pumps
- Engine coolant water drains
- Single Circuit / Separate Circuit Aftercooler
Exhaust System
- Dry exhaust manifold
- Turbo speed sensors - overspeed protection
Fuel System
- Fuel transfer pump, gear driven
- Electronically Controlled Unit Injectors
- Duplex Fuel filters
Instrumentation
- Cat Alarm & Protection System
Lube System
- Oil pump, gear driven
- 3 element oil cooler, engine mounted
- Duplex centrifugal oil filter, engine mounted
- Wet sump
- Prelube pump - air / electric
Protection System
- Crankcase explosion relief valves
-

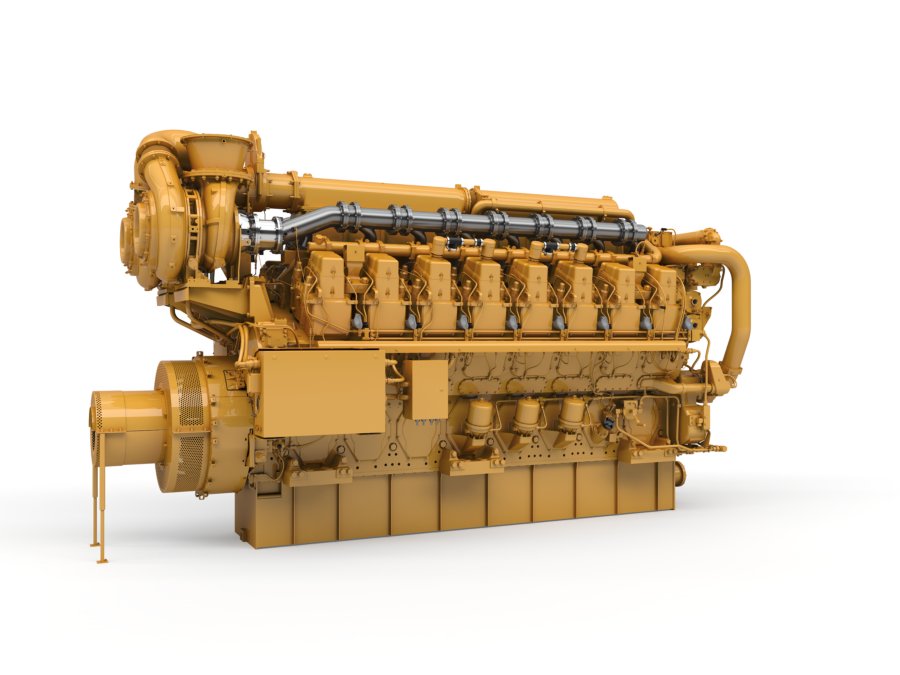

C280-16 TIER 2 MAR AUX & DIESEL ELECTRIC PROP 5200EKW 5420BKW 50 HZ 1000RPM
application/pdf
-
C280-16 TIER 2 MAR AUX & DIESEL ELECTRIC PROP 4840EKW 5060BKW 60 HZ 900RPM
application/pdf
-
C280-16 TIER 2 MAR AUX & DIESEL ELECTRIC PROP 4700EKW 4920BKW 50 HZ 1000RPM
application/pdf
