Industrial engines

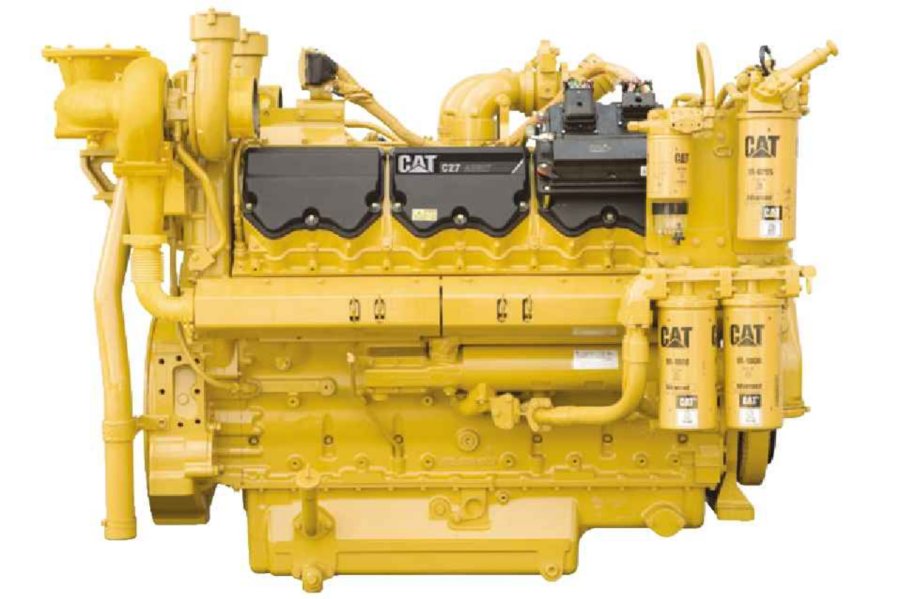

C27
No matter where they operate and no matter what the application, Cat® C27 Industrial Diesel Engines will deliver durable, reliable power that will keep your customers productive while lowering their operating costs to keep them profitable. Today's Cat® engines are the finest ever produced by Caterpillar - with a legacy of power and rugged reliability driven by the demands of performance.
| Maximum Power | 1150 hp |
|---|---|
| Maximum Torque | 3876 lb-ft @ 1400 rpm |
| Rated Speed | 1800-2100 rpm |
| Minimum Power | 800 hp |
| Emissions | U.S. EPA Tier 2 Equivalent |
|---|
| Engine Configuration | V-12, 4-Stroke-Cycle Diesel |
|---|---|
| Bore | 5.4 in |
| Stroke | 6 in |
| Displacement | 1649.5 in³ |
| Compression Ratio | 16.5:1 |
| Aspiration | Turbocharged Aftercooled (TA) |
| Combustion System | Direct Injection |
| Rotation from Flywheel End | Counterclockwise |
| Aftertreatment | - |
| Length | 75.5 in |
|---|---|
| Width | 57.6 in |
| Height | 51.9 in |
| Weight - Net Dry - Basic Operating Engine Without Optional Attachments | 6495 lb |
Air Inlet System
- Twin Turbocharged Aftercooled
- Air-to-Air Aftercooled
Control System
- Electronic governing, PTO speed control
- Programmable ratings
- Automatic altitude compensation
- Power compensation for fuel temperature
- Programmable low and high idle and total engine limit
- Electronic diagnostics and fault logging
- Engine monitoring system SAE J1939 broadcast and control
- ADEM™ A4 Electronic Control Unit (ECU)
Cooling System
- Thermostats and housing, vertical outlet
- Jacket water pump, centrifugal
- Water pump, inlet
Exhaust System
- Exhaust manifold, dry
- Optional exhaust outlet
Flywheels and Flywheel Housing
- SAE No. 1 flywheel housing
Fuel System
- MEUI injection
- Fuel filter, secondary (2 micron)
- ACERT™ Technology
- Fuel transfer pump
- Fuel priming pump
Lube System
- Crankcase breather
- Oil cooler
- Oil filler
- Lube oil filter
- Front sump oil pan
- Oil dipstick
- Gear driven oil pump
General
- Vibration damper
- Lifting eyes
- Cold start capability to -20° C (-4° F)
- Paint: Caterpillar yellow, with optional colors available at request
Need installed dimensions with enclosure and tank? See Model Configurations
