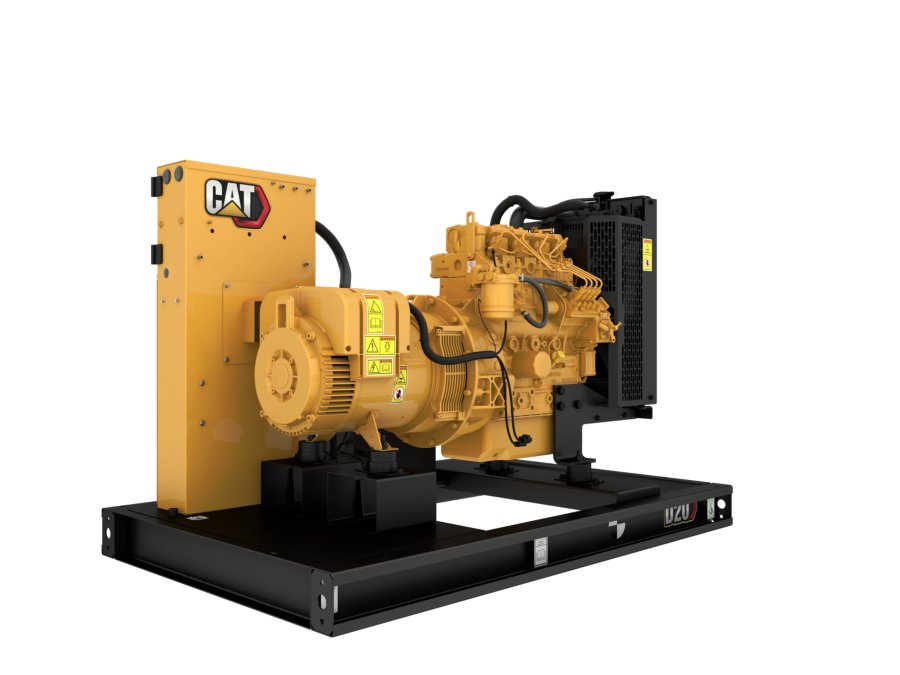

C2.2 | D20

Producing reliable power of 20 ekW at 60 Hz, our D20 diesel generator sets are designed to meet ISO 8528-5 transient response requirements. All D20 generator sets are EPA TIER 4I emissions compliant.

Frequency60 Hz
Emissions/Fuel StrategyUS EPA TIER 4I (EPA 40 CFR Part 1039 Interim Tier 4)
Voltage480/277, 240/120, 208/120, 600/346, 240/120 VAC
Duty CycleStandby

Have questions about this product?

Request a Quote

800.768.4200

Generator Set Specifications
Standby Rating	20.0 ekW
Frequency	60 Hz
Emissions/Fuel Strategy	US EPA TIER 4I (EPA 40 CFR Part 1039 Interim Tier 4)
Voltage	480/277, 240/120, 208/120, 600/346, 240/120 VAC
Speed	1800 rpm
Duty Cycle	Standby

Engine Specifications
Engine Model	Cat® C2.2, In-line 4, 4-cycle diesel
Bore	3.3 in
Stroke	3.9 in
Displacement	134 in³
Compression Ratio	23.3:1
Aspiration	Naturally Aspirated
Fuel System	Mechanical Cassette Type
Governor Type	Mechanical

Generator Set Dimensions
Length - Maximum	88.6 in
Width - Maximum	41.3 in
Height - Maximum	57.9 in
Dry Weight - Genset (maximum)	2052 lb

Engine

Electrical system, 12 VDC
Diesel Engine 2.2L, EPA TIER IV Interim

Exhaust System

Dry exhaust manifolds

Fuel System

Mechanical governor

Control Panel

GCCP 1.2. R220 / R221 / D350 voltage regulators

Telematics

PL444 Product link 4G LTE telematics

Generators and Generator Attachments

Anti-condensation Space heaters
M-Frame

Starting / Charging System

12V Starting motors

General

Operation and maintenance manuals
Parts book
Paint - Caterpillar yellow except rails are gloss black

Electric Power Ratings Guide
application/pdf
Download ↓
D20, 60 Hz, 20 ekW EPA TIER 4I (EPA 40 CFR Part 1039 Interim Tier 4) Spec Sheet
application/pdf
Download ↓
GCCP 1.2 Control Panel Data Sheet
application/pdf
Download ↓
GCCP 1.5 Control Panel Data Sheet
application/pdf
Download ↓

Need installed dimensions with enclosure and tank? See Model Configurations
