Power Rating
| Power Range |
15 - 25 ekW |
|---|
Generator Set Specifications
| Frequency |
50 / 60 |
|---|
| Minimum Rating |
15 ekW (15 kVA) |
|---|
| Maximum Rating |
25 ekW (25 kVA) |
|---|
Engine Specifications
| Displacement |
135 in³ |
|---|
| Aspiration |
Naturally Aspirated / Turbocharged |
|---|
| Governor Type |
Electrical Ischronous |
|---|
| Bore |
3.31 in |
|---|
| Stroke |
3.5 in |
|---|
| Emissions |
U.S. EPA Tier 3 |
|---|
| Configuration |
Inline 4, 4-Stroke Cycle diesel |
|---|
| Refill Capacity |
Lube Oil System w/oil filter change: 10.6 L (2.8 gal) |
|---|
| Oil Change Interval |
500 hrs |
|---|
| Rotation from Flywheel End |
Counterclockwise |
|---|
| Cooling |
Hex or Single Circuit Keel |
|---|
| Rated Engine Speed |
1500 / 1800 rpm |
|---|
Generator Set Dimensions
| Length |
47.9 in / 1,219 mm (open) 50.7 in / 1,290 mm (enclosed) |
|---|
| Width |
22.3 in / 567 mm (open) 24.7 in / 628 mm (enclosed) |
|---|
| Height |
32.8 in / 835 mm (open) 31.0 in / 775 mm (enclosed) |
|---|
| Engine Dry Weight |
857-1,027 lb / 386-466 kg |
|---|
Standard Equipment
- Single element air cleaner
- Water-cooled exhaust manifold
- Single or Three phase brushless generator
- 12 or 24 volt electric starting motor
- 12 volt 55 amp alternator
- Single sided service points
- Anti-vibration mounts.
- Electronic automatic safety shutdowns
-

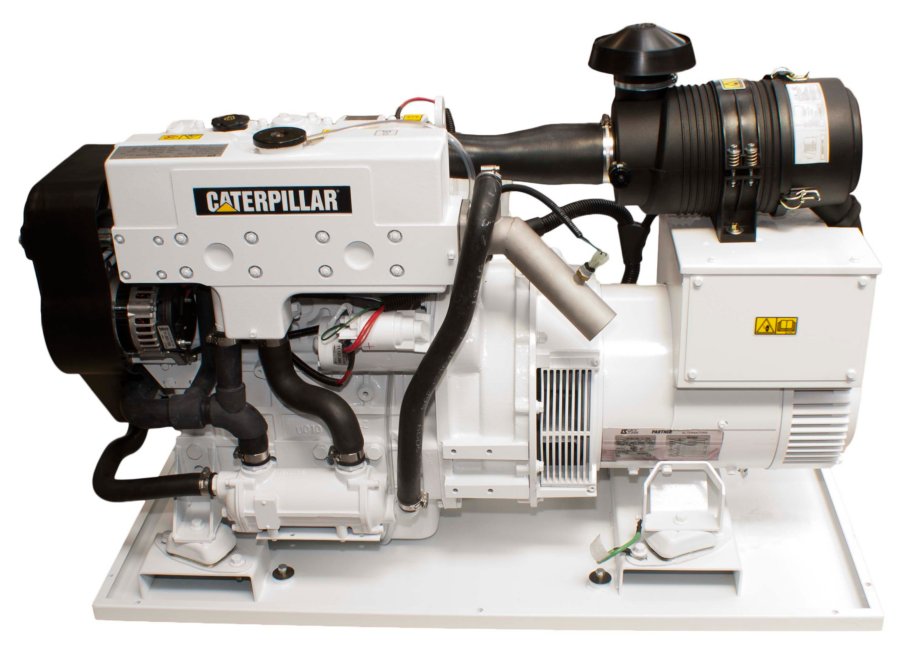

C2.2 Marine Generator Set Spec Sheet (15 ekW - 25 ekW)
