Industrial engines

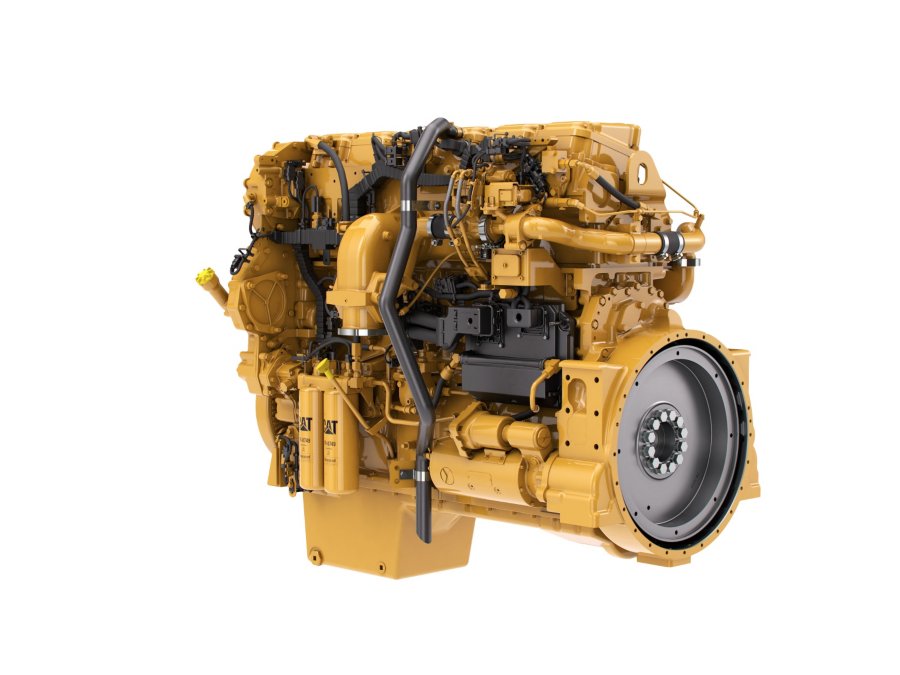

C18
The Cat® C18 Industrial Diesel Engine is offered in ratings ranging from 429-597 kW (575-800 hp) @ 1800-2000 rpm. Industries and applications powered by C18 engines include: Agriculture, Ag Tractors, Aircraft Ground Support, Bore/Drill Rigs, Chippers/Grinders, Compactors/Rollers, Compressors, Construction, Cranes, Dredgers, Forestry, General Industrial, Hydraulic Power Units, Irrigation Equipment, Material Handling, Mining, Mobile Earthmoving Equipment, Paving Equipment, Pumps, Shovels/Draglines, Surface Hauling Equipment and Trenchers.
| Maximum Power | 800 hp |
|---|---|
| Maximum Torque | 2736 lb-ft @ 1300 rpm |
| Rated Speed | 1800-2000 |
| Minimum Power | 575 hp |
| Emissions | U.S. EPA Tier 4 Final, EU Stage V |
|---|
| Number of Cylinders | 6 vertical in-line |
|---|---|
| Displacement | 1104.5 in³ |
| Aspiration | Turbocharged-Aftercooled (TA) or Series Twin Turbocharged Aftercooled (TTA) |
| Bore | 5.7 in |
| Stroke | 7.2 in |
| Combustion System | Direct Injection |
| Compression Ratio | 16.0:1 |
| Aftertreatment | DOC+DPF+SCR or DOC |
| Rotation from Flywheel End | Anti-clockwise |
| Cooling System | Liquid |
| Length | 61 in |
|---|---|
| Width | 45 in |
| Height | 53 in |
| Dry Weight | 3875 lb |
| Wet Weight | 3945 lb |
| Note 1 | *Final dimensions dependent on selected options |
|---|
-
Download ↓C18 >560 kW Industrial specification sheet (U.S. EPA Tier 4 FInal/EU Stage V)
-
Download ↓C18 <560 kW Industrial specification sheet
-
Download ↓Industrial engine ratings guide
Need installed dimensions with enclosure and tank? See Model Configurations
