Auxiliary engines

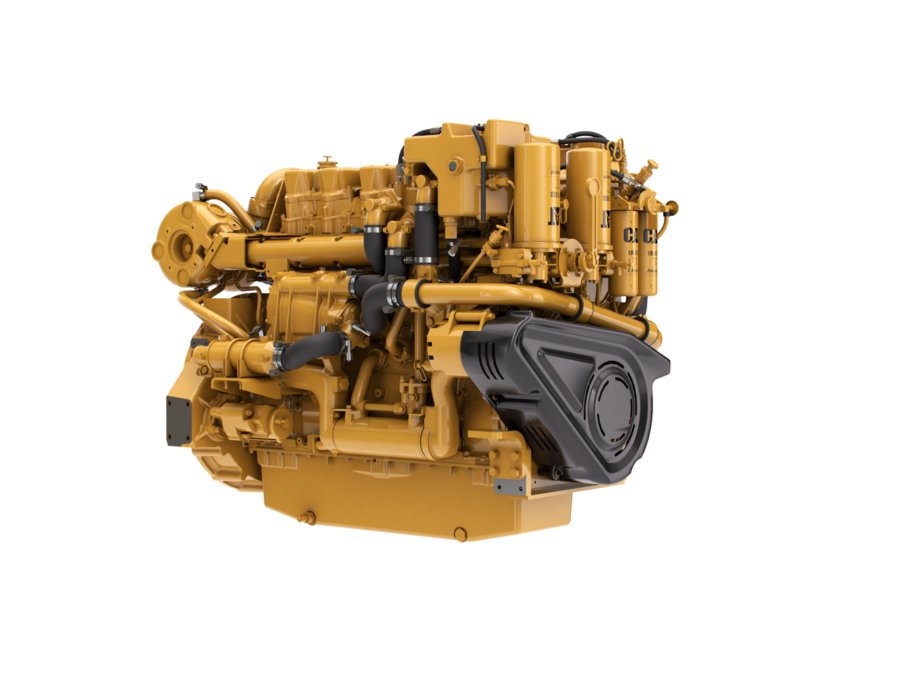

C18
C18 auxiliary/generator set engines incorporate a separate circuit aftercooling system (SCAC) for all configurations. The primary advantage of the SCAC systsem is reduced aftercooler corrosion since no sea water circulates through the aftercooler. Many other improvements on these engines also contribute to minimizing owning and operating costs. The EPA Tier 3, IMO II/III, EU IWW, and China II compliant ratings are available with heat exchanger or keel cooled options. All major MCS type approvals are available from the factory.
- Frequency50 / 60
| Power Range | 404 - 803 hp |
|---|---|
| Minimum Rating | 404.0 BHP |
| Maximum Rating | 803.0 BHP |
| Frequency | 50 / 60 |
|---|
| Emissions | IMO II/III, EPA T 3, EU IWW, EU Stage V, China II |
|---|---|
| Aspiration | TA, TTA |
| Bore | 5.7 in |
| Displacement | 1106.0 in³ |
| Configuration | In-Line 6, 4-Stroke-Cycle Diesel |
| Stroke | 7.2 in |
| Rotation from Flywheel End | Counterclockwise |
| Length | 73.0 in |
|---|---|
| Height | 51.2 in |
| Dry Weight | 1950.0 lb |
| Width | 44.6 in |
AIR INLET SYSTEM
- Separate circuit after-cooled (SCAC)
- Open Crankcase Ventilation (OCV) system
- Turbocharger, jacket water cooled
- Turbocharger inlet, 152 mm (6 in) OD straight connection
CONTROL SYSTEM
- Programmable low idle
- Electronic diagnostics and fault logging
- Electronic fuel/air ratio control
- Engine Protection Mode for extended ambient conditions - EPA Tier 3 Ratings Only
- 70-pin customer connector
- Three types of throttle inputs (primary/ secondary PWM, 0-5V, 4-20mA)
- Programmable ECM Shutdowns for: High Jacket Water Coolant Temp Low Engine Oil Pressure Engine Overspeed
COOLING SYSTEM
- Separate Circuit After-Cooling (SCAC) for both HEX and Keel cooled engines
- Engine JW and SCAC Shell & Tube Heat Exchangers for HEX cooled engines
- SCAC pump, gear driven, for HEX cooled engines only
- Jacket water pump, gear driven
- Auxiliary water pump, gear driven
- Sea water pump, bronze impeller, gear driven
- SCAC and JW shunt tanks for maintaining proper pump inlet pressures
EXHAUST SYSTEM
- 152 mm (6 in) round flanged outlet
- Water-cooled exhaust manifold & turbocharger
FLYWHEELS & FLYWHEEL HOUSINGS
- Flywheel Housing, SAE No. 0
- Flywheel, 18 inch, 136 teeth
- SAE standard rotation
FUEL SYSTEM
- Front service simplex fuel system
- Fuel transfer pump, gear driven
- Manual fuel priming pump
- Hybrid fuel line design
LUBE SYSTEM
- Front service simplex oil system
- Center sump oil pan: Deep 500 hour oil change interval, Shallow 250 hour oil change interval
- Front and top service oil filler locations
- Front service dipstick
- Oil pump, gear driven
MOUNTING SYSTEM
- Front support - adjustable
POWER TAKE-OFFS
- Poly-V groove for alternator drive
GENERAL
- Front damper guard
- Front service engine
- Common electrical bonding point
- Engine does not ship with zinc components
- NOTE: These engines are for constant speed generator set applications only, and NOT to be used for variable speed applications
-
Download ↓C18 Marine Auxiliary Engine Spec Sheet (301 bkW - 599 bkW)
Need installed dimensions with enclosure and tank? See Model Configurations
