Diesel generator sets

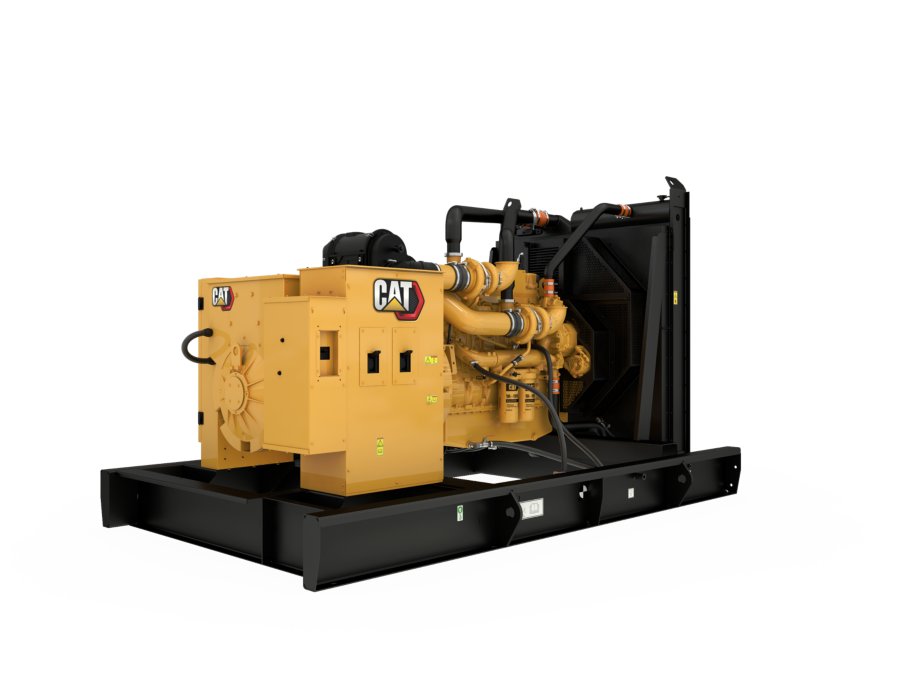

C18 (60 Hz)
The C18 diesel generator sets has been developed for mission critical, standby and prime applications. Producing reliable power from 455 to 600 ekW at 60 Hz, meeting ISO 8528-5 transient response requirements and built to accept 100 % rated load in one step. The engines are U.S. EPA Certified for Stationary Emergency Use Only (Tier 2 Nonroad Equivalent Emission Standards) Emissions / Fuel Strategy.
- Maximum Rating600 ekW
- Minimum Rating455 ekW
- Emissions/Fuel StrategyU.S. EPA Cert., Tier 2
- Voltage208 to 600 Volts
- Frequency60 Hz
- Duty CycleStandby, Prime
| Maximum Rating | 600 ekW |
|---|---|
| Minimum Rating | 455 ekW |
| Emissions/Fuel Strategy | U.S. EPA Cert., Tier 2 |
| Voltage | 208 to 600 Volts |
| Frequency | 60 Hz |
| Speed | 1800 rpm |
| Duty Cycle | Standby, Prime |
| Engine Model | C18 ATAAC, I-6, 4-Stroke Water-Cooled Diesel |
|---|---|
| Bore | 5.71 in |
| Stroke | 7.2 in |
| Displacement | 1106.4 l |
| Compression Ratio | 14.5:1 |
| Aspiration | Air to Air Aftercooled |
| Fuel System | Electronic unit injection |
| Governor Type | Adem™A4 |
| Length - Maximum | 5550 in |
|---|---|
| Width - Maximum | 80.9 in |
| Height - Maximum | 107.8 in |
Air Inlet
- Air cleaner
Air Inlet System
- Turbocharger
- Light duty air cleaner
- Aftercooler core
Cooling
- Caterpillar extended life coolant
- Fan drive, battery charging alternator drive
- Coolant drain line with valve
- Radiator and cooling fan with guard
- Package mounted radiator
Exhaust
- Exhaust flange outlet
Exhaust System
- Stainless steel exhaust flex gaskets, raincap and SAE exhaust flange for customer use - shipped loose
Fuel System
- Standard 8 hour open set fuel tank
Fuel
- Secondary fuel filters
- Fuel priming pump
- Primary fuel filter with integral water separator
Generator and Attachments
- Matched to the performance and output characteristics of Cat engines
- Segregated low voltage (AC/DC) wiring panel
- Power center, IP22
- A Frame generator - IP21 protection
- Integrated voltage regulator (IVR)
- Mandatory option circuit breaker, IEC, 3 pole, mounted in power centre
- Integrated voltage regulator (IVR)
Generator
- IP23 Protection
- Matched to the performance and output characteristics of Cat engines
- Load adjustment module provides engine relief upon load impact and improves load acceptance and recovery time
Power Termination
- Busbar
Control System
- GCCP 1.2
Governing System
- Cat electronic governor (ADEM A4)
Control Panel
- EMCP 4 Genset controller
Lube System
- Lubricating oil
- Oil drain valves
Mounting System
- Captive linear vibration isolators between base and engine-generator. includes lifting provisions and termination points for coolant and lube oil drain lines
Mounting
- Rubber vibration isolators
Starting/Charging
- 24 Volt battery with rack and cables
- 24 volt starting motor
- Batteries
General
- Engine and alternator pre-paint, Caterpillar yellow
- Paint - Caterpillar yellow except rails and radiators gloss black
-
Download ↓Electric Power Ratings Guide
-
Download ↓C18, 60 Hz, 550 ekW Standby, 500 ekW Prime, TIER II Non-Road Spec Sheet
-
Download ↓C18, 60 Hz, 550 - 570 ekW spec sheet
-
Download ↓C18, 60 Hz, 600 ekW Standby, 545 ekW Prime, TIER II Non-Road Spec Sheet
-
Download ↓C18, 60 Hz, 650 ekW Standby, 600 ekW Prime, TIER II Spec Sheet
-
Download ↓C18, 60 Hz, 700 ekW Standby, 635 ekW Prime, TIER II Spec Sheet
-
Download ↓C18, 60 Hz, 750 ekW Standby, 680 ekW Prime, TIER II Spec Sheet
-
Download ↓C18, 60 Hz, 750 ekW Standby, 680 ekW Prime, EPA TIER III Spec Sheet
-
Download ↓C18 for Industrial Applications
-
Download ↓GCCP 1.2 Control Panel Data Sheet
-
Download ↓GCCP 1.5 Control Panel Data Sheet
Need installed dimensions with enclosure and tank? See Model Configurations
