Marine generator sets

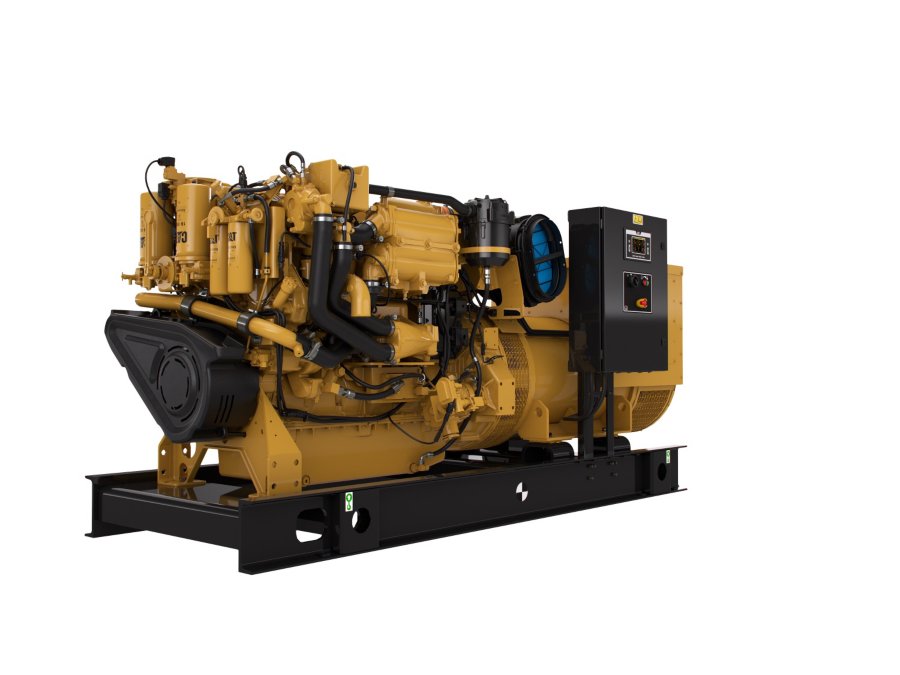

C18
The C18 is the latest generator and brings commonality with our petroleum products as well as interfacing improvements. We have also taken this opportunity to add new price list options. All engine ratings and emissions certifications are the same, however we have been able to increase the power output of the generator for 12 of the 14 ratings.
- Frequency50 / 60
- Minimum Rating260 ekW (325 kVA)
- Maximum Rating565 ekW (706 kVA)
| Power Range | 260 - 565 ekW |
|---|
| Frequency | 50 / 60 |
|---|---|
| Minimum Rating | 260 ekW (325 kVA) |
| Maximum Rating | 565 ekW (706 kVA) |
| Configuration | In-line 6, 4-Stroke-Cycle Diesel |
|---|---|
| Aspiration | Turbocharged - Aftercooled |
| Bore | 5.7 in |
| Stroke | 7.2 in |
| Fuel System | MEUI |
| Oil Change Interval | 250 / 500 hours |
| Governor | Electronic |
| Refill Capacity | 68 |
| Cooling | Heat Exchanger, Keel, Radiator Cooled |
| Rotation from Flywheel End | SAE No. (136 teeth) |
| Emissions | EPA Tier 3, IMO II, EU IWW, EU Stage V, China II |
|---|
| Height | 94.8 in |
|---|---|
| Length | 55.6 in |
| Width | 66.9 in |
| Weight - Approximate | 13396 lb |
| Length | 119.6 in |
|---|---|
| Height | 64.9 in |
| Width | 55.6 in |
| Weight - Approximate | 9747 lb |
| Excitation | SRMP |
|---|---|
| Insulation | Class H |
| IP Rating | IP23 (standard), IP 44 (optional) |
| Voltage Regulator | CDVR (Digital Voltage) |
Air inlet system
- Separate circuit after-cooled (SCAC)
- Open Crankcase Ventilation (OCV) system
- Turbocharger, jacket water cooled
- Turbocharger inlet, 152 mm (6 in) OD straight connection
Cooling system
- SCAC pump, gear driven, for HEX cooled engines only
- Jacket water pump, gear driven
- SCAC and JW shunt tanks for maintaining proper pump inlet pressures
Exhaust system
- Water-cooled exhaust manifold & turbocharger
- Round flanged exhaust outlet
Fuel system
- Hybrid fuel line design
- Fuel transfer pump, gear driven
- Front service simplex fuel system
- Manual fuel priming pump
Lube system
- Center sump oil pan: Deep 500 hour oil change interval
- Front and top service oil filler locations
- Front service dipstick
Lube System
- Oil pump, gear driven
Mounting system
- Vibration Isolators
- Formed C-channel rails
Control system
- Common Interface to all Genset Control Panels
- Programmable Low Idle
- Electronic Diagnostics and Fault Logging
- Electronic Fuel/Air Ratio Control
Control System
- Programmable ECM Shutdowns for: High Jacket Water Coolant Temp Low Engine Oil Pressure Engine Overspeed
-
Download ↓C18 Marine Generator Set Spec Sheet (260 ekW - 565 ekW)
Need installed dimensions with enclosure and tank? See Model Configurations
