Power units

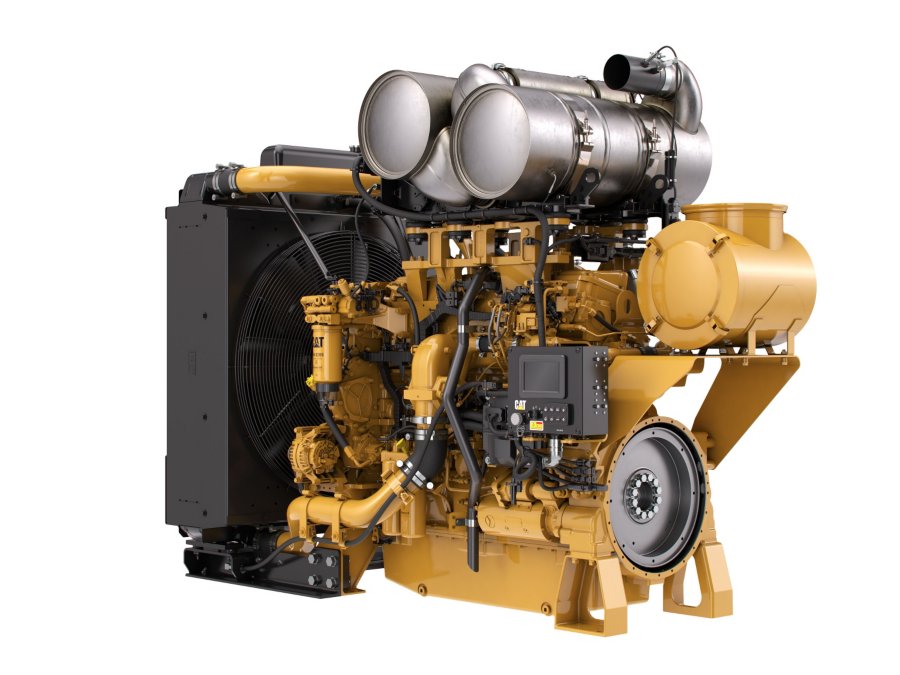

C18 (<560 kW)
The Cat® C18 Industrial Power Unit is offered in ratings ranging from 429-470 bkW (575-630 bhp)@ 1800-1900 rpm. Conveniently pre-configured for a wide range of applications, the Cat® Industrial Power Unit is a complete power package containing a radiator, flywheel, alternator and alternator wiring completely pre-assembled for fast, straightforward installation in a number of OEM, customer and packager applications. These fuel efficient units are ready made for irrigation, industrial, mining and other pump applications.
| Maximum Power | 630 hp |
|---|---|
| Maximum Torque | 2177 lb-ft @ 1300 rpm |
| Rated Speed | 1800-2000 rpm |
| Minimum Power | 575 hp |
| Emissions | U.S. EPA Tier 4 Final, EU Stage V, China Nonroad Stage IV |
|---|
| Engine Configuration | Inline 6, 4-Stroke-Cycle Diesel |
|---|---|
| Bore | 5.7 in |
| Stroke | 7.2 in |
| Displacement | 1104.5 in³ |
| Compression Ratio | 16.0:1 |
| Aspiration | Turbocharged Aftercooled (TA) |
| Rotation from Flywheel End | Counterclockwise |
| Aftertreatment | DOC+DPF+SCR |
| Length | 99.7 in |
|---|---|
| Width | 48.9 in |
| Height | 79 in |
| Weight | 5842 lb |
| Width | 43.8 in |
|---|---|
| Height | 25.7 in |
| Weight | 591 lb |
| Diameter | 13 in |
|---|
| Length | 33.6 in |
|---|---|
| Width | 11.3 in |
| Height | 21.7 in |
| Weight | 42.8 lb |
| Volume Capacity | 51.1 qt (US) |
Air Inlet System
- Turbocharged
- Air-to-Air Aftercooled
- Mid-mount turbocharged system with front and rear exhaust configurations (Tier 4 Final, Stage IV)
Control System
- Electronic control system
- Over-foam wiring harness
- Automatic altitude compensation
- Power compensated for fuel temperature
- Remote fan control
- Configurable software features
- Engine monitoring system SAE J1939 broadcast and control
- Integrated Electronic Control Unit (ECU)
Cooling System
- Thermostats and housing, vertical outlet
- Centrifugal water pump
- Guidance on cooling system design available through your dealer to ensure equipment reliability
Flywheels and Flywheel Housing
- Choice of SAE No. 0 or SAE No. 1 flywheel housing
- Available SAE No. 1 power take off with optional SAE A, SAE B or SAE C power take off drives. Engine power can also be taken from the front of the engine with optional attachments. (Tier 4 Final, Stage IV).
Fuel System
- MEUI injection
- Primary fuel filter
- Secondary fuel filters
- Fuel transfer pump
- Electronic fuel priming
Lube System
- Open crankcase ventilation system
- Oil cooler
- Oil filler
- Lube oil filter
- Oil dipstick
- Gear driven oil pump
- Choice of front, rear or center sumps
- Open crankcase ventilation system with fumes disposal (optional OCV filter system) (Tier 4 Final, Stage IV)
Power Take Off (PTO)
- SAE A, SAE B or SAE C power take off (PTO) drives. Engine power can also be taken from the front of the engine on some applications.
General
- Paint: Caterpillar yellow, with optional colors available at request
U.S. EPA Tier 4 Interim, EU Stage IIIB Aftertreatment / Clean Emissions Control Equipment
- Cat Regeneration System
- Aftertreatment information applies to ratings from 429-522 bkW (575-700 bhp)
- Clean Emissions Module (CEM), consisting of Diesel Particulate Filter (DPF) and Diesel Oxidation Catalyst (DOC)
- NOx Reduction System (NRS)
- Flex pipe connection kit with 90° rotatable elbows to attach to Cat Regeneration System Inlet
- Available in 12 volt or 24 volt systems
U.S. EPA Tier 4 Final, EU Stage IV Aftertreatment/ Clean Emissions Control Equipment
- Cat Regeneration System
- Aftertreatment information applies to ratings from 429-522 bkW (575-700 bhp)
- Clean Emissions Module (CEM), consisting of Diesel Particulate Filter (DPF) and Diesel Oxidation Catalyst (DOC)
- Aftertreatment Electronic Control Unit (ECU)
- NOx Reduction System (NRS)
- Pump Electronic Control Unit (PETU)
- Selective Catalytic Reduction (SCR)
- Available in 12V or 24V systems
Need installed dimensions with enclosure and tank? See Model Configurations
