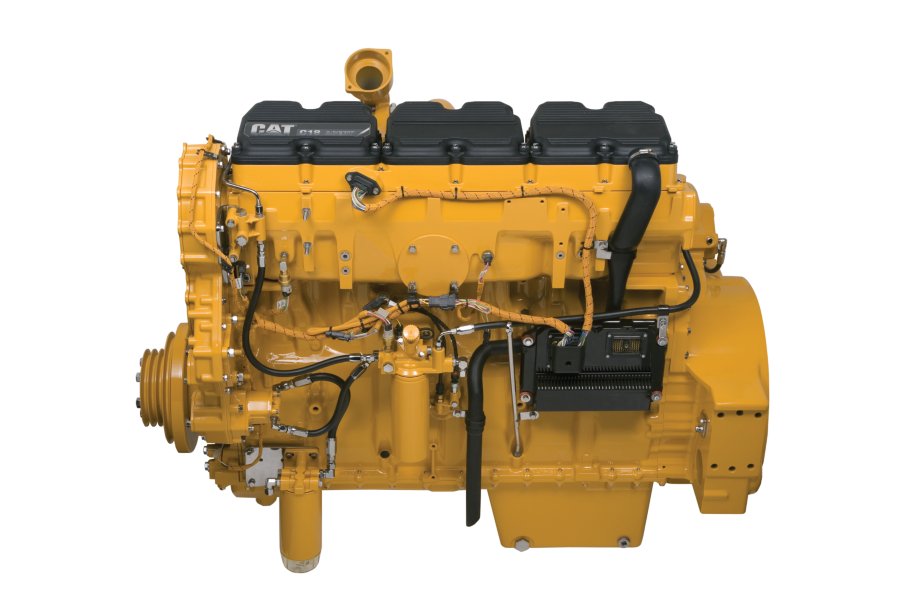

C18
On construction sites and mining operations, in agriculture and forestry, and in a wide range of industries, Cat® C18 Industrial Diesel Engines deliver the power, performance and durability to take on the biggest challenges. More importantly, they're backed by the world-class Cat dealer network ready to service and support every Cat® industrial engine.
| Maximum Power | 800 hp |
|---|---|
| Maximum Torque | 2696 lb-ft @ 1400 rpm |
| Rated Speed | 1800-2100 rpm |
| Minimum Power | 575 hp |
| Emissions | China Nonroad III, U.S. EPA Tier 3 equivalent or U.S. EPA Tier 2 equivalent, EU Stage IIIA equivalent, or Non-certified |
|---|
| Engine Configuration | Inline 6, 4-Stroke-Cycle Diesel |
|---|---|
| Bore | 5.7 in |
| Stroke | 7.2 in |
| Displacement | 1104.5 in³ |
| Compression Ratio | 16.3:1 |
| Aspiration | Turbocharged Aftercooled (TA) |
| Combustion System | Direct Injection |
| Rotation from Flywheel End | Counterclockwise |
| Aftertreatment | - |
| Length | 55.7 in |
|---|---|
| Width | 38.3 in |
| Height | 49.5 in |
| Weight - Net Dry - Basic Operating Engine Without Optional Attachments | 3688 lb |
Air Inlet System
- Turbocharged Aftercooled (429-470 bkW, 575-630 bhp)
- Twin Turbocharged Aftercooled (522-597 bkW, 700-800 bhp)
- Air-to-Air Aftercooled
Charging System
- Charging alternator 24 volt, 50 amp
Control System
- Electronic governing, PTO speed control
- Programmable ratings
- Automatic altitude compensation
- Power compensation for fuel temperature
- Programmable low and high idle and total engine limit
- Electronic diagnostics and fault logging
- Engine monitoring system SAE J1939 broadcast and control
- ADEM™ A4 Electronic Control Unit (ECU)
Cooling System
- Thermostats and housing, vertical outlet
- Jacket water pump, centrifugal
- Water pump, inlet
Exhaust System
- Exhaust manifold, dry
- Optional exhaust outlet
Flywheels and Flywheel Housing
- SAE No. 1 or SAE No. 0 flywheel housing
Fuel System
- MEUI injection
- Fuel filter, secondary (2 micron)
- Fuel filter, tertiary (2 micron)
- ACERT™ Technology
- Fuel transfer pump
- Fuel priming pump
Lube System
- Crankcase breather
- Oil cooler
- Oil filler
- Lube oil filter
- Front sump oil pan
- Oil dipstick
- Gear driven oil pump
General
- Vibration damper
- Lifting eyes
- Cold start capability to -20° C (-4° F)
- Paint: Caterpillar yellow, with optional colors available at request
Need installed dimensions with enclosure and tank? See Model Configurations
