Diesel generator sets

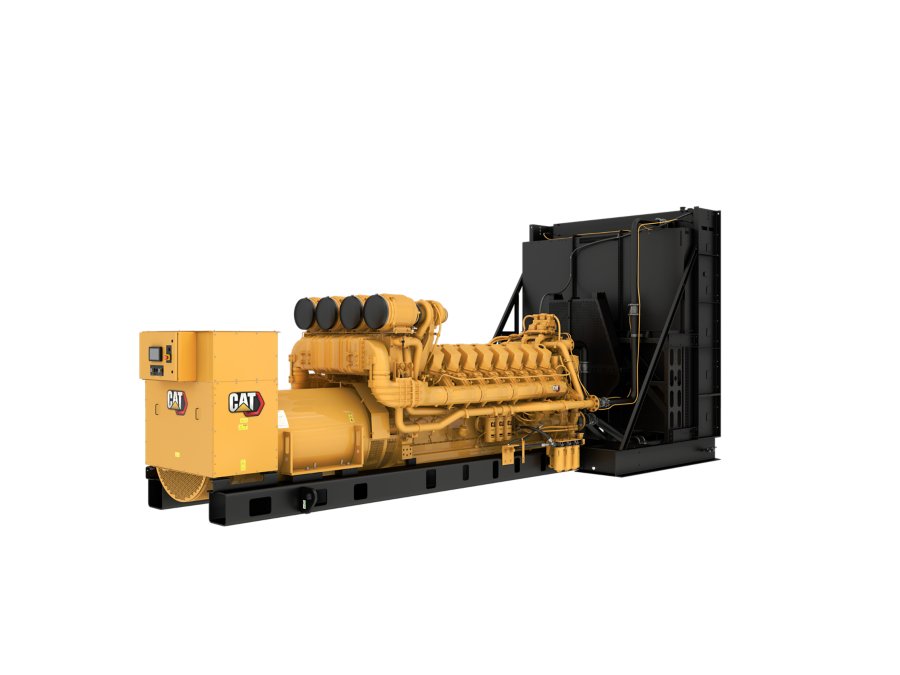

C175-16 (60 Hz)
Producing reliable power from 2500 - 3365 ekW at 60 Hz, our C175-16 diesel generator sets are made to meet your mission critical, continuous, standby and prime applications. We've designed each to ISO 8528-5 transient response requirements and to accept 100% rated load in one step. The generator set is Low Fuel Consumption, U.S. EPA Certified for Stationary Emergency Use Only (Tier 2 Nonroad Equivalent Emission Standards) certified.
- Emissions/Fuel StrategyLow Fuel, Tier 2
- Voltage480 to 13800 Volts
- Frequency60 Hz
- Duty CycleStandby, Mission Critical, Prime, Continuous
- Maximum Rating3365 ekW
- Minimum Rating2500 ekW
| Standby Rating | 3365(no fan)/3250/3100(no fan)/3000 ekW |
|---|---|
| Prime Power Rating | 3115(no fan)/3000/2825(no fan)/2725 ekW |
| Emissions/Fuel Strategy | Low Fuel, Tier 2 |
| Voltage | 480 to 13800 Volts |
| Frequency | 60 Hz |
| Speed | 1800 RPM |
| Duty Cycle | Standby, Mission Critical, Prime, Continuous |
| Maximum Rating | 3365 ekW |
| Minimum Rating | 2500 ekW |
| Engine Model | C175-16 SCAC, V-16, 4-Stroke Water-Cooled Diesel |
|---|---|
| Bore | 6.89 in |
| Stroke | 8.66 in |
| Displacement | 6456.31 in³ |
| Compression Ratio | 16.7:1 |
| Aspiration | Turbo Aftercooled |
| Fuel System | Common Rail |
| Governor Type | ADEM� A4 |
| Length - Minimum | 250.9 in |
|---|---|
| Length - Maximum | 330.6 in |
| Width - Minimum | 82.7 in |
| Width - Maximum | 124.3 in |
| Height - Minimum | 86.9 in |
| Height - Maximum | 134.2 in |
| Dry Weight - Genset (minimum) | 42750 lb |
| Dry Weight - Genset (maximum) | 57774 lb |
Air Inlet System
- 4 x Single element canister with service indicator(s).
Control Panel
- 2 Programmable relay outputs (Form C)
- Low coolant level
- Over/under voltage
- Coolant temperature
- Serial annunciator module data link
- Alarm acknowledge
- Text alarm/event descriptions
- Volts (L-L & L-N)
- Reverse power
- Over/under frequency
- Environmental sealed front face
- Programmable protective relaying functions
- Speed adjust
- Generator phase sequence
- Low coolant temperature
- Generator mounted - rear facing
- Overspeed
- Controls
- Frequency (Hz)
- Engine cycle crank
- Engine cool-down timer
- Warning/shutdown Indicators:
- Lamp test
- 2 Programmable digital outputs
- 6 Programmable digital inputs
- High coolant temperature
- Customer data link (Modbus RTU)
- Auto/start/stop control
- Emergency stop pushbutton
- RPM
- Digital Indicators
- Communications
- Accessory module data link
- Oil pressure (psi, kPa or bar)
- Low oil pressure
- Overcurrent
- Emergency stop
- 24 Volt DC operation
- 4 Programmable relay outputs (Form A)
- Failure to start (overcrank)
- True RMS AC metering, 3-phase, +/-2% accuracy
- Power factor (per phase & average)
- Operating hours
- DC volts
- Amps (per phase & average)
- Cat ECS 100
- Reverse reactive power
Exhaust System
- Bolted flange, with bellow for each turbo
- Exhaust flange outlet
Fuel System
- Engine mounted filters #REF!
- Filters x 3
- 10 Micron spin on yype
- Secondary/tertiary fuel filters
- 4 Micron spin on type
- Primary fuel filter water/fuel water separator
Generators and Attachments
- Right side extension box, bottom cable entry
- IEC platinum stator RTDs
- Reactive droop capability
- 3 Phase voltage sensing
- (MV) Busbar connections, right side extension box, bottom cable entry
- Class F temperature rise at 40C ambient
- Anti-condensation space heater
- NEMA Class H insulation
- 6 Leads
- Class H temperature rise at 40C ambient
- Voltage regulator
- Exciter diode monitor
- Form wound
- RFI suppression
- (LV) Busbar connections, top/center mounted, top cable entry
- 3 Phase brushless
- 60 Hz models: NEMA standard hole pattern
- Permanent magnet excitation (PMG)
- Min / max exciter limiter
- Salient pole
Governing System
- Redundant shutdown (Overspeed protection through a duplicate speed sensing system)
- ADEM A4
Lube System
- Oil filter, filler and dipstick
- Integral lube Oil cooler
- Oil drain lines and valve
- Fumes disposal
- Lubricating oil
- Prelube - required with prime, continuous, and standby
- Gear type lube oil pump
Mounting Systems
- Rails - Engine/generator
- Rubber anti-vibration mounts - shipped loose
- Dual 24 volt electric starting motors
- Battery disconnect switch
- Batteries and battery rack w/cables
Power Termination
- Busbar
Service Instructions
- Two PM inspections
General
- Paint - Caterpillar yellow with high gloss black rails & radiator
- SAE standard rotation
- LH Service
- Flywheel and flywheel housing-SAE No. 00
-
Download ↓Electric Power Rating Guide
-
Download ↓C175-16, 60 Hz, 3000 ekW Standby/MC.2725 ekW Prime, 2500 ekW Cont., Low Fuel Consumption (with fan) Spec Sheet
-
Download ↓C175-16, 60 Hz, 3000 ekW Standby/MC.2725 ekW Prime, 2500 ekW Cont., U.S. EPA Stationary Emergency (Tier 2) (with fan) Spec Sheet
-
Download ↓C175-16, 60 Hz, 3000 ekW Standby/MC.2725 ekW Prime, 2500 ekW Cont., U.S. EPA Stationary Emergency (Tier 2) + N. Virginia NOx Requirements (with fan) Spec Sheet
-
Download ↓C175-16, 60 Hz, 3100 ekW Standby/MC, 2825 ekW Prime, 2600 ekW Cont., Low Fuel Consumption (without fan) Spec Sheet
-
Download ↓C175-16, 60 Hz, 3100 ekW Standby/MC, 2825 ekW Prime, 2600 ekW Cont., U.S. EPA Stationary Emergency (Tier 2) (without fan) Spec Sheet
-
Download ↓C175-16, 60 Hz, 3100 ekW Standby/MC, 2825 ekW Prime, 2600 ekW Cont., U.S. EPA Stationary Emergency (Tier 2) + N. Virginia NOx Requirements (without fan) Spec Sheet
-
Download ↓C175-16, 60 Hz, 3250 ekW Standby/MC, 3000 ekW Prime, U.S. EPA Stationary Emergency (Tier 2) (with fan) Spec Sheet
-
Download ↓C175-16, 60 Hz, 3365 ekW Standby/MC, 3115 ekW Prime, U.S. EPA Stationary Emergency (Tier 2) (without fan) Spec Sheet
-
Download ↓C175-16, 60 Hz, 2725 ekW, Prime-DCP, U.S. EPA Stationary Emergency Use Only (Tier 2) (with fan) Spec Sheet
-
Download ↓C175-16, 60 Hz, 2725 ekW, Prime-DCP, Low Fuel Consumption (with fan) Spec Sheet
-
Download ↓C175-16, 60 Hz, 2825 ekW, Prime-DCP, U.S. EPA Stationary Emergency Use Only (Tier 2) (without fan) Spec Sheet
-
Download ↓C175-16, 60 Hz, 2825 kVA, Prime-DCP, Low Fuel Consumption (without fan) Spec Sheet
-
Download ↓C175-16, 60 Hz, 3000 ekW, Prime-DCP, U.S. EPA Stationary Emergency Use Only (Tier 2) (with fan) Spec Sheet
-
Download ↓C175-16, 60 Hz, 3115 ekW, Prime-DCP, U.S. EPA Stationary Emergency Use Only (Tier 2) (without fan) Spec Sheet
