Diesel generator sets

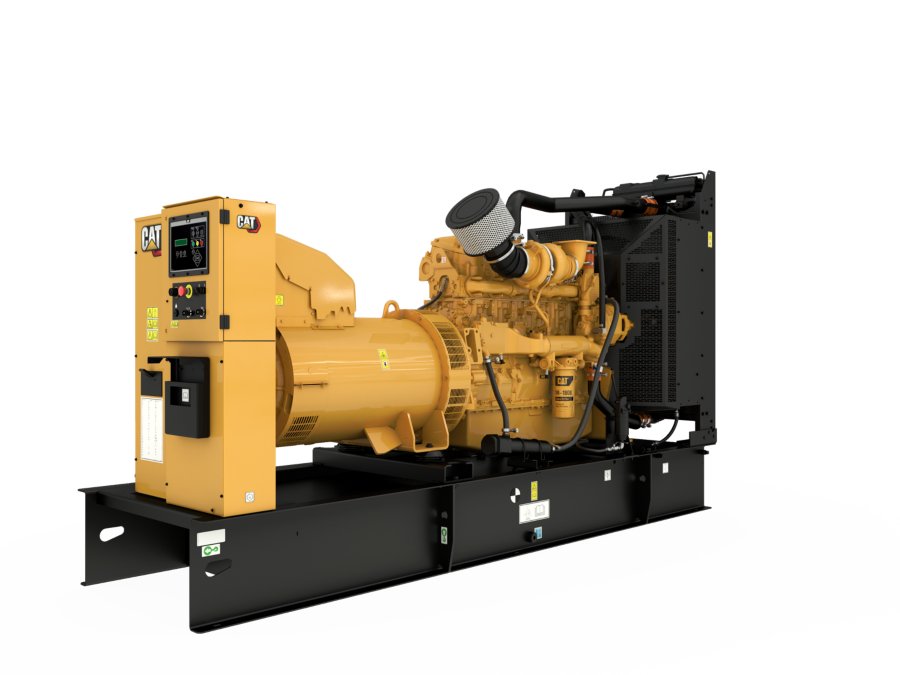

C15 (50 Hz) China Non Road
The C15 diesel generator sets have been developed for your mission critical, standby and prime applications. Producing reliable power from 365 to 550 kVA at 50 Hz, meeting ISO 8528-5 transient response requirements and built to accept 100 % rated load in one step. The engines are certified Low Fuel Consumption, U.S. EPA Certified for Stationary Emergency Use Only (Tier 2 or Tier 3 Nonroad Equivalent Emission Standards), EU Stage IIIA Nonroad Emission Standards, China Nonroad III Emission Standards Emissions / Fuel Strategy.
- Maximum Rating550 kVA
- Minimum Rating365 kVA
- Emissions/Fuel StrategyLow Fuel, Tier 2 or 3
- Voltage208 to 600 Volts
- Frequency50 Hz
- Duty CycleStandby, Prime
| Maximum Rating | 550 kVA |
|---|---|
| Minimum Rating | 365 kVA |
| Emissions/Fuel Strategy | Low Fuel, Tier 2 or 3 |
| Voltage | 208 to 600 Volts |
| Frequency | 50 Hz |
| Speed | 1500 rpm |
| Duty Cycle | Standby, Prime |
| Engine Model | C15 ATAAC, I-6, 4-Stroke Water-Cooled Diesel |
|---|---|
| Bore | 5.4 in |
| Stroke | 6.75 in |
| Displacement | 927.56 in³ |
| Compression Ratio | 16.1:1 |
| Aspiration | Air to Air Aftercooled |
| Fuel System | MEUI |
| Governor Type | Adem™A4 |
| Length - Maximum | 222.7 in |
|---|---|
| Width - Maximum | 90 in |
| Height - Maximum | 93.2 in |
Air System
- Aftercooler core
- Turbocharger
- Air cleaner - Non canister disposable paper filter
Air Inlet
- Air cleaner
Control Panel
- GCCP 1.3
- GCCP 1.3
Cooling
- Package mounted radiator
Cooling System
- Radiator and cooling fan with guard
- Coolant drain line with valve
- Caterpillar extended life coolant
- Fan drive, battery charging alternator drive
Fuel
- Secondary fuel filters
- Fuel priming pump
- Primary fuel filter with integral water separator
Exhaust
- Stainless steel exhaust flex, gaskets, raincap & SAE exhaust flange for customer use - shipped loose
- Exhaust flange outlet
Fuel System
- Standard open set fuel tank/base supplied
- Base, formed steel with single wall integral 8-hour fuel tank
Generator
- IP23 Protection
- Matched to the performance and output characteristics of Cat engines
- Load adjustment module provides engine relief upon load impact and improves load acceptance and recovery time
Generator and Attachments
- IP23 Protection
- A Frame generator - IP21 Protection
- Segregated low voltage (AC/DC) wiring panel
- Mandatory option circuit breaker, IEC, 3 pole, mounted in power centre
- Optional LC Frame generator - IP23 Protection
- Power center, IP22
- Integrated voltage regulator (IVR)
Power Termination
- Busbar
Governing System
- Cat electronic governor (ADEM A4)
Lube System
- Lubricating oil
- Oil drain valves
Mounting
- Rubber vibration isolators
Mounting System
- Rubber vibration isolators
Starting/Charging
- 24 Volt battery with rack and cables
- Batteries
- 24 volt starting motor
General
- Engine and alternator pre paint, Caterpillar yellow
- Paint - Caterpillar yellow except rails and radiators gloss black
-
Download ↓Electric Power Ratings Guide
-
Download ↓DE450C3, 50 Hz 450 kVA, China Non-Road III Emissions Compliant Spec Sheet
-
Download ↓DE500C3, 50 Hz 450 kVA, China Non-Road III Emissions Compliant Spec Sheet
Need installed dimensions with enclosure and tank? See Model Configurations
