Power units

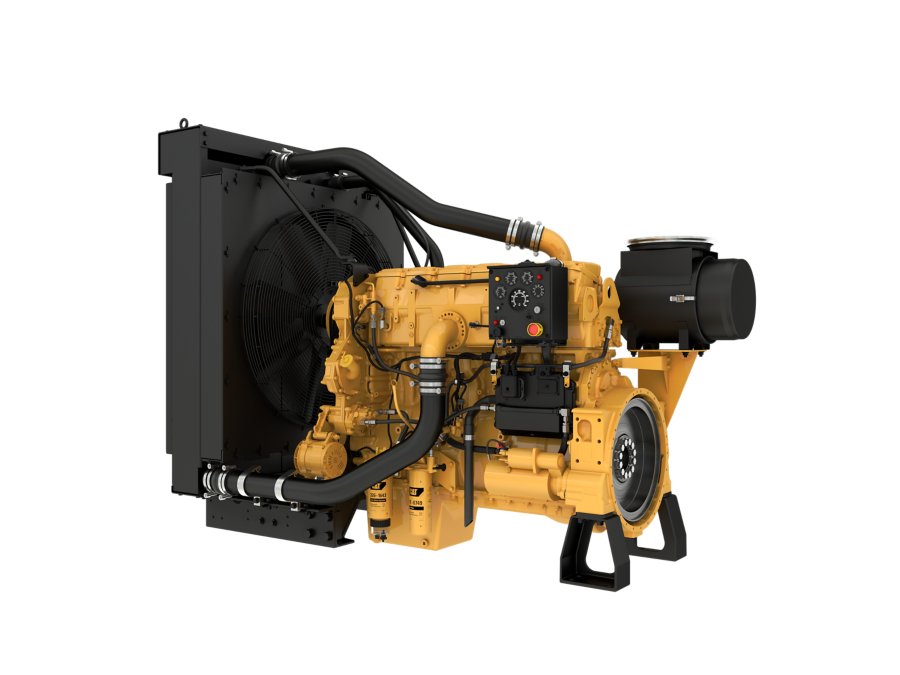

C15

The Cat® C15 Industrial Power Unit is offered in ratings ranging from 328-403 bkW (440-540 bhp) @ 1800-2100 rpm. These ratings meet China Stage II, U.S. EPA Tier 3 equivalent and EU Stage IIIA equivalent emission standards. Conveniently pre-configured for a wide range of applications, the Cat® Industrial Power Unit is a complete power package containing a radiator, flywheel, alternator and alternator wiring completely pre-assembled for fast, straightforward installation in a number of OEM, customer and packager applications. These fuel efficient units are ready made for irrigation, industrial, mining and other pump applications.

Have questions about this product?
Request a Quote
800.768.4200
Power Rating
Maximum Power 540 hp
Rated Speed 1800-2100 rpm
Minimum Power 440 hp
Emission Standards
Emissions China Stage II, U.S. EPA Tier 3 Equivalent, EU Stage IIIA Equivalent
General
Engine Configuration Inline 6, 4-Stroke-Cycle Diesel
Bore 5.4 in
Stroke 6.8 in
Displacement 927.6 in³
Compression Ratio 18.0:1
Aspiration Turbocharged Aftercooled (TA)
Rotation from Flywheel End Counterclockwise
Aftertreatment -
Power Unit Dimensions
Length 96.4 in
Width 51.8 in
Height 103.5 in
Weight 4532 lb

Air Inlet System

  • Turbocharged
  • Air-to-Air Aftercooled

Control System

  • Electronic governing, PTO speed control
  • Programmable ratings
  • Automatic altitude compensation
  • Power compensation for fuel temperature
  • Programmable low and high idle and total engine limit
  • Electronic diagnostics and fault logging
  • Engine monitoring system SAE J1939 broadcast and control
  • ADEM™ A4 Electronic Control Unit (ECU)

Cooling System

  • Thermostats and housing, vertical outlet
  • Jacket water pump, centrifugal
  • Water pump, inlet

Exhaust System

  • Exhaust manifold, dry
  • Optional exhaust outlet

Flywheels and Flywheel Housing

  • SAE No. 1 flywheel housing

Fuel System

  • MEUI injection
  • Fuel filter, secondary (2 micron)
  • ACERT™ Technology
  • Fuel transfer pump
  • Fuel priming pump

Lube System

  • Crankcase breather
  • Oil cooler
  • Oil filler
  • Lube oil filter
  • Front sump oil pan
  • Oil dipstick
  • Gear driven oil pump

General

  • Vibration damper
  • Lifting eyes
  • Cold start capability to -20° C (-4° F)
  • Paint: Caterpillar yellow, with optional colors available at request
