Diesel generator sets

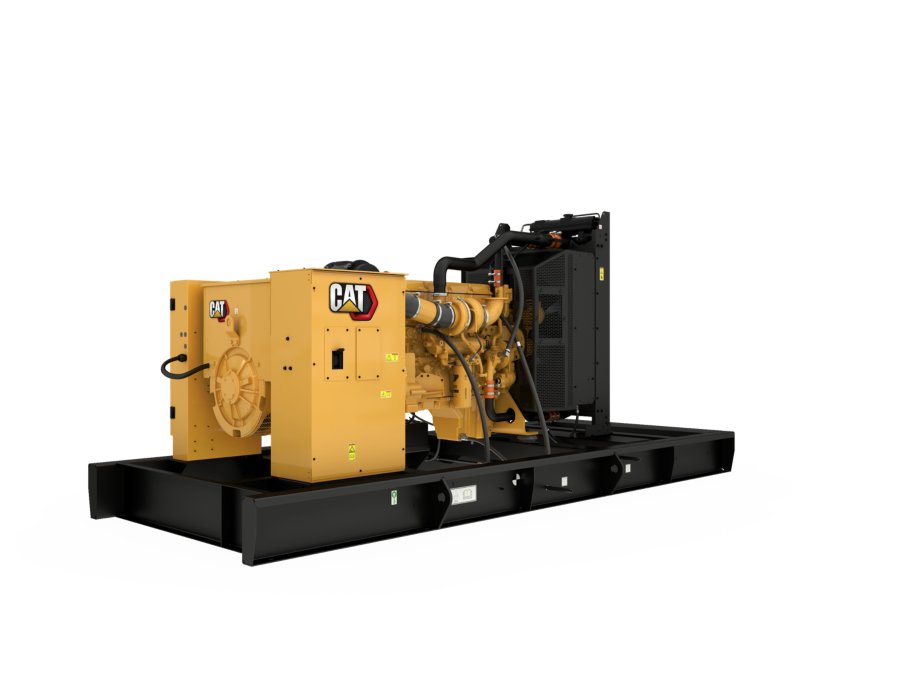

C13 (60 Hz)
The C13 diesel generator sets have been developed for your mission critical, standby and prime applications. Producing reliable power from 320 to 400 ekW at 60 Hz, each generator set has been designed to meet ISO 8528-5 transient response requirements and built to accept 100 % rated load in one step. Our C13 generator sets are certified to Low Fuel Consumption Emissions / Fuel Strategy.
- Maximum Rating400 ekW
- Minimum Rating320 ekW
- Emissions/Fuel StrategyLow Fuel Consumption
- Voltage380 to 415 Volts
- Frequency60 Hz
- Duty CycleStandby, Prime
| Maximum Rating | 400 ekW |
|---|---|
| Minimum Rating | 320 ekW |
| Emissions/Fuel Strategy | Low Fuel Consumption |
| Voltage | 380 to 415 Volts |
| Frequency | 60 Hz |
| Speed | 1800 rpm |
| Duty Cycle | Standby, Prime |
| Engine Model | C13 ATAAC, I-6, 4-Stroke Water-Cooled Diesel |
|---|---|
| Bore | 5.12 in |
| Stroke | 6.18 in |
| Displacement | 762.8 in³ |
| Compression Ratio | 16.3:1 |
| Aspiration | Air to Air Aftercooled |
| Fuel System | MEUI |
| Governor Type | Adem™A4 |
| Length - Maximum | 186.7 in |
|---|---|
| Width - Maximum | 79.3 in |
| Height - Maximum | 84 in |
Air Inlet System
- Aftercooler core
- Air cleaner; light duty with disposable paper filter
- Turbocharger
Control Panel
- GCCP 1.3
Cooling System
- Caterpillar extended life coolant
- Coolant drain line with valve
- Fan drive, battery charging alternator drive
- Radiator and cooling fan with guard
Exhaust System
- Stainless steel exhaust flex, gaskets, raincap & SAE exhaust flange for customer use - shipped loose
Fuel System
- Base, formed steel with single wall integral 8-hour fuel tank
- Standard open set fuel tank/base supplied
Generator and Attachments
- Segregated low voltage (AC/DC) wiring panel
- Power center, IP22
- Integrated voltage regulator (IVR)
- Mandatory option circuit breaker, IEC, 3 pole, mounted in power centre
- A Frame generator - IP21 Protection
- Optional LC Frame generator - IP23 Protection
Governing System
- Cat electronic governor (ADEM A4)
Packaged Generator Set
- Service indicator
- Radiator package mounted
- Low coolant level sensor
- Coolant drain line with valve
- Coolant level sight gauge
- Disposable air filter
Lube System
- Lubricating oil
- Oil drain valves
- Oil cooler
Mounting System
- Captive linear vibration isolators between base and engine-generator
- Includes lifting provisions and termination points for coolant and lube oil drain lines
Starting / Charging System
- 24V battery with rack and cables
General
- Engine and alternator pre-paint, Caterpillar yellow
-
Download ↓Electric Power Ratings Guide
-
Download ↓DE350SE0 60 Hz 438 kVA, Non Certified Emissions Spec Sheet
-
Download ↓DE400SE0 60 Hz 500 kVA, Non Certified Emissions Spec Sheet
-
Download ↓C13, 350 - 400 ekW Spec Sheet
Need installed dimensions with enclosure and tank? See Model Configurations
