Propulsion engines

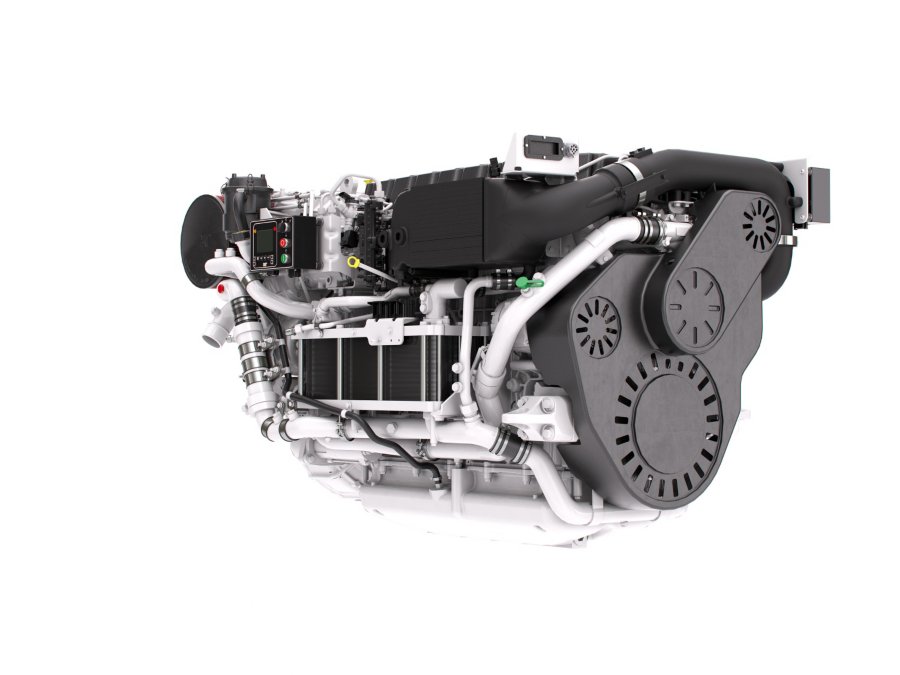

C12.9

The C12.9 marine propulsion engine is ideal for high performance marine applications including yachts, fishing vessels, military vessels, governmental vessels and various other commercial high performance marine applications. The C12.9 is designed to be integrated with both the Cat Three60 Precision Control shaft line maneuvering and engine control solution as well as other marine industry throttle controls. The electronically-controlled C12.9 is offered in two power ratings: 850 mhp at 2300 rpm and 1000 mhp at 2300 rpm. Both ratings meet EPA Tier 3, IMO II, EU Recreational Craft Directive and EU Stage IIIA regulations. In addition to high power density, the C12.9 offers high torque at low engine speeds and fast acceleration throughout the entire engine speed range due to its air system design of integrated series turbochargers and a supercharger.

Have questions about this product?
Request a Quote
Ratings
Power Range 850-1000 mhp, 838-985 bhp, 625-735 bkW
Engine
Speed Range 2300 rpm
Emissions EPA Tier 3, IMO II, EU Stage IIIA
Aspiration TA
Bore 5.31 in
Stroke 5.9 in
Displacement 787 in³
Rotation from Flywheel End Counterclockwise
Configuration In-line 6, 4-Stroke-Cycle Diesel
Dimensions & Weights
Width - Engine 43.7 in
Length - Engine 57.6 in
Height - Engine 42.7 in
  • C12.9 Propulsion (1000 mhp) Spec Sheet
    application/pdf
    Download ↓
  • C12.9 Propulsion (850 mhp) Spec Sheet
    application/pdf
    Download ↓
Need installed dimensions with enclosure and tank? See Model Configurations
