C11

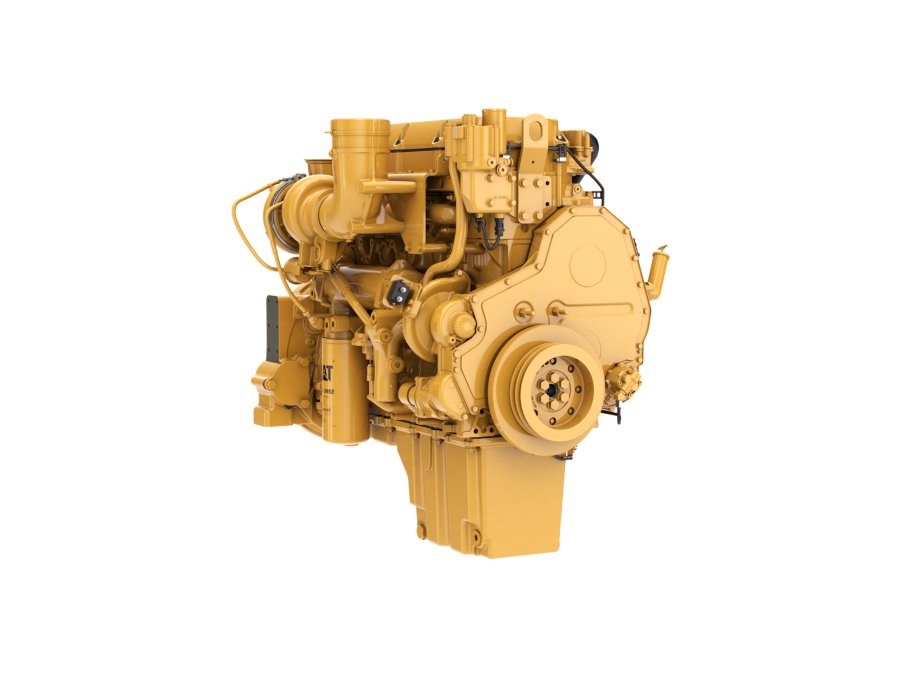

The Cat® C11 Industrial Diesel Engine is offered in ratings ranging from 242-336 kW (325-451 hp). These ratings meet China Nonroad Stage III, Brazil MAR-1, and UN R96 Stage IIIA emission standards and UN R120 performance standards for measurement of net power and specific fuel consumption. Furthermore, this U.S. EPA Tier 3 certified engine can still be ordered as an engine replacement for machines currently taking U.S. EPA Tier 3 engines.
| Maximum Power | 451 hp |
|---|---|
| Maximum Torque | 1516 lb-ft @ 1400 rpm |
| Rated Speed | 1800-2100 rpm |
| Minimum Power | 325 hp |
| Emissions | China Nonroad Stage III, Brazil MAR-1, UN ECE R96 Stage IIIA, U.S. EPA Tier 3 |
|---|
| Engine Configuration | Inline 6, 4-Stroke-Cycle Diesel |
|---|---|
| Bore | 5.1 in |
| Stroke | 5.5 in |
| Displacement | 677.4 in³ |
| Compression Ratio | 17.2:1 |
| Aspiration | Turbocharged Aftercooled (TA) |
| Combustion System | Direct Injection |
| Rotation from Flywheel End | Counterclockwise |
| Aftertreatment | - |
| Length | 47 in |
|---|---|
| Width | 42 in |
| Height | 47 in |
| Weight - Net Dry - Basic Operating Engine Without Optional Attachments | 2050 lb |
Air Inlet System
- Turbocharged
- Air-to-Air Aftercooled
Control System
- Electronic governing, PTO speed control
- Programmable ratings
- Automatic altitude compensation
- Power compensation for fuel temperature
- Programmable low and high idle and total engine limit
- Electronic diagnostics and fault logging
- Engine monitoring system SAE J1939 broadcast and control
- ADEM™ A4 Electronic Control Unit (ECU)
Cooling System
- Thermostats and housing, vertical outlet
- Jacket water pump, centrifugal
- Water pump, inlet
Exhaust System
- Exhaust manifold, dry
- Optional exhaust outlet
Flywheels and Flywheel Housing
- SAE No. 1 flywheel housing
Fuel System
- MEUI injection
- Fuel filter, secondary (2 micron)
- ACERT™ Technology
- Fuel transfer pump
- Fuel priming pump
Lube System
- Crankcase breather
- Oil cooler
- Oil filler
- Lube oil filter
- Front sump oil pan
- Oil dipstick
- Gear driven oil pump
General
- Vibration damper
- Lifting eyes
- Cold start capability to -20° C (-4° F)
- Paint: Caterpillar yellow, with optional colors available at request
-
