Industrial engines

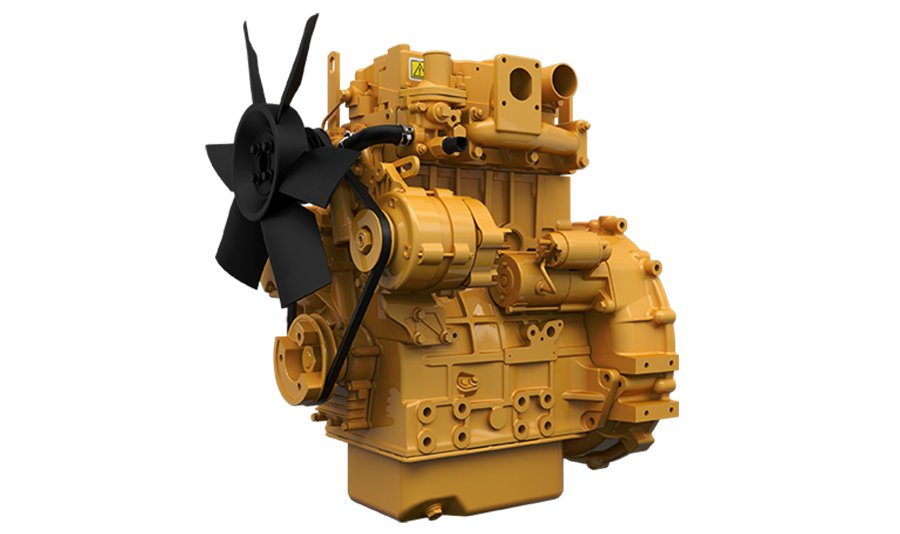

C1.5
Cat® C1.5 Industrial Diesel Engines deliver impressive performance throughout a wide speed range with exceptional power density. Their ultra-compact package size and extensive choice of options ensures these engines are ideal for a wide range of small, off road applications. Single-side servicing improves ease of maintenance and lowers overall owner operating costs.
| Maximum Power | 24.6 hp |
|---|---|
| Maximum Torque | 63.4 lb-ft @ 1800 rpm |
| Rated Speed | 2100 rpm |
| Minimum Power | 24.6 hp |
| Emissions | U.S. EPA Tier 4 Final |
|---|
| Engine Configuration | In-Line 3 |
|---|---|
| Bore | 3.3 in |
| Stroke | 3.5 in |
| Displacement | 91 in³ |
| Compression Ratio | 22.5:1 |
| Aspiration | Naturally Aspirated (NA) |
| Combustion System | Indirect Injection |
| Rotation from Flywheel End | Counterclockwise |
| Aftertreatment | - |
| Length | 22.5 in |
|---|---|
| Width | 17.9 in |
| Height | 25.3 in |
| Weight - Net Dry - Basic Operating Engine Without Optional Attachments | 328 lb |
Air Inlet System
- Inlet manifold with choice of inlets.
Control System
- Alternator 12 volt 65 amp
- Starter motor 12 volt
- Glow plug starting aid
- Tier 4 Final: Alternator 12V 85 amp
Cooling System
- Belt-driven coolant pump
- Coolant temperature switch
- Choice of cooling fans
Flywheel & Flywheel Housing
- Naturally Aspirated: SAE No. 7 1/2 flywheel
- Naturally Aspirated: Choice of SAE No. 4 or standard backplate flywheel housing
Fuel System
- Fuel injection pump
- Spin-on fuel filter
- Electronic Shut-off Solenoid (ESOS)
Lube System
- Alternative oil fillers
- Spin-on lube oil filter
- Lube oil pressure switch
- Lube oil sump
Power Take Off (PTO)
- Provision for Power Take Off (PTO)
General
- Cast iron, engine block
- Cast iron exhaust manifold--side outlet
- Cold start capability to -20° C (-4° F)
- Gradeability 35° continuous
Need installed dimensions with enclosure and tank? See Model Configurations
