Power Rating
| Power Range |
10 - 12 ekW |
|---|
Generator Set Specifications
| Frequency |
50 / 60 |
|---|
| Minimum Rating |
10 ekW (10 kVA) |
|---|
| Speed |
1500 / 1800 rpm |
|---|
Engine Specifications
| Displacement |
91 in³ |
|---|
| Aspiration |
Naturally Aspirated |
|---|
| Governor Type |
Electrical Isochronous |
|---|
| Bore |
3.31 in |
|---|
| Stroke |
3.5 in |
|---|
| Emissions |
U.S. EPA Tier 3 |
|---|
| Configuration |
Inline 3, 4-Stroke Cycle diesel |
|---|
| Refill Capacity |
Lube Oil System w/oil filter change: 6 L (1.6 gal) |
|---|
| Oil Change Interval |
500 hrs |
|---|
| Rotation from Flywheel End |
Counterclockwise |
|---|
| Cooling |
Hex or Single Circuit Keel |
|---|
Generator Set Dimensions
| Length |
40.8 in / 1,038 mm (open) 43.1 in / 711 mm (enclosed) |
|---|
| Width |
21.1 in / 535 mm (open) 24.0 in / 608 mm (enclosed) |
|---|
| Height |
27.1 in / 535 mm (open) 27.9 in / 711 mm (enclosed) |
|---|
| Engine Dry Weight |
703 lb / 319 kg |
|---|
Standard Equipment
- Single element air cleaner
- Water-cooled exhaust manifold
- Single or Three phase brushless generator
- 12 or 24 volt electric starting motor
- 12 volt 55 amp alternator
- Single sided service points
- Anti-vibration mounts.
- Electronic automatic safety shutdowns
-

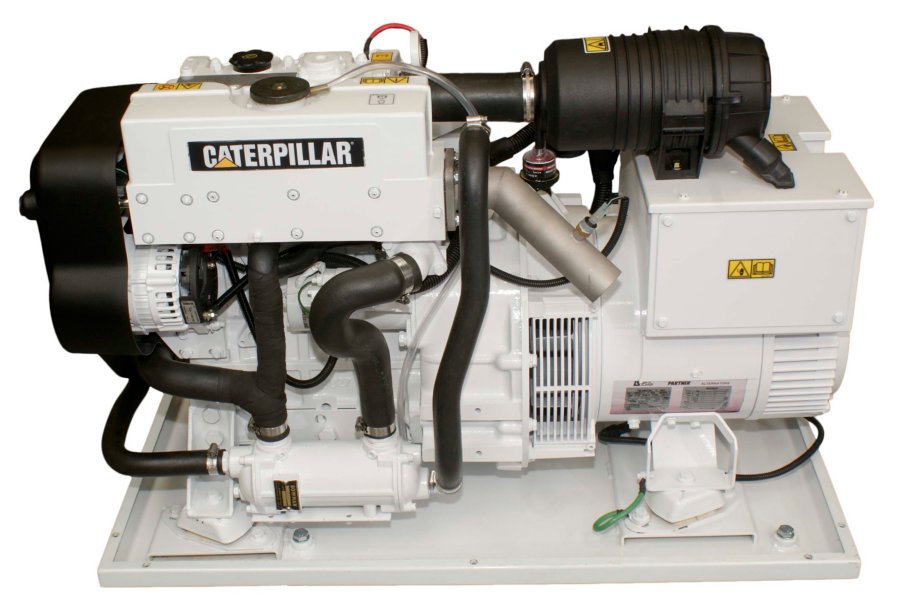

C1.5 Marine Generator Set Spec Sheetc (10 ekW - 12 ekW)
