Industrial engines
C0.7

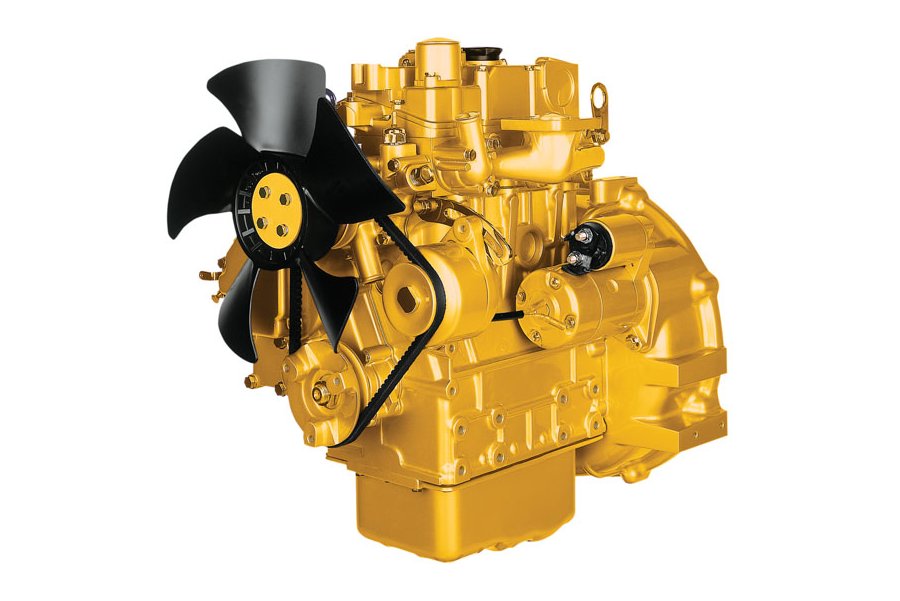

Cat® C0.7 Industrial Diesel Engines deliver impressive performance throughout a wide speed range with exceptional power density. Their ultra-compact package size and extensive choice of options ensures these engines are ideal for a wide range of small, off road applications. Single-side servicing improves ease of maintenance and lowers overall owner operating costs.
| Maximum Power | 17.8 hp |
|---|---|
| Maximum Torque | 32 lb-ft @ 2400 rpm |
| Rated Speed | 2200-3600 rpm |
| Minimum Power | 11.8 hp |
| Emissions | U.S. EPA Tier 4 Final, EU Stage V |
|---|
| Engine Configuration | In-Line 3 |
|---|---|
| Bore | 2.6 in |
| Stroke | 2.8 in |
| Displacement | 46.5 in³ |
| Compression Ratio | 23.5:1 |
| Aspiration | Naturally Aspirated (NA) |
| Combustion System | Indirect Injection |
| Rotation from Flywheel End | Counterclockwise |
| Length | 18.9 in |
|---|---|
| Width | 14.6 in |
| Height | 20.8 in |
| Weight - Net Dry - Basic Operating Engine Without Optional Attachments | 156.6 lb |
Air Inlet
- Inlet manifold with choice of inlets.
Control System
- Alternator 12 volt 14 amp
- Starter motor 12 volt
- Glow plug starting aid
Cooling System
- Belt-driven coolant pump
- Coolant temperature switch
- Choice of cooling fans
Flywheel and Flywheel Housing
- SAE No. 6 1/2 flywheel
- Choice of SAE No. 5 or standard backplate flywheel housing
Fuel System
- Fuel injection pump
- Spin-on fuel filter
- Electronic Shut-off Solenoid (ESOS)
Lube System
- Closed circuit breather
- Spin-on lube oil filter
- Lube oil pressure switch
- Lube oil sump
General
- Cast iron, engine block
- Cast iron exhaust manifold--side outlet
- Cold start capability to -20° C (-4° F)
- Gradeability 35° continuous
- Paint: Caterpillar yellow, with optional colors available at request
Need installed dimensions with enclosure and tank? See Model Configurations
