Diesel generator sets

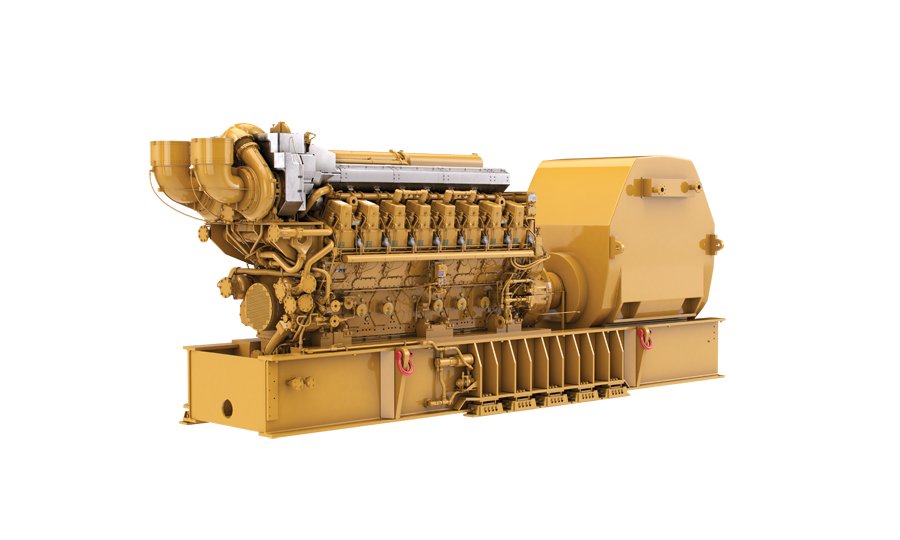

3616 (50 Hz)
Producing reliable power from 5875 to 7150 kVA at 50 Hz , our 3616 diesel generator sets are made to meet your mission critical, continuous, standby and prime applications. We've designed each to ISO 8528-5 transient response requirements and to accept 100% rated load in one step. The generator set is certified for low fuel consumption.
- Maximum Rating7520 kVA
- Minimum Rating4700 kVA
- Emissions/Fuel StrategyLow Fuel Consumption
- Frequency50 Hz
- Duty CycleStandby, Prime, Continuous
| Maximum Rating | 7520 kVA |
|---|---|
| Minimum Rating | 4700 kVA |
| Emissions/Fuel Strategy | Low Fuel Consumption |
| Frequency | 50 Hz |
| Speed | 720 & 1000 rpm |
| Duty Cycle | Standby, Prime, Continuous |
| Engine Model | 3616 V-16, 4-Stroke Water-Cooled Diesel |
|---|---|
| Bore | 11 in |
| Stroke | 11.8 in |
| Displacement | 18032 in³ |
| Compression Ratio | 13:01 |
| Aspiration | TA |
| Fuel System | Direct unit injection |
| Governor Type | Generator Set Monitoring System (GMS) |
| Length - Maximum | 404 in |
|---|---|
| Width - Maximum | 99.62 in |
| Height - Maximum | 156.6 in |
| Dry Weight - Genset (maximum) | 141840 lb |
Air Inlet System <!-- 3600 series only -->
- Turbocharger, watercooled, engine oil lubricated
- Air inlet shutoff
- Aftercooler, fresh water, corrosion resistant coated (air side)
- Air cleaner
- Breather, crankcase, top-mounted
Cooling System
- Front mounted turbos
- Three-bundle oil cooler
- Engine coolant water drains
- Water temperature regulator
- Jacket water thermostats
Exhaust System
- 457 mm (18 in) Cat bolt pattern
- Dry, gas tight, exhaust manifold
- Includes adapter, flexible exhaust fitting
Fuel System
- Simplex or duplex
Generator System
- Custom generator per generator data sheet completed by Dealer
Governor System
- UG Actuator
Lube System
- Oil pressure regulating valve
- Wet oil sump. Includes engine-driven main lubrication and oil pumps, oil lines and oil pan
- Crankcase explosion relief valves
- Oil filler and dipstick
- Service side engine mounted on cylinder block inspection covers
- Centrifugal oil filters with single shutoff
Mounting System
- Engine and generator mounting
- Damper, torsional vibration
Starting / Charging System
- Line group for single point custom connection
- Two motors, engine mounted at rear, on left side
- Vane type air starter
- Air silencer
General:
- Gear driven pumps: Fuel/oil/jacket water/aftercooler/Oil cooler water
- Paint, Caterpillar yellow
-
Download ↓Electric Power Ratings Guide
-
Download ↓3616, 50 Hz, 7150 kVA Standby, 6500 kVA Prime, 5875 kVA Cont., Low Fuel Consumption Spec Sheet
