Diesel generator sets

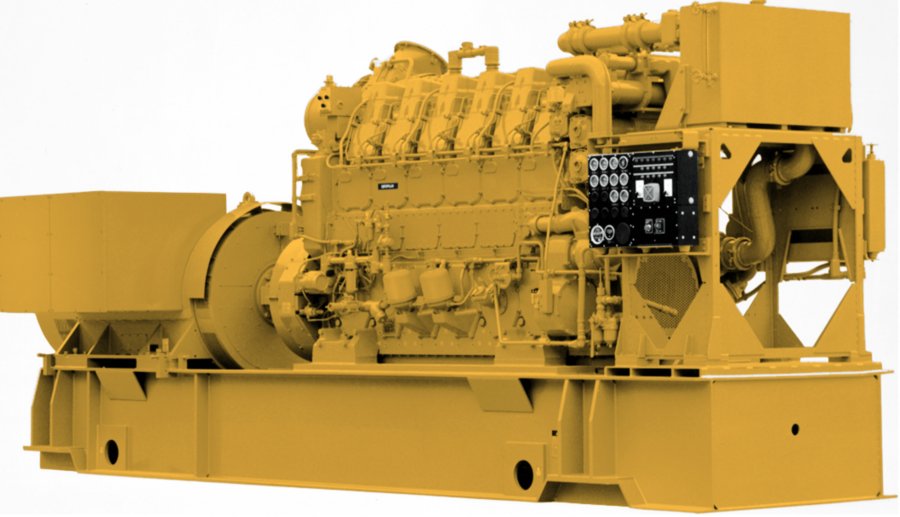

3606 (60 Hz)
Producing reliable power from 1650 to 2000 ekW at 60 Hz, our 3606 diesel generator sets are made to meet your mission critical, continuous, standby and prime applications. We've designed each to ISO 8528-5 transient response requirements and to accept 100% rated load in one step. The generator set is certified for low fuel consumption.
- Maximum Rating2000 ekW
- Minimum Rating1650 ekW
- Emissions/Fuel StrategyLow Fuel Consumption
- Frequency60 Hz
- Duty CycleStandby, Prime, Continuous
| Maximum Rating | 2000 ekW |
|---|---|
| Minimum Rating | 1650 ekW |
| Emissions/Fuel Strategy | Low Fuel Consumption |
| Frequency | 60 Hz |
| Speed | 900 rpm |
| Duty Cycle | Standby, Prime, Continuous |
| Engine Model | 3606 I-6,4-Stroke Water-Cooled Diesel |
|---|---|
| Bore | 11 in |
| Stroke | 11.8 in |
| Displacement | 111 in³ |
| Compression Ratio | 13:01 |
| Aspiration | TA |
| Fuel System | Direct unit injection |
| Governor Type | Generator Set Monitoring System (GMS) |
| Length - Maximum | 404 in |
|---|---|
| Width - Maximum | 99.62 in |
| Height - Maximum | 156.6 in |
| Dry Weight - Genset (maximum) | 74970 lb |
Air Inlet System <!-- 3600 series only -->
- Breather, crankcase, top-mounted
- Aftercooler, fresh water, corrosion resistant coated (air side)
- Turbocharger, watercooled (720 rpm and HFO), engine oil lubricated
- Air inlet shutoff
Cooling System
- Jacket water thermostats
- Engine coolant water drains
- Water temperature regulator
Exhaust System
- 457 mm (18 in) Cat bolt pattern
- Includes adapter, flexible exhaust fitting
- Dry, gas tight, exhaust manifold
Fuel System
- Simplex or duplex
Generator System
- Custom generator per generator data sheet completed by dealer
Governor System
- UG Actuator
Lube System
- Centrifugal oil filters with single shutoff
- Oil pressure regulating valve
- Service side engine mounted on cylinder block inspection covers
- Oil filler and dipstick
- Crankcase explosion relief valves
- Wet oil sump. Includes engine-driven main lubrication and oil pumps, oil lines and oil pan
Mounting System
- Damper, torsional vibration
- Engine and generator mounting
Starting / Charging System
- Vane type air starter
- One motor, engine mounted at rear, on left side
- Air silencer
- Line group for single point custom connection
General:
- Paint, Caterpillar yellow
- Gear driven pumps: Fuel/oil/jacket water/aftercooler/Oil cooler water
-
Download ↓Electric Power Ratings Guide
-
Download ↓3606, 60 Hz, 2000 ekW Standby, 1820 ekW Prime, 1650 ekW Cont., Low Fuel Consumption Spec Sheet
Need installed dimensions with enclosure and tank? See Model Configurations
