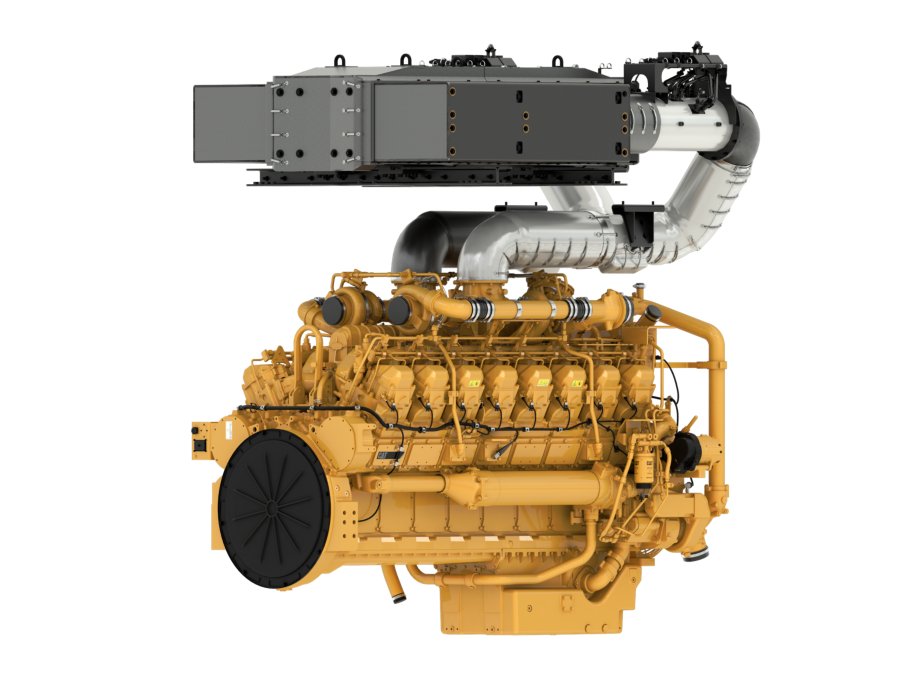

3516E

The Cat® 3516E industrial diesel engine is offered at a continuous rating of 1566 kW (2100 hp) @ 1650 rpm and is designed for applications that require continuous heavy-duty service. These engines are capable of being operated at maximum power and speed up to 100% of the time without interuption or load cycling.

Have questions about this product?

Request a Quote

800.768.4200

Power Rating
Maximum Power	2100 hp
Maximum Torque	8275 lb-ft @ 1200 rpm
Rated Speed	1650 rpm
Minimum Power	2100 hp

Emission Standards
Emissions	U.S. EPA Tier 4 Final, EU Stage V

General
Engine Configuration	V-16
Bore	6.7 in
Stroke	8.5 in
Displacement	4760 in³
Compression Ratio	16.5:1
Aspiration	Turbocharged Aftercooled (TTA)
Combustion System	MEUI
Rotation from Flywheel End	Counterclockwise
Aftertreatment	SCR

Engine Dimensions - Approximate
Length	122.2 in
Width	63.6 in
Height	83 in
Weight - Net Dry - Basic Operating Engine Without Optional Attachments	18025 lb

Aftertreatment Dimensions
Length	92.5 in
Width	79.1 in
Height	31.9 in
Weight	2378 lb

Air Inlet System

Four turbochargers, centre mounted
Air-to-Air Aftercooled (ATAAC)

Control System

Electronic engine control

Exhaust System

Two exhaust outlets, 203 mm (8 in) round flange
Exhaust manifold, dry
Four turbochargers with watercooled bearings

Cooling System

Gear-driven centrifugal jacket water pump
Connections for radiator cooling
Thermostats and housing

Flywheels and Flywheel Housing

Flywheel housing, SAE No. 0 or SAE No. 00
Flywheel, SAE No. 18 or SAE No. 21
SAE standard rotation

Fuel System

Fuel filter, LH spin-on type
Fuel transfer pump
Electronically controlled unit injectors

Lube System

Crankcase breather, top mounted
Oil cooler
Oil filler and dipstick, LH
Oil pump
Oil filter, LH, spin-on type
Front sump oil pan, 500-hour change interval

General

Paint: Caterpillar yellow, with optional colors available at request
Vibration damper
Lifting eyes

Need installed dimensions with enclosure and tank? See Model Configurations
