Diesel generator sets

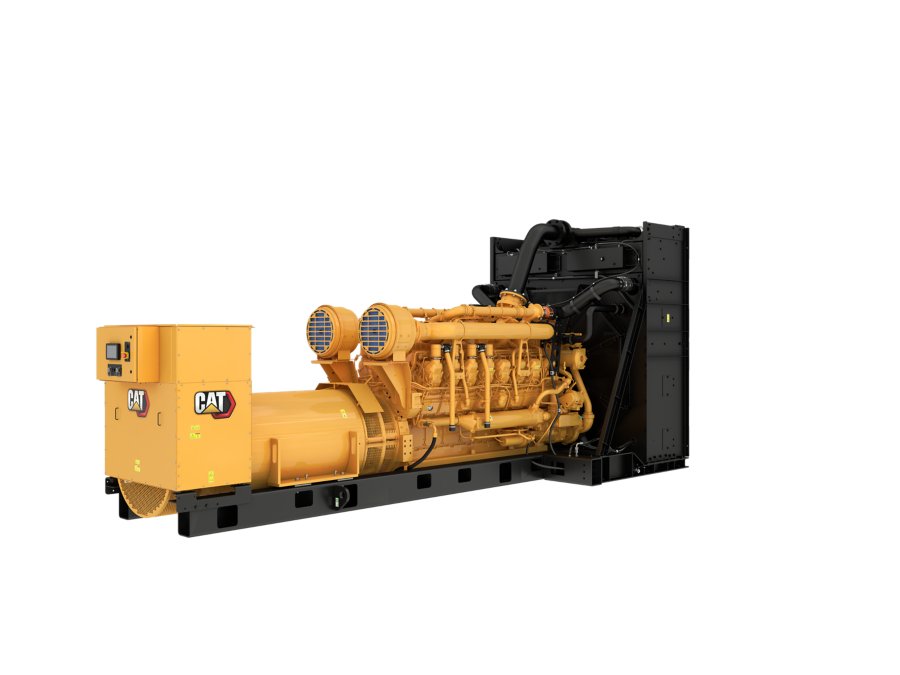

3516E (60 Hz)
The 3516E diesel generator sets have been developed to meet your standby and prime applications and match your power standards. Producing reliable power from 2500 to 2750 ekW at 60 Hz, each generator set has been designed to meet ISO 8528-5 transient response requirements and to accept 100 % rated load in one step. The generator set is US EPA Stationary Emergency Use Only (Tier 2) certified.
- Emissions/Fuel StrategyTier 2, Low NOx
- Voltage416 to 13,800 Volts
- Frequency60 Hz
- Duty CycleStandby, Mission Critical, Prime
- Maximum Rating2750 ekW
- Minimum Rating2500 ekW
| Standby Rating | 2750 ekW |
|---|---|
| Prime Power Rating | 2500 ekW |
| Emissions/Fuel Strategy | Tier 2, Low NOx |
| Voltage | 416 to 13,800 Volts |
| Frequency | 60 Hz |
| Speed | 1800 rpm |
| Duty Cycle | Standby, Mission Critical, Prime |
| Maximum Rating | 2750 ekW |
| Minimum Rating | 2500 ekW |
| Engine Model | 3516E, V-16, 4-Stroke, Water-Cooled Diesel |
|---|---|
| Bore | 6.69 in |
| Stroke | 8.47 in |
| Displacement | 4765 in³ |
| Compression Ratio | 14.7:1 |
| Aspiration | ATAAC |
| Fuel System | EUI |
| Governor Type | Adem™ A5 |
| Length - Maximum | 311.9 in |
|---|---|
| Width - Maximum | 104.0 in |
| Height - Maximum | 131.6 in |
| Dry Weight - Genset (maximum) | 40750 lb |
Air Cleaner
- Single element with service indicator
Starting
- Heavy duty electric starter(s)
Cooling
- ATAAC
- Standard Ambient Radiator
Crankcase Ventilation System
- Non filtered crankcase ventilation
Controller
- Cat ECS 100
Alternator
- Form wound
- Permanent Magnet Excitation
Telematics
- Ethernet
Mounting System
- Rails
Power Termination
- Busbar
-
Download ↓Electric Power Ratings Guide
-
Download ↓3516E, 60 Hz, 2750 ekW, U.S. EPA Stationary Emergency (Tier 2) Spec Sheet
-
Download ↓3516E, 60 Hz, 2500 ekW, Prime-DCP, U.S. EPA Certified for Emergency Stationary Applications (Tier 2) Spec Sheet
Need installed dimensions with enclosure and tank? See Model Configurations
