Diesel generator sets

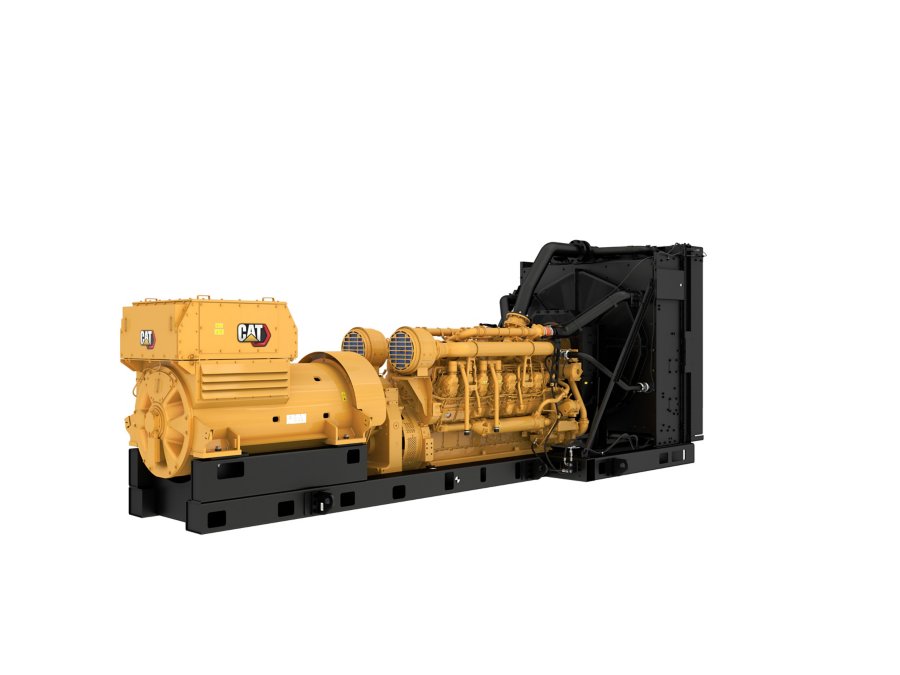

3516E (50 Hz)
The 3516E diesel generator sets have been developed to meet your standby and mission critical applications and match your power standards. Producing reliable power (3000 - 3500 kVA at 50 Hz), each generator set has been designed to meet ISO 8528-5 transient response requirements, accept 100 % rated load in one step and accept >50% block road recovering within G2 limits. The generator is certified Tier 2 Equivalent, US EPA Stationary Emergency / Low NOx (1/2 TA Luft).
- Maximum Rating3500 kVA
- Minimum Rating3000 kVA
- Emissions/Fuel StrategyTier 2 Equivalent - 1800 rpm
- Voltage380 to 11000 volts
- Frequency50 Hz
- Duty CycleStandby, Mission Critical
| Maximum Rating | 3500 kVA |
|---|---|
| Minimum Rating | 3000 kVA |
| Emissions/Fuel Strategy | Tier 2 Equivalent - 1800 rpm |
| Voltage | 380 to 11000 volts |
| Frequency | 50 Hz |
| Speed | 1800 rpm |
| Duty Cycle | Standby, Mission Critical |
| Engine Model | 3516E, V-16, 4-Stroke Water-Cooled Diesel |
|---|---|
| Bore | 6.69 in |
| Stroke | 8.46 in |
| Displacement | 4765 in³ |
| Compression Ratio | 14.7:1 |
| Aspiration | ATAAC |
| Fuel System | Electronic Unit Injection |
| Governor Type | Adem™5 |
| Length - Minimum | 335.1 in |
|---|---|
| Length - Maximum | 335.1 in |
| Width - Minimum | 104 in |
| Width - Maximum | 104 in |
| Height - Minimum | 131.6 in |
| Height - Maximum | 131.6 in |
| Dry Weight - Genset (minimum) | 50706 lb |
| Dry Weight - Genset (maximum) | 50,706 lb |
Air Inlet System
- Air cleaner; single element canister type
Control System
- Text alarm/event descriptions
- Emergency stop pushbutton
- IVR includes reactive droop capability
- KVAR / PF modes
- EMCP 4.2B
- 3 Phase voltage sensing
- Generator mounted - rear facing
- Generator set packages include:
- 24 Volt DC operation
- Caterpillar's voltage regulator
- RFI suppression
- Environmental sealed front face
- Limiter and exciter diode monitor
- Min / max exciter
- Controls:
- Speed adjust
- Alarm acknowledge
- Auto/start/stop control
- Engine cycle crank
- Engine cool
- Customizable screens
- PLC functionality
- Lamp test
- Load histogram feature
- Accessory module data link
- Reverse power (kW) (32)
- 6 Customer programmable digital inputs
- 3 Phase
- +/- 2% accuracy
- High coolant temperature
- 0 True RMS AC metering
- Programmable protective relaying functions:
- Reverse reactive power (kVAr) (32RV)
- Communications:
- Generator phase sequence
- Over/under voltage (27/59)
- Overcurrent (50/51)
- RPM
- Number of I/O varies on options selected
- Overspeed
- Serial annunciator module data link
- Low coolant temperature
- 4 Programmable relay outputs (Form A)
- 1 Programmable relay outputs (Form C)
- 3 Analog inputs
- Over/under frequency (81 o/u)
- Digital indication for:
- Low coolant level
- Failure to start (overcrank)
- Cat connect
- 1 Programmable digital outputs
- DC volts
- Operating hours
- Coolant temperature
- Oil pressure (psi, kPa or bar)
- Amps (per phase & average)
- Power factor (per phase & average)
- Frequency (Hz)
- Volts (L-L & L-N)
- kW (per phase, average & percent)
- kVA (per phase, average & percent)
- kVAr (per phase, average & percent)
- Warning/shutdown with common LED indication of shutdowns for: Low oil pressure - High coolant temperature - Overspeed - Emergency stop - Failure to start (overcrank) - Low coolant temperature - Low coolant level -
- Low oil pressure
- kW-hr (total)
- kVAr-hr (total)
Cooling System
- ATAAC - 3516E package radiators shipped installed
- Certified standard PGS provided
Exhaust System
- Flanged faced outlet(s)
- Dry exhaust manifold
Fuel System
- Secondary fuel filters
- Fuel cooler; not included with packages without radiator
- Flexible fuel lines - shipped loose
General
- Right hand servicing
- Caterpillar yellow with high gloss black rails and radiator
- SAE standard rotation
- Flywheel and flywheel housing - SAE No. 00
Generator and Attachments
- NEMA standard hole pattern
- Medium voltage:
- Anti-condensation space heater
- NEMA Class H insulation system, Class H temperature rise at 40C ambient (125C prime/150C standby)
- Winding temperature detectors
- High voltage:
- Busbar connections, right side extension box, bottom cable entry
- Form wound
- Low voltage: Random wound - Internal excitation (IE) - Winding temperature detectors - NEMA Class H insulation system, Class H temperature rise at 40C ambient (125C prime/150C standby) - Busbar connections, top center mounted, top cable entry - NEMA standard hole pattern
- 6 Lead
- Permanent magnet excitation (PMG)
- 3 Phase brushless, Salient pole
- Class H insulation, Class F temperature rise at 40C ambient (105C prime / 130C standby)
Governing System
- ADEM A5
Literature
- Parts book
- Operation & Maintenance Manual
Lubrication System
- Integral lube oil cool
- Oil filter, filler and dipstick
- Oil drain lines and valve
- Gear type lube oil pump
- Lubricating oil
- Fumes disposal
Mounting System
- Rails - Engine/generator/radiator mounting
- Anti-vibration mounts (shipped loose)
- Rubber anti-vibration mounts - shipped loose
Starting System
- 24 Volt electric starting motor
- Battery disconnect switch
- Battery and battery rack w/cables
- 45 Amp Charging alternator
-
Download ↓Electric Power Ratings Guide
-
Download ↓3516E, 50 Hz, 3500 kVA, Tier 2 Spec Sheet
-
Download ↓3516E, 50Hz, 3000 kVA, Tier 2 with <2000mg NOx Spec Sheet
Need installed dimensions with enclosure and tank? See Model Configurations
