Diesel generator sets

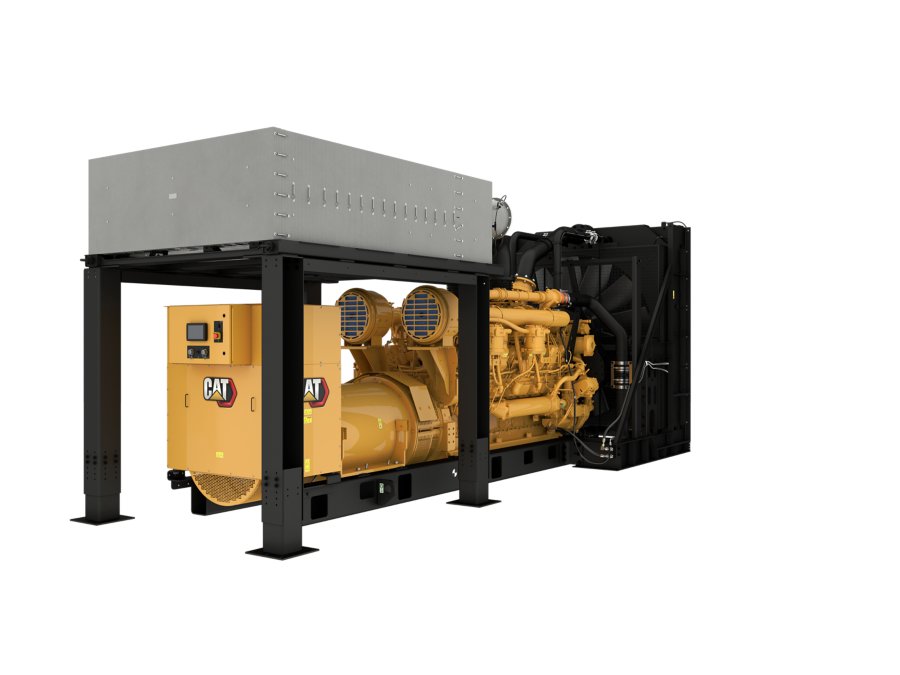

3516C Tier 4 Final (60 Hz)
Producing reliable power from 1825 to 2500 ekW at 60 Hz, our 3516C diesel generator sets are made to meet your mission critical, standby and prime applications. We've designed each to ISO 8528-5 transient response requirements and to accept 100% rated load in one step. Depending on the model, 3516C generator sets are EPA Stationary Emergency (Tier 2) or Tier 4 Final certified.
- Emissions/Fuel StrategyU.S. EPA Certified
- Voltage480 to 13800 Volts
- Frequency60 Hz
- Duty CycleStandby, Mission Critical, Prime
- Maximum Rating2500 ekW
- Minimum Rating1825 ekW
| Standby Rating | 2500/2000 ekW |
|---|---|
| Prime Power Rating | 1825/2250 ekW |
| Emissions/Fuel Strategy | U.S. EPA Certified |
| Voltage | 480 to 13800 Volts |
| Frequency | 60 Hz |
| Speed | 1800 rpm |
| Duty Cycle | Standby, Mission Critical, Prime |
| Maximum Rating | 2500 ekW |
| Minimum Rating | 1825 ekW |
| Engine Model | 3516C HD, ATAAC, V-16, 4-Stroke Water-Cooled Diesel |
|---|---|
| Bore | 6.69 in |
| Stroke | 8.46 in |
| Displacement | 78 in |
| Compression Ratio | 14.7:1 |
| Aspiration | TA |
| Fuel System | Electronic unit injection |
| Governor Type | ADEM™A4 |
| Length - Minimum | 275.4 in |
|---|---|
| Length - Maximum | 285.5 in |
| Width - Minimum | 93.7 in |
| Width - Maximum | 101.2 in |
| Height - Minimum | 116.9 in |
| Height - Maximum | 118.7 in |
| Dry Weight - Genset (minimum) | 37200 lb |
| Dry Weight - Genset (maximum) | 40280 lb |
Air Inlet System
- Air cleaner; single element canister type
Cooling
- Package mounted radiator
Exhaust
- Exhaust flange outlet
Control Panels
- Generator phase sequence
- 1 Programmable digital outputs
- KAR / PF modes
- Low coolant temperature
- PLC functionality
- Generator mounted - Rear facing
- Environmental sealed front face
- Generator set packages include:
- Auto/start/stop control
- Customer data link (Modbus RTU)
- High coolant temperature
- Warning/shutdown with common LED indication of shutdowns for:
- 0 True RMS AC metering, 3-phase, +/-2% accuracy
- Low coolant level
- Operating hours
- kVAr (per phase, average & percent)
- RFI suppression
- Emergency stop
- Digital indication for:
- Amps (per phase & average)
- Min / max exciter
- Number of I/O varies on options selected
- Load histogram feature
- Frequency (Hz)
- Overcurrent (50/51)
- Oil pressure (psi, kPa or bar)
- Lamp test
- Engine cool-down timer
- Cat connect
- kW-hr (total) - kVAr-hr (total)
- Limiter and exciter diode monitor
- Communications:
- Over/under frequency (81 o/u)
- 6 Customer programmable digital inputs
- Controls:
- Overspeed
- IVR includes reactive droop capability
- Low oil pressure
- RPM
- 24 Volt DC operation
- Volts (L-L & L-N)
- Text alarm/event descriptions
- 1 Programmable relay outputs (Form C)
- Controls: Speed adjust
- Reverse reactive power (kVAr) (32RV)
- Power factor (per phase & average)
- High coolant temperature
- Accessory module data link
- Customizable screens
- 4 programmable relay outputs (Form A)
- Caterpillar's voltage regulator
- Programmable protective relaying functions
- Alarm acknowledge
- Over/under voltage (27/59)
- DC volts
- kVA (per phase, average & percent)
- Failure to start (overcrank)
- Engine cycle crank
- 3 Phase voltage sensing
- Coolant temperature
- Serial annunciator module data link
- Emergency stop pushbutton
- Reverse power (kW) (32)
- kW (per phase, average & percent)
- 3 Analog inputs
Fuel
- Primary fuel filter with integral water separator
Generator
- Matched to the performance and output characteristics of Cat engines
- IP23 Protection
Power Termination
- Busbar
Control Panel
- Cat ECS Genset controller
Cooling System
- Certified standard PGS provided
Exhaust System
- Flanged faced outlet(s)
- Dry exhaust manifold
Fuel System
- Fuel cooler; not included with packages without radiator
- Secondary fuel filters
- Fuel priming pump
- Flexible fuel lines - shipped loose
General
- Right hand servicing
- Caterpillar yellow with high gloss black rails and radiator
- Paint - Caterpillar yellow except rails and radiators gloss black
- Flywheel and flywheel housing - SAE No. 00
- SAE standard rotation
Generator and Attachments
- Form wound
- High voltage:
- NEMA standard hole pattern
- Class H insulation, Class F temperature rise at 40C ambient (105C prime/130C standby)
- Low voltage: Random wound - Internal excitation (IE) - Winding temperature detectors - NEMA Class H insulation system, Class H temperature rise at 40C ambient (125C prime/150C standby) - Busbar connections, top center mounted, top cable entry - NEMA standard hole pattern
- Permanent magnet excitation (PMG)
- Medium voltage:
- 6 Lead
- 3 Phase brushless, Salient pole
- Busbar connections, right side extension box, bottom cable entry
- NEMA Class H insulation system, Class H temperature rise at 40C ambient (125C prime/150C standby)
- Permanent magnet excitation (PMG)
- Anti-condensation space heater
- Winding temperature detectors
Governing System
- ADEM A3
Literature
- Parts book
Lubrication System
- Integral lube oil cool
- Oil drain lines and valve
- Gear type lube oil pump
- Fumes disposal
- Lubricating oil
- Oil filter, filler and dipstick
Mounting System
- Rails - engine/generator/radiator mounting
- Anti-vibration mounts (shipped loose)
- Rubber anti-vibration mounts - shipped loose
Starting System
- Battery and battery rack w/cables
- 45 Amp Charging alternator
- 24 Volt electric starting motor
- Battery disconnect switch
-
Download ↓Electric Power Ratings Guide
-
Download ↓3516C, 60 Hz, 2500 ekW Standby / 2250 ekW Prime, U.S. EPA Tier 4 Final Spec Sheet
-
Download ↓3516C, 60 Hz, 2000 ekW Standby / 1825 ekW Prime, U.S. EPA Tier 4 Final Spec Sheet
Need installed dimensions with enclosure and tank? See Model Configurations
