Diesel generator sets

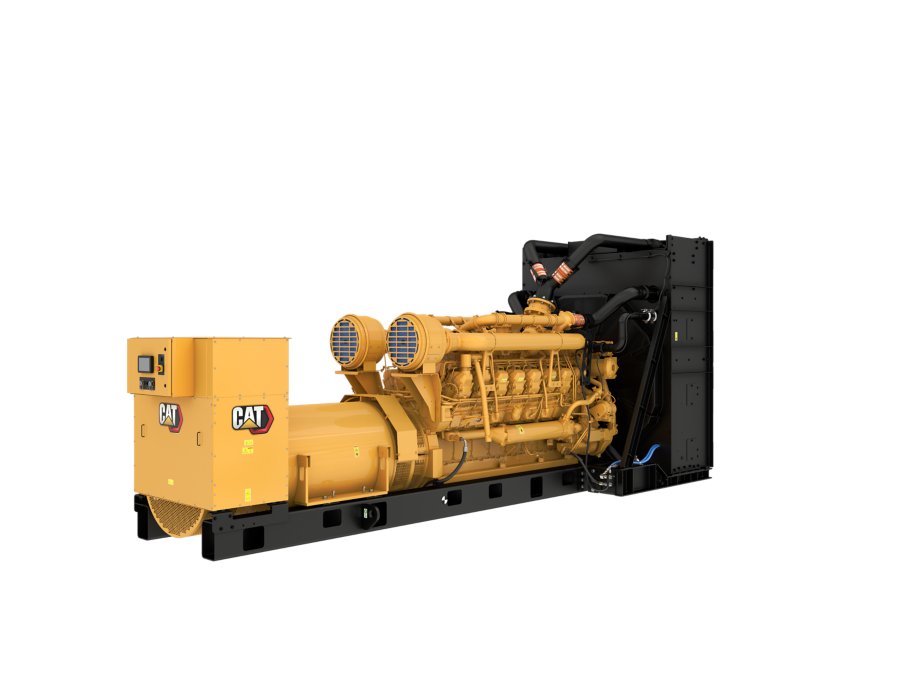

3516C (50 Hz)
Producing reliable power from 2275 to 2750 kVA at 50 Hz, our 3516C diesel generator sets are made to meet your mission critical, standby and prime applications. We've designed each to ISO 8528-5 transient response requirements and to accept 100% rated load in one step. The generator set offers both low fuel consumption and low emission systems.
- Emissions/Fuel StrategyLow Fuel, Low Emissions
- Voltage380 to 11000 volts
- Frequency50 Hz
- Duty CycleStandby, Mission Critical, Prime, Continuous
- Maximum Rating2750 kVA
- Minimum Rating2500 kVA
| Standby Rating | 2750 kVA |
|---|---|
| Prime Power Rating | 2500 kVA |
| Emissions/Fuel Strategy | Low Fuel, Low Emissions |
| Voltage | 380 to 11000 volts |
| Frequency | 50 Hz |
| Speed | 1500 rpm |
| Duty Cycle | Standby, Mission Critical, Prime, Continuous |
| Maximum Rating | 2750 kVA |
| Minimum Rating | 2500 kVA |
| Engine Model | 3516C, ATAAC, V-16,4-Stroke Water-Cooled Diesel |
|---|---|
| Bore | 6.69 in |
| Stroke | 8.46 in |
| Displacement | 4764.73 in |
| Compression Ratio | 14.7:1 |
| Aspiration | TA |
| Fuel System | Electronic unit injection |
| Governor Type | Adem™3 |
| Length - Maximum | 276.3 in |
|---|---|
| Width - Maximum | 92.1 in |
| Height - Maximum | 118.2 in |
| Dry Weight - Genset (maximum) | 39090 lb |
Air Inlet
- Air cleaner
Cooling
- Package mounted radiator
Exhaust
- Exhaust flange outlet
Fuel
- Fuel priming pump
- Secondary fuel filters
- Primary fuel filter with integral water separator
Generator
- Matched to the performance and output characteristics of Cat engines
- IP23 Protection
Power Termination
- Busbar
Control Panel
- Cat ECS 100
General
- Paint - Caterpillar yellow except rails and radiators gloss black
-
Download ↓Electric Power Ratings Guide
-
Download ↓3516C, 50 Hz, 2275-2750 kVA, Low Fuel Consumption Spec Sheet
-
Download ↓3516C, 50 Hz, 2500-2750 kVA, Low Emissions Spec Sheet
-
Download ↓3516C, 50 Hz, 2500 kVA, Prime-DCP, Low Fuel Consumption Spec Sheet
-
Download ↓3516C, 50 Hz, 2500 kVA, Prime-DCP, Low Emissions Spec Sheet
Need installed dimensions with enclosure and tank? See Model Configurations
