Diesel generator sets

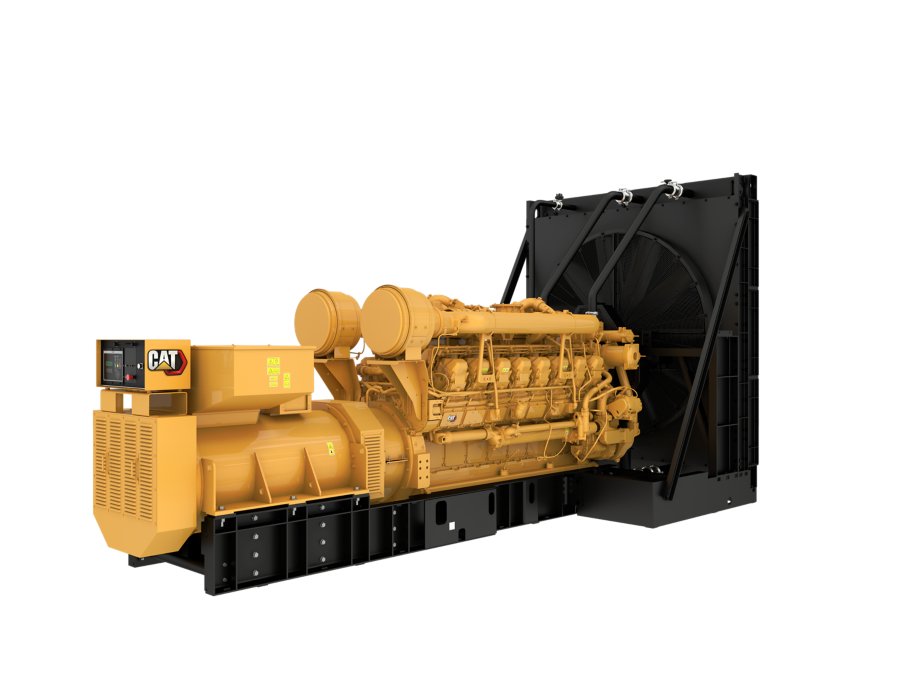

3516B (50 Hz) India Market Only
Producing reliable power from 2000 to 2250 kVA at 50 Hz, our 3516B diesel generator sets are made to meet your mission critical, continuous, standby and prime applications. We've designed each to ISO 8528-5 transient response requirements and to accept 100% rated load in one step. Generator sets offer both low fuel consumption and low emission systems.
- Maximum Rating2250 kVA
- Minimum Rating2000 kVA
- Emissions/Fuel StrategyLow Fuel Consumption
- VoltageVoltage - Low (415 Volts), Medium and High Voltage
- Frequency50 Hz
- Duty CycleStandby, Prime
| Maximum Rating | 2250 kVA |
|---|---|
| Minimum Rating | 2000 kVA |
| Emissions/Fuel Strategy | Low Fuel Consumption |
| Voltage | Voltage - Low (415 Volts), Medium and High Voltage |
| Frequency | 50 Hz |
| Speed | 1500 rpm |
| Duty Cycle | Standby, Prime |
| Engine Model | 3516B TA, V-16, 4-Stroke Water-Cooled Diesel |
|---|---|
| Bore | 6.69 in |
| Stroke | 7.48 in |
| Displacement | 4210.6 in |
| Compression Ratio | 14.0:1 |
| Aspiration | TA |
| Fuel System | Electronic unit injection |
| Governor Type | Adem™3 |
Cooling
- Radiator or heat exchanger
Control Panel
- EMCP 4.2<br />
-
Download ↓3516B, 50 Hz, 2000 kVA Standby, Low Fuel Consumption Spec Sheet
-
Download ↓Powering Your Productivity
-
Download ↓Electric Power Ratings Guide
-
Download ↓3516B, 50 Hz, 2250 kVA Standby, Low Fuel Consumption Spec Sheet
Need installed dimensions with enclosure and tank? See Model Configurations
