Diesel generator sets

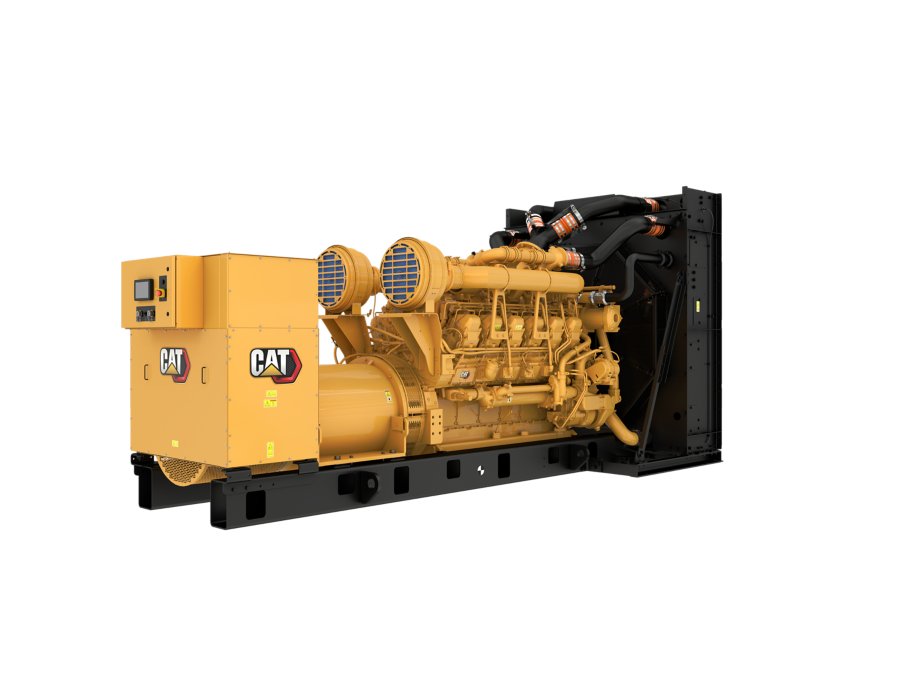

3512C (60 Hz)
Producing reliable power from 1230 to 1500 ekW at 60 Hz, our 3512C diesel generator sets are made to meet your mission critical, continuous, standby and prime applications. We've designed each to ISO 8528-5 transient response requirements and to accept 100% rated load in one step. Generator sets are U.S. EPA Certified for Stationary Emergency Use Only (Tier 2 Nonroad Equivalent Emission Standards)
- Emissions/Fuel StrategyU.S. EPA Certified
- Voltage380 to 13800 Volts
- Frequency60 Hz
- Duty CycleStandby, Mission Critical, Prime, Continuous
- Maximum Rating1500 ekW
- Minimum Rating1230 ekW
| Standby Rating | 1500 ekW |
|---|---|
| Prime Power Rating | 1360 ekW |
| Emissions/Fuel Strategy | U.S. EPA Certified |
| Voltage | 380 to 13800 Volts |
| Frequency | 60 Hz |
| Speed | 1800 rpm |
| Duty Cycle | Standby, Mission Critical, Prime, Continuous |
| Maximum Rating | 1500 ekW |
| Minimum Rating | 1230 ekW |
| Engine Model | 3512C ATAAC, V-12, 4-Stroke Water-Cooled Diesel |
|---|---|
| Bore | 6.69 in |
| Stroke | 7.48 in |
| Displacement | 3161.03 in³ |
| Compression Ratio | 14.7:1 |
| Aspiration | TA |
| Fuel System | Electronic unit injection |
| Governor Type | ADEM™ A3 |
| Length - Minimum | 222.2 in |
|---|---|
| Length - Maximum | 221.2 in |
| Width - Minimum | 89.7 in |
| Width - Maximum | 89.7 in |
| Height - Minimum | 104.4 in |
| Height - Maximum | 104.4 in |
| Dry Weight - Genset (minimum) | 28971 lb |
| Dry Weight - Genset (maximum) | 28971 lb |
Air Inlet System
- Air cleaner; single element canister type with service indicator
Air Inlet
- Air cleaner
Cooling
- Package mounted radiator
Exhaust
- Exhaust flange outlet
Fuel
- Secondary fuel filters
- Primary fuel filter with integral water separator
- Fuel priming pump
Generator
- Matched to the performance and output characteristics of Cat engines
- IP23 Protection
Power Termination
- Busbar
Control Panel
- Cat ECS Genset controller
Control System
- Alarm acknowledge
- Over/under frequency (81 o/u)
- Reverse power (kW) (32)
- Coolant temperature
- kVAr (per phase, average & percent)
- Overcurrent (50 / 51)
- High coolant temperature
- Environmental sealed front face
- Reverse reactive power (kVAr) (32RV)
- kVA (per phase, average & percent)
- Volts (L-L & L-N)
- Generator set packages include Caterpillar's voltage regulator (IVR). IVR includes reactive droop capability, 3-phase voltage sensing, KVAR / PF modes, RFI suppression, min/max exciter. Limiter and exciter diode monitor
- kW-hr (total)
- kW (per phase, average & percent)
- Low oil pressure
- Cat ECS 100
- Digital indication for:
- Engine cool-down timer
- Generator mounted - rear facing
- DC volts
- 1 programmable relay outputs (Form C)
- Overspeed
- kVAr-hr (total)
- 1 programmable digital outputs
- Communications
- Power factor (per phase & average)
- Oil pressure (psi, kPa or bar)
- True RMS AC metering, 3-phase, +/-2% accuracy
- Cat connect
- Customizable screens
- Low coolant temperature
- Over/under voltage (27 / 59)
- 4 programmable relay outputs (Form A)
- Accessory module data link
- Warning/shutdown with common LED indication of shutdowns for:
- Failure to start (overcrank)
- Amps (per phase & average)
- Auto/start/stop control
- Controls:
- Engine cycle crank
- Customer data link (Modbus RTU)
- Programmable protective relaying functions:
- Text alarm/event descriptions
- Emergency stop
- Speed adjust
- Number of I/O varies on options selected
- Lamp test
- RPM
- 24 Volt DC operation
- Emergency stop pushbutton
- Low coolant level
- Frequency (Hz)
- Generator phase sequence
- Load histogram feature
- PLC functionality
Cooling System
- Coolant level sensors (Not included with packages without radiator)
- SCAC
- Radiator fan and fan drive
- Coolant drain line with valve
- Fan and belt guards
- Caterpillar extended life coolant (Not included with packages without radiator, installed SF44CTS<br /> �
Exhaust System
- Flanged faced outlet(s)
- Dry exhaust manifold
Fuel System
- Fuel cooler; not included with packages without radiator
- Secondary fuel filters
- Flexible fuel lines - shipped loose
- Fuel priming pump
Generators and Attachments
- Medium voltage:
- Internal excitation (IE)
- High voltage
- Permanent magnet excitation (PMG)
- Winding temperature detectors
- NEMA Class H insulation system, Class H temperature rise at 40C ambient (125C prime/150C standby)
- Busbar connections, right side extension box, bottom cable entry
- Busbar connections, top center mounted, top cable entry
- Low voltage:
- Class H insulation, Class F temperature rise at 40C ambient (105C prime/130C standby)
- NEMA Class H insulation system, Class H temperature rise at 40C ambient (125C prime / 150C standby)
- NEMA standard hole pattern
- 3 phase brushless, Salient pole
- NEMA standard hole pattern
- 6 Leads<br /> �
- Random wound
- NEMA standard hole pattern
- Form wound
Governing System
- ADEM III
Literature
- Parts book
Lube System
- Gear type lube oil pump
- Oil filter, filler and dipstick
- Fumes disposal
- Lubricating oil
- Oil drain lines and valve
- Integral lube Oil cooler
Mounting System
- Rubber anti-vibration mounts - shipped loose
Starting / Charging System
- 45 Amp Charging alternator
- Battery and battery rack w/cables
- Battery disconnect switch
- 24 Volt electric starting motor
General
- Flywheel and Flywheel housing-SAE No. 00
- SAE standard rotation
- Right hand servicing
- Paint - Caterpillar yellow with high gloss black rails & radiator
-
Download ↓Electric Power Ratings Guide
-
Download ↓3512C, 60 Hz,1500 ekW Standby/MC,1360 ekW Prime, 1230 ekW Cont., U.S. EPA Stationary Emergency. (Tier 2) Spec Sheet
-
Download ↓3512C, 60 Hz, 1360 ekW, Prime-DCP, U.S. EPA Stationary Emergency . (Tier 2) Spec Sheet
Need installed dimensions with enclosure and tank? See Model Configurations
