Diesel generator sets

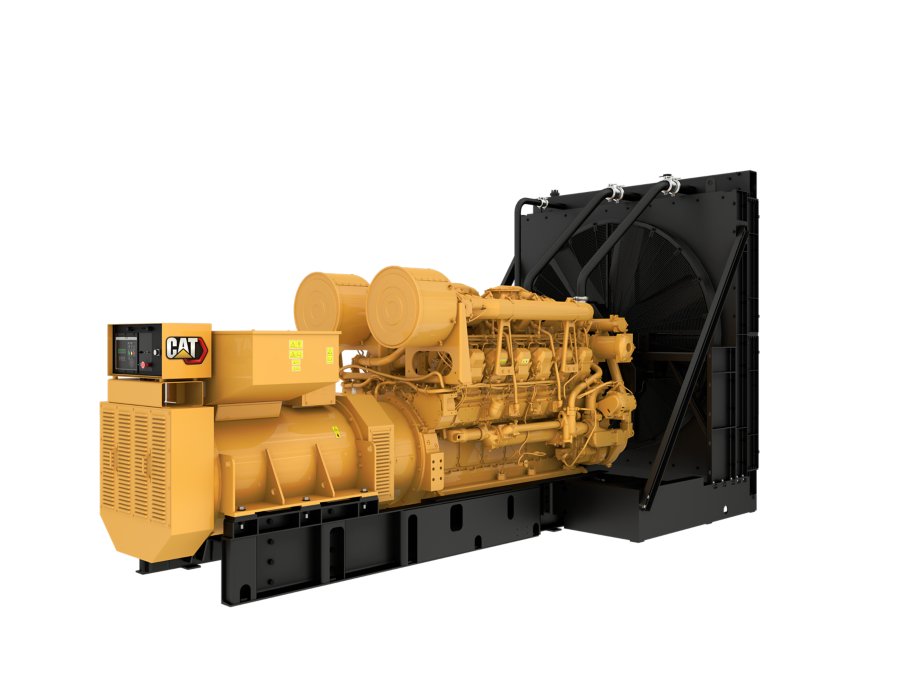

3512B (50 Hz) India Market Only
Producing reliable power from 1500 kVA 50 Hz, our 3512 diesel generator sets are made to meet your mission critical, continuous, standby and prime applications. We've designed each to ISO 8528-5 transient response requirements and to accept 100% rated load in one step. Generator sets offer a low fuel consumption system.
- Maximum Rating1500 kVA
- Minimum Rating1500 kVA
- Emissions/Fuel StrategyLow Fuel Consumption
- VoltageLow (415 Volts), Medium and High Voltage
- Frequency50 Hz
- Duty CycleStandby, Prime
| Maximum Rating | 1500 kVA |
|---|---|
| Minimum Rating | 1500 kVA |
| Emissions/Fuel Strategy | Low Fuel Consumption |
| Voltage | Low (415 Volts), Medium and High Voltage |
| Frequency | 50 Hz |
| Speed | 1500 rpm |
| Duty Cycle | Standby, Prime |
| Engine Model | 3512B TA, V-12, 4-Stroke Water-Cooled Diesel |
|---|---|
| Bore | 6.69 in |
| Stroke | 7.48 in |
| Displacement | 3161.03 in³ |
| Compression Ratio | 14.0:1 |
| Aspiration | TA |
| Fuel System | Electronic Unit Injection |
| Governor Type | ADEM™ A3 |
Cooling System
- Radiator or heat exchanger
Control Panel
- EMCP 4.2
General
- Paint - Caterpillar yellow except rails and radiators gloss black
-
Download ↓Powering your Productivity
-
Download ↓3512B, 50 Hz, 1500 kVA Standby, Low Fuel Consumption Spec Sheet
-
Download ↓Electric Power Ratings Guide
Need installed dimensions with enclosure and tank? See Model Configurations
