Propulsion engines

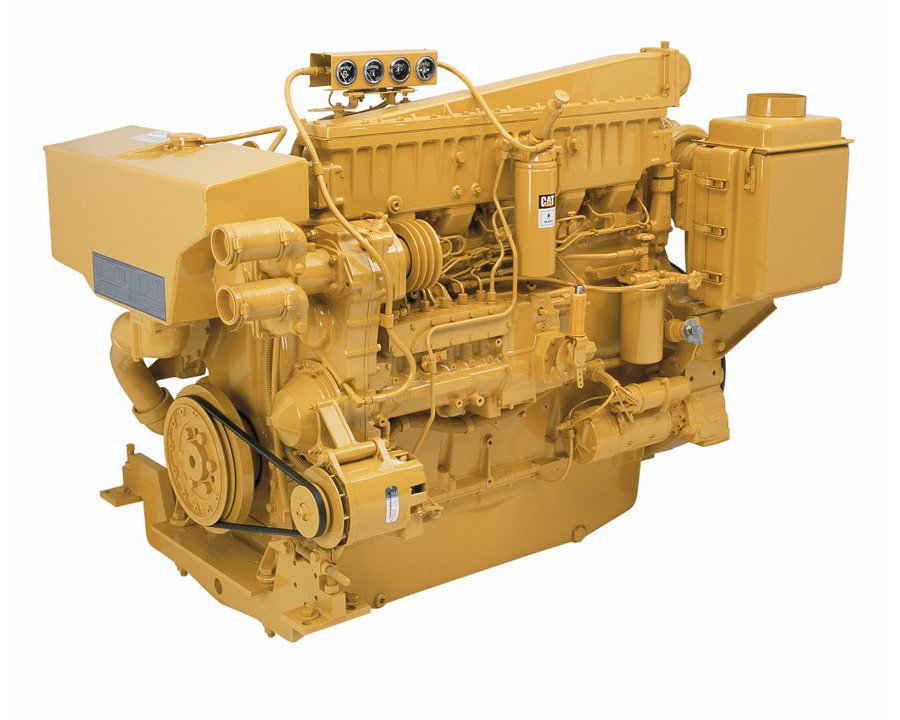

3406C
The mechanically governed 3406C marine propulsion engine is available “A” rating of 365 bhp (272 bkW) and a “B” rating of 400 bhp (298 bkW).
| Power Range | 365-400 bhp (272-298 bkW) |
|---|
| Speed Range | 1800 rpm |
|---|---|
| Emissions | Non-Certified |
| Aspiration | TA |
| Bore | 5.4 in |
| Stroke | 6.4 in |
| Displacement | 893.39 in³ |
| Rotation from Flywheel End | Counterlockwise |
| Configuration | In-line 6, 4-Stroke-Cycle Diesel |
| Refill Capacity | 34.0 L (9.0 gal) |
| Governor | Mechanical |
| Oil Change Interval | 250 hrs |
| Cooling | Heat exchanger or keel-cooled |
| Length | 57.25 in |
|---|---|
| Dry Weight - Approximate | 2921 lb |
| Height | 50.33 in |
| Width | 35.96 in |
Flywheel and Flywheel Housing
- SAE 1 flywheel housing
Cooling System
- Keel cooling with jacket water pump
- Expansion tank & connections
Exhaust System
- Water cooled manifold
- 6 inch Exhaust flange
Air Inlet System
- Turbo and Aftercooler
- Air cleaner
Mounting System
- Front & rear supports
Charging System
- Charging alternator (12 / 24 V selection)
Starting System
- Starting motor (12 / 24 V selection)
-
